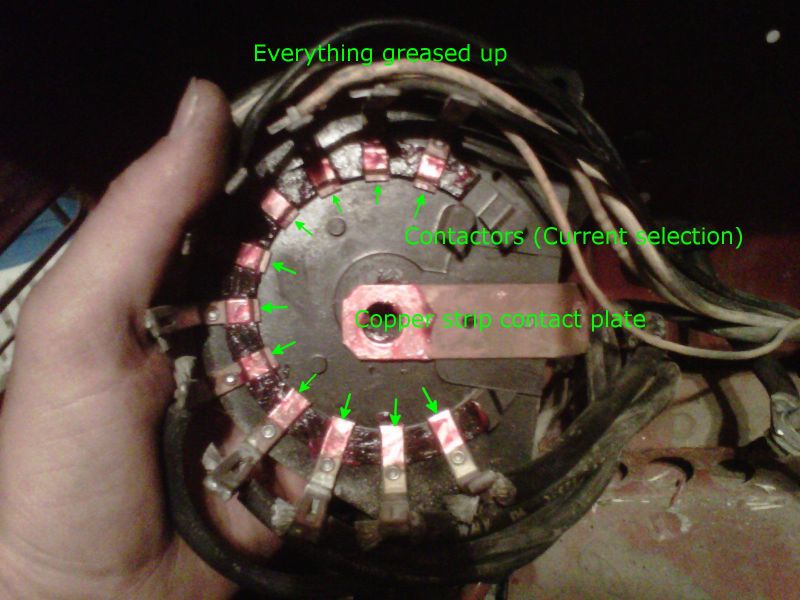

Lincoln 225 Fan Replacement: What You Actually Need to Know
The Lincoln Weldmaste 225 is a solid piece of equipment, but like most transformer-based MIG welders in this price range, the cooling fan is a wear item. It runs constantly when the machine is on, and after years of shop dust, welding spatter, and thermal cycling, the bearings dry out. You'll notice it as a high-pitched whine, then a slow rumble, then nothing at all. When the fan stops, the welder thermally protects itself and shuts down mid-job. That's when you replace it. Step 1: Unplug the welder and wait ten minutes. The capacitors inside hold a charge longer than you'd expect. There's no high-voltage danger from the fan circuit itself, but you're working inside an enclosure with live terminals nearby, so treat it like anything else with a transformer—respectful caution. Step 2: Remove the four screws on the rear cover. The fan lives behind the rear access panel. These are usually Phillips #2 screws, sometimes slightly corroded. If they're seized, a bit of penetrating oil and patience beats force. I've stripped at least two of these over the years by rushing it.
Step 3: Note the fan orientation and disconnect the wires. The fan has two wires, usually red and black, connected to spade terminals. Take a photo before you pull them. The polarity doesn't matter for a universal motor, but if you're like me and prefer things to look correct on reassembly, you'll thank yourself later. Step 4: Remove the two mounting screws holding the fan to the bracket. The fan is typically a square or round unit mounted with two #6 or #8 screws. These are small and tend to fall into the welder when you least expect it. Work slowly, or put a rag in the bottom of the enclosure first. I learned that after a screw landed near the main contactor and took twenty minutes to retrieve with a magnet. Step 5: Compare the old fan with the replacement. This is the step most people skip. Measure the diameter, check the thickness, verify the shaft size, and confirm the voltage and RPM. The original Lincoln fan is typically a 120VAC unit around 110-120mm in diameter, drawing roughly 0.15 to 0.2 amps. Universal replacement fans from suppliers like Grainger, McMaster-Carr, or even Amazon will fit, but the mounting hole pattern often doesn't match exactly.
Step 6: Adapt the mounting if necessary. Most aftermarket fans won't line up perfectly with the original bracket. I use a small piece of aluminum angle or even a folded washer as a shim to bridge the gap. A couple of extra holes drilled in the bracket work too, but only if you're comfortable with a hand drill inside the welder enclosure. One thing to watch: the new fan blade must clear the shroud by at least a few millimeters on all sides. Rubbing is inevitable if you rush this. Step 7: Connect the wires and secure them. Use wire nuts or crimp connectors—never just twist and tape. The vibration from the fan will loosen a bare twist within months. I use small ring terminals on the existing spade connectors and secure the wires with a zip tie so they don't contact any moving parts or hot surfaces. Step 8: Reassemble and test. Put the cover back on, reconnect power, and run the welder without a wire feed for a minute. Listen. A healthy fan sounds like steady air movement, not a rattle or a whine. If it's loud, check the mounting again. Sometimes the bracket flexes slightly and the blade contacts the housing at a certain rotational position.
Get the Full Details
Here's something most guides won't tell you: the original fan on the Lincoln 225 is undersized for sustained high-duty-cycle use. If you weld thick material for long periods, the transformer gets hot even with a new fan. I swapped mine for a slightly larger 140mm 120VAC fan with a higher CFM rating, and the temperature inside the enclosure dropped noticeably. The tradeoff is that it required more fabrication to mount, and the extra airflow can blow dust into places it shouldn't go. Worth it if you run the machine hard. Another detail worth mentioning: the thermal cutoff switch on the Lincoln 225 is typically a non-resettable or manual-reset type located near the transformer. When the fan dies, this switch trips and stays tripped. After you replace the fan, you'll need to locate it—usually a small white or black button on the transformer assembly—and press it to restore operation. If the welder still won't start after the fan is running, this is the first thing to check. The whole process takes about 30 to 45 minutes if you're methodical. The hardest part isn't the replacement itself—it's sourcing the right fan. Lincoln doesn't always list the fan as a standalone spare part in their schematics, so you're often working from a photo and a measuring tape. Write down the specs from the old fan before you remove it, or photograph the nameplate on the fan motor. That label usually has the voltage, RPM, frame size, and sometimes even the manufacturer part number, which makes finding a direct replacement much easier.
If you're dealing with a fan that's still spinning but weak, cleaning it might buy you some time. A can of compressed air through the vent openings and a careful wipe of the blades with a damp cloth can restore a significant portion of lost airflow. But if the bearing play is visible or the noise is changing pitch, cleaning is a delay, not a fix. The bearings on these small shaded-pole fans don't rebuild themselves.
