Electronic spectra is just a record of which wavelengths of light a molecule absorbs or emits when its electrons move between energy levels. You put a sample in a spectrophotometer, scan it from roughly 190 nm to 900 nm, and whatever dips show up in the trace tell you about the electronic transitions happening inside. It sounds simple. It is, mostly, until it isn't. The basic setup is a light source, a monochromator or filter, a cuvette holder, and a detector. Modern instruments handle this automatically. What most people gloss over is that the instrument is only as good as the sample prep and the conditions around it. Solvent choice alone can shift an absorption maximum by 10 to 30 nm depending on polarity and hydrogen bonding. If you're comparing spectra from different papers and they don't line up, check the solvent first before you assume anything is wrong with your sample.

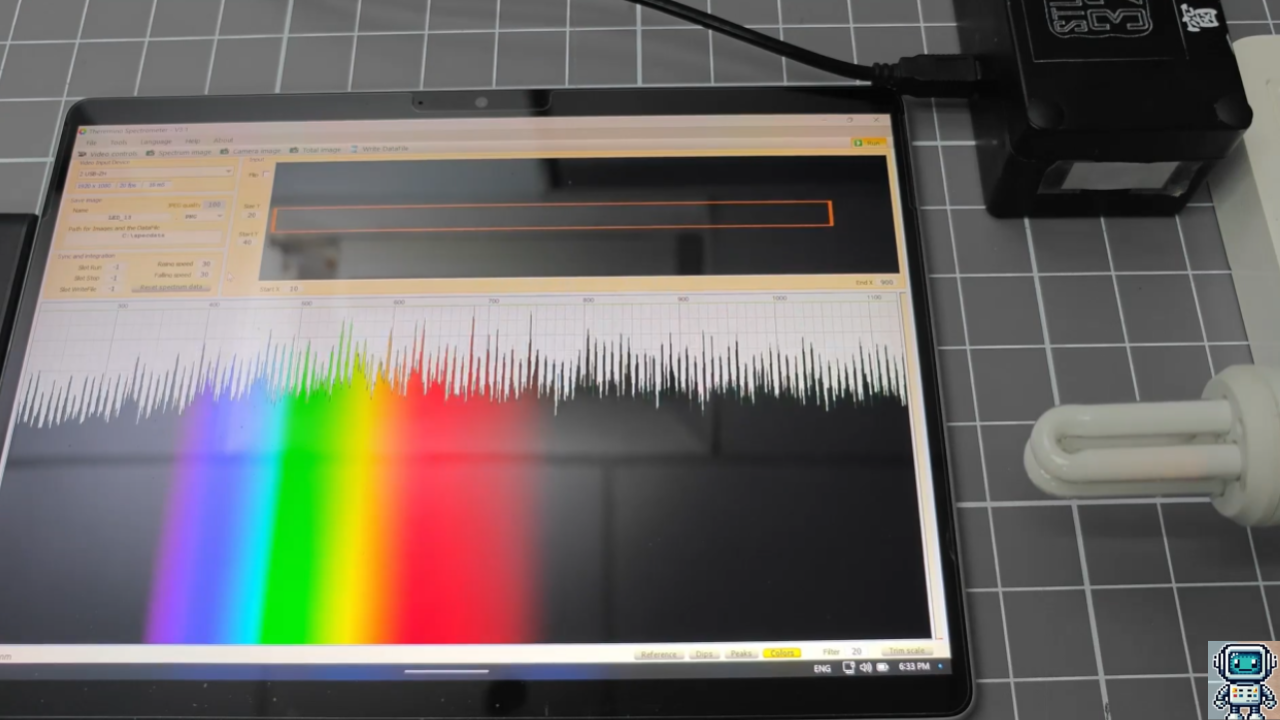

What Is Electronic Spectra The Light Signature That Unlocks The Invisible World

That phrase captures the idea well enough. Every molecule has a unique pattern of electronic transitions, and those patterns show up as structured peaks or broad bands in a spectrum. You read those peaks to figure out concentration, to identify functional groups, to track reaction progress, or to estimate band gaps in semiconductors. The "unlocking" part is really just calibration and interpretation. A spectrum doesn't hand you answers on a platter. You have to know what you're looking at and what can go wrong. Here is how I actually run a routine UV-Vis measurement. Zero the instrument with a matched solvent blank. Make sure your sample absorbance falls between 0.1 and 1.0 AU across the region of interest. Anything above 2 AU is usually dominated by stray light and noise, so dilute it. Use quartz cuvettes for anything below 350 nm. Plastic cuvettes are fine for visible work but they absorb strongly in the deep UV. Clean the cuvette faces with lint-free wipes and check for scratches. A single scratch can scatter light enough to create fake peaks or distort baselines. Scan at 1 nm or 0.5 nm step size for decent resolution. Take a second scan and overlay it to confirm reproducibility. If the baseline wanders between scans, something is wrong with the cell positioning or the solvent is evaporating. I ran into a specific issue last year with a copper complex that showed an unusual shoulder around 680 nm. The literature value for that compound listed a clean d-d band near 640 nm. I spent two days troubleshooting the instrument, swapping lamps, checking alignment, and running standards. Nothing fixed the shift. The problem turned out to be solvent coordination. The complex was picking up chloroform molecules in the outer coordination sphere, which weakened the crystal field splitting and pushed the absorption to longer wavelengths. Switching to acetonitrile as the solvent gave me a sharp band at 638 nm, right where the literature said it should be. That taught me to never trust a published spectrum without checking the solvent and concentration conditions.

Common Pitfalls and Counter-Intuitive Details

Absorbance does not scale linearly with concentration forever. Beer's Law breaks down above roughly 0.01 M for most species because intermolecular interactions start to alter the electronic environment. You will see curvature in your calibration plot well before the absorbance hits 2.0. Always run a proper calibration curve instead of assuming a single-point calculation is sufficient. Fluorescent samples ruin UV-Vis measurements. If your compound emits light in the detection path, the detector registers more signal than it should, which compresses the apparent absorbance and creates artificial dips in the spectrum. A fluorescein solution at low concentration can look nearly transparent in a standard absorption scan even though it is a strong absorber. The workaround is to use a front-face geometry cuvette or add a quenching agent. In my lab, we usually switch to a integrating sphere accessory when dealing with highly fluorescent samples, which captures all transmitted and emitted light separately. Broad bands are not always a sign of poor quality data. Charge transfer bands and d-d transitions in transition metal complexes are inherently broad because they couple to vibrational modes and solvent fluctuations. A sharp peak in the visible region is actually more suspicious than a broad one. It usually means you are looking at a pi-pi* transition in a rigid conjugated system, not something exotic.

Neglecting the instrumental bandwidth is a quiet source of error. A spectrophotometer with a 2 nm bandwidth will smear together two closely spaced peaks that a 0.5 nm instrument would resolve. If you are trying to distinguish between two similar compounds or resolve vibronic fine structure, check the spectral bandwidth specification before you trust the peak positions. Many modern instruments let you select bandwidth, but the default setting is often too wide for work.

When Electronic Spectra Fail You

There are cases where UV-Vis simply cannot give you useful information. Turbid or scattering samples, like colloidal suspensions or whole cell lysates, produce baseline drift that mimics absorption. The scattered light is lost from the detector path and registered as absorbance, but it has nothing to do with electronic transitions. Diffuse reflectance spectroscopy or integrating sphere measurements are the alternatives, though they require different calibration procedures. Highly absorbing samples in standard 1 cm cuvettes are another dead end. If your material has an absorbance above 4 AU even at the lowest practical concentration, you are measuring essentially zero transmitted light and the detector noise dominates. Thin film measurements, attenuated total reflectance accessories, or serial dilution are the options. Each introduces its own artifacts that you have to correct for. Overlapping spectra from multiple components in a mixture are technically resolvable through multivariate methods like principal component regression or partial least squares, but those techniques require a good training set of pure component spectra and careful validation. Without that, you are guessing. A simple and honest approach is to separate the mixture chromatographically and scan the fractions individually.

Practical Workflow Summary

Start with a clean instrument and a proper blank. Match your cuvette material to your spectral range. Keep absorbance values in the 0.1 to 1.0 range. Watch for fluorescence interference. Verify solvent effects against literature. Run replicate scans. Check your calibration linearity. Accept that broad bands are normal for many transition metal and charge-transfer systems. Know when to switch techniques instead of forcing data that your instrument cannot reliably produce. The technique is accessible enough that anyone can run a spectrum in under ten minutes. Interpreting it correctly takes practice and a willingness to question every result rather than accepting the output at face value. The spectra are honest. Most of the problems come from assumptions made before the scan even starts.
