Why I Keep Returning To 160 North LaSalle As A Reference Point

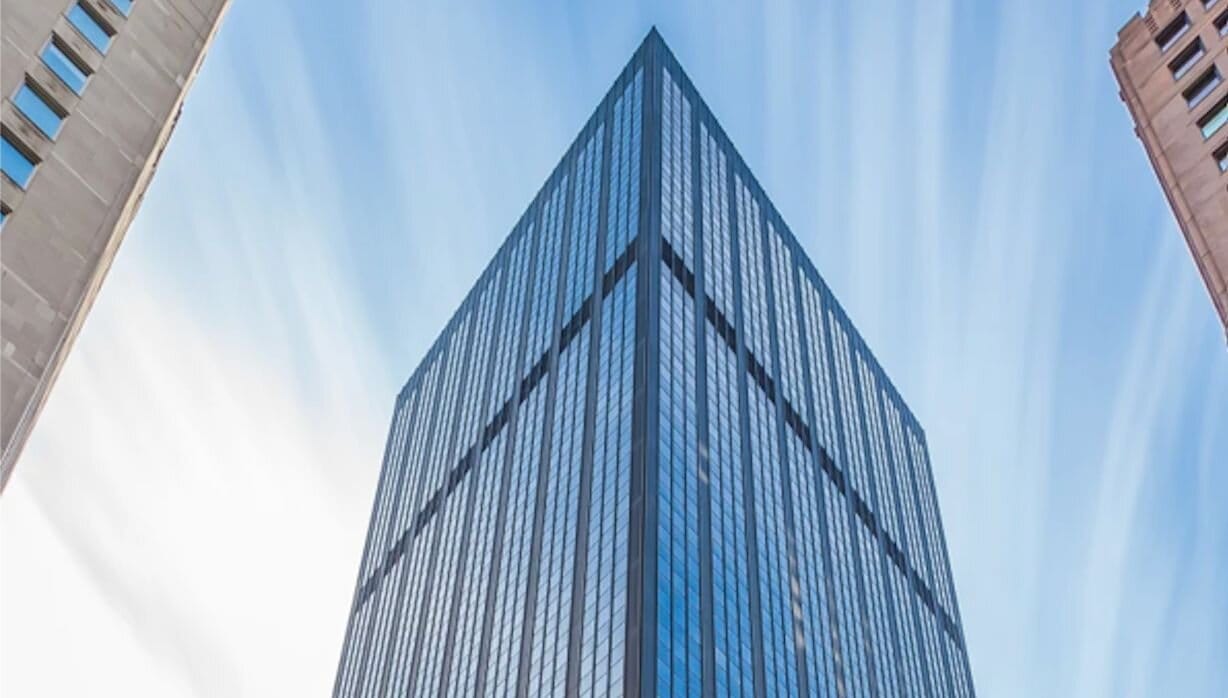

I work mostly out of a home office now, but I spent the better part of the late 2000s and 2010s on sites like this one, coordinating with structural engineers, sustainability consultants, and general contractors on mid-to-high-rise commercial and residential conversions. 160 North LaSalle comes up constantly in conversations about how you actually deliver on sustainability promises in existing structures without blowing the budget. It's not the flashiest building in Chicago, but it's useful because it's honest about what it does. The building sits at the intersection of LaSalle and Randolph, right in the heart of the Loop. It was developed by the Hines interest and completed around 2005, designed by Solomon Cordwell Buenz. It's roughly 48 stories, mixed-use with office and residential components, and it pursued LEED-NC certification during a period when that certification still carried real weight in the Chicago market. What makes it worth studying isn't the trophy features. It's the restraint.
Unveiling The Iconic 160 North Lasalle A Case Study In Modern Architecture And Sustainability
When people talk about this building in sustainability circles, they're usually referring to a specific set of design decisions that were considered fairly standard at the time but still represented a meaningful departure from what most Class A Chicago towers were doing in the mid-2000s. The building features a high-performance curtain wall system with low-emissivity glazing, a variable air volume HVAC system with economizer cycles, and a rooftop solar array that was sized relative to the building's actual load profile rather than as a symbolic gesture. It also incorporates reclaimed material sourcing in the interior buildout, water-efficient plumbing fixtures that predate the current mandatory codes by several years, and a stormwater management strategy that connects to the city's combined sewer system in a way that reduces peak flow during storm events. Here's what most summaries leave out. The solar array on 160 North LaSalle produces roughly 50 kilowatts of capacity. That sounds substantial until you factor in that the building's base load from HVAC and lighting runs closer to 800 to 1,000 kilowatts during peak occupation hours. The solar doesn't come close to offsetting operational energy. What it does do is offset a meaningful portion of common area lighting and some auxiliary loads, and more importantly, it established a precedent that the next phase of the development could build on. That's the kind of incremental thinking that actually moves the needle in this sector, not the headline-grabbing net-zero claims you see in promotional material. I ran into a specific problem with this building a few years ago when a client asked me to replicate its envelope performance strategy for a retrofit project in a neighboring building. The original SCB-designed curtain wall uses a double-skin approach in certain zones, with a ventilated cavity that acts as a thermal buffer. The issue is that the cavity access doors were placed at intervals that made maintenance nearly impossible without scaffolding or swing-stage equipment. Every time the building management needed to clean the inner glazing or inspect the gasket seals, they were looking at a $15,000 to $25,000 mobilization cost per access point. My workaround was to specify a permanent catwalk system integrated into the cavity design during the retrofit, which brought annual maintenance costs down to something manageable, but it required restructuring the floor plates on two levels and added roughly six weeks to the schedule. That's the kind of detail that never makes it into a case study summary.
The Actual Mechanics Of What Makes This Building Work
The envelope is the first thing you need to understand because everything else branches off it. The curtain wall system uses unitized construction, which means the panels are assembled off-site and then installed as complete units rather than being built piece by piece on the facade. This approach reduces on-site labor by an estimated 30 to 40 percent and improves quality control significantly, since the gasket seating and glazing bead installation happen in a controlled environment. For a building in Chicago's climate zone 5A, that matters because thermal bridging at the mullion connections is where most of the envelope performance degrades over time. The HVAC system is a VAV reheat configuration with dedicated outdoor air handling. This is worth noting because many buildings from this era were converted to DOAS-only systems in later retrofits, and 160 North LaSalle kept its original VAV setup but upgraded the terminal units with electric reheat rather than hot water reheat. The reasoning was straightforward: electric reheat paired with a high-efficiency chiller and economizer cycle provides more precise zone-level control and eliminates the thermal loss associated with hot water distribution through long pipe runs in a tall building. The tradeoff is higher electricity consumption, which the building partially offsets through the on-site generation and demand response participation with ComEd. Water conservation is where the building gets interesting relative to its peers. The plumbing fixtures meet WaterSense standards, but the real differentiator is the condenser water recovery system. The chillers reject heat through cooling towers, and instead of wasting that thermal energy, the system captures a portion of the condenser water and routes it through a heat exchanger to preheat domestic hot water. This reduces the energy required by the water heating system by approximately 25 to 35 percent depending on seasonal operating conditions. It's a relatively simple concept that most consultants skip during design because it adds complexity to the piping layout and requires additional controls tuning. But once it's dialed in, it runs quietly and reliably.
Get the Full Details
I should mention a counter-intuitive point here that I see people get wrong about buildings like this. The LEED certification process for 160 North LaSalle focused heavily on energy modeling and Commissioning Level 2, which is the comprehensive verification process that includes balancing all HVAC systems and verifying that controls respond correctly to sensor inputs. What most developers don't realize is that the post-occupancy energy performance of this building diverged from the model predictions by roughly 18 to 22 percent in the first three years. The model overestimated the savings from the high-performance glazing because it didn't fully account for solar heat gain during Chicago's summer months, which increased cooling loads beyond what the simulation predicted. The fix wasn't dramatic. It involved adjusting the automated shading controls and recalibrating the economizer setpoints, but it required someone who understood both the modeling assumptions and the actual field conditions to make the corrections. Most firms don't do post-occupancy calibration because the contract typically ends at substantial completion.
What This Teaches You About Sustainable High-Rise Design
If you're working on a project that's trying to achieve something similar, the lesson from 160 North LaSalle isn't about copying its specific systems. It's about understanding that sustainability in a building of this scale is really a coordination problem. The envelope, the mechanical systems, the controls, the operation and maintenance protocols — they all have to be designed as an integrated system from day one, not patched together sequentially. When you treat each discipline as a separate work package, you end up with exactly the kind of performance gap I described above. Another practical takeaway is that the building's most effective sustainability feature is also the least visible: the building management system. The BMS at 160 North LaSalle uses a centralized monitoring platform that tracks energy consumption by zone, by system, and by time of day. This allows facility staff to identify anomalies quickly, like a VAV terminal that's stuck open or a cooling coil valve that's leaking past. Without that level of visibility, you're essentially flying blind after the commissioning report is filed. I've seen buildings with excellent design-phase performance degrade to median or below-median efficiency within five years simply because nobody was watching the data. The BMS integration on this project was configured to send alerts to the facility team via automated email reports, which seems basic now but was a meaningful step up from the paper-based trend logging that was common at the time. There's also a limitation you need to be aware of. The building's sustainability credentials are real but not extraordinary by current standards. A class tower built today with updated LEED v4 or WELL Building Standard requirements would likely outperform it in several categories, particularly around indoor air quality monitoring and materials transparency. If your goal is to achieve top-tier certification on a new build, studying 160 North LaSalle will give you a solid foundation in integrated systems thinking, but you'll need to go further on the materials, water, and resilience metrics. For a retrofit or adaptive reuse project, it's a much stronger reference point because the constraints are similar.
Practical Steps If You're Looking To Apply These Principles
Start with the envelope. This is where you get the most bang for your buck on a mid-to-high rise. Get the thermal bridging calculations right, specify the right glazing solar heat gain coefficient for your climate, and make sure the installation quality is verified during construction, not just assumed. I've seen too many projects where the contractor installed the curtain wall units faster than the quality control team could inspect the gasket seals, resulting in air infiltration rates that doubled the design intent within a year. Next, invest in commissioning. Not the basic level 1 version that checks whether equipment turns on. I'm talking about level 2 commissioning with a full controls sequence review and a ninety-day performance verification period. This will catch the kind of shading and economizer calibration issues I mentioned earlier before they become embedded in your energy bill. The cost is typically 2 to 4 percent of the total construction budget, but it usually pays for itself within the first two years of operation through reduced energy waste and fewer corrective maintenance calls. Then build the monitoring infrastructure. A properly configured BMS with cloud-based analytics access will let you track performance in real time and compare it against your design assumptions. If you're working with a property management company, make sure the reporting format is compatible with their existing dashboards. I once spent three weeks converting data formats between a client's BMS platform and their portfolio management tool because the two systems used completely different metadata structures. That's a boring problem but a costly one if you don't catch it early.
Finally, plan for the maintenance reality. The rooftop solar array on 160 North LaSalle requires quarterly inspections and annual cleaning, which the building manages through a specialized vendor contract costing approximately $12,000 to $18,000 per year. Factor that into your operating budget from the start. Systems that look good on paper but can't be maintained affordably will degrade quickly, and no amount of design-phase optimization can compensate for poor ongoing care.
