Measuring Up From The Ground

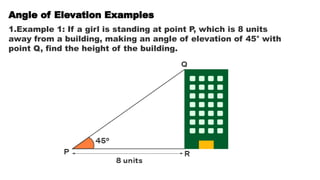

The angle of elevation is simply the angle you measure from a horizontal line up to the point you're looking at. That's it. In practice, you usually need it when you're trying to figure out how tall something is without climbing it, or when you're working out the trajectory of a projectile, or when you're setting up a camera rig on a slope. I've spent years doing this in surveying work and construction layout, and the concept itself is trivial. What makes it annoying is the stuff that goes wrong in the field. Let me walk through how you actually use it, not just the textbook definition. Pick a spot on level ground where you can see the top of your target object clearly. Measure the horizontal distance from that spot to the base of the object. Look up at the top and record the angle. Then apply basic trig: the height above your instrument level equals the distance multiplied by the tangent of that angle. Add your own eye-level height if you want the total. For example, if you stand 30 meters from a wall and the angle to the top is 40 degrees, the wall rises roughly 25.2 meters above your instrument height. The tangent of 40 is about 0.839, times 30 gives you 25.17.
Unveiling The Angle Of Elevation A Comprehensive Guide
There are a few tools people actually use for this. A simple protractor and plumb line will give you rough results good enough for backyard projects, but it won't get you into the sub-degree range. A handheld digital inclinometer or a smartphone app using the accelerometer works better for casual use, though they drift over time and need recalibration. The serious option is a theodolite or total station, which measures both horizontal and vertical angles with precision down to a few arc-seconds. Those cost thousands, so most people don't carry one around unless they're professionals. The real problem comes when your measurement point isn't on level ground. I ran into this on a job last year where I needed the height of a communication tower on a steep hillside. The base of the tower was maybe 8 meters above where I was standing, and the ground sloped at about 15 degrees. A single angle measurement from my position would have given me a wildly incorrect result because the horizontal distance I thought I was measuring wasn't actually horizontal. The workaround was straightforward: I took a second measurement from a different position further up the slope, then solved the two-angle intersection problem using the law of sines. Two angles, known baseline distance between the two measurement points, and you can triangulate the height regardless of terrain. It added maybe 20 minutes to the job but saved me from reporting a number that would have been off by several meters. Another thing people miss is that the angle of elevation assumes you're measuring to a single visible point. When you're dealing with something like a distant mountain peak that's partially obscured by trees, or a building where the "top" is ambiguous because of a stepped roofline, the angle becomes fuzzy. In those cases, taking multiple readings and averaging them helps, but it's better to pick the most clearly defined reference point and stick with it. Consistency matters more than precision here.
There are also atmospheric effects you should know about if you're working at long distances. Temperature gradients near the ground can bend light slightly, a phenomenon called refraction. Over distances greater than a couple hundred meters, this can shift your apparent angle by a fraction of a degree. It's negligible for most DIY applications, but in surveying work over several kilometers, it matters. The standard fix is to measure at a time of day when the air is more stable, usually mid-morning or early evening when temperature differences between the ground and the air are minimized. If you need a practical tool to make this easier, there are a few free apps that calculate height from angle and distance. Search for "angle of elevation calculator" and you'll find plenty. Some even let you input multiple measurements and solve for the result automatically. For offline fieldwork without cell service, a basic scientific calculator and a notebook are usually enough. Write down every number you measure, including the instrument height, because forgetting that detail is the most common mistake I see. The angle of elevation method has hard limits too. It breaks down completely when you can't see the base of the object to measure horizontal distance, or when the target is so far away that the angle becomes too small to measure accurately. Beyond 500 meters with a cheap inclinometer, your error margin can easily exceed a meter. In those situations, you're better off using GPS-based surveying equipment or laser rangefinders with built-in angle sensors. Those combine distance and angle in one device and cut the error significantly.
Get the Full Details
One more thing worth noting: when you're working with steep angles close to 90 degrees, small errors in your distance measurement create huge errors in your height calculation. The tangent function shoots toward infinity as the angle approaches 90, so the math amplifies any mistake you make. If you're measuring something nearly vertical and you're very close to it, move back. Getting a 60-degree angle instead of 80 degrees with the same distance uncertainty will give you a dramatically better result.
