Reading IR Spectra For Ether Identification

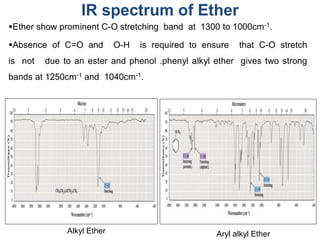

IR spectroscopy is one of those techniques that people oversell and then undersell. For ethers specifically, the spectrum is deceptively quiet. You're looking at C-O stretches in the 1050-1150 cm¹ range, and that's pretty much it. No hydroxyl peak to get distracted by. No carbonyl to hide behind. Just a stubborn stretch that sometimes shows up and sometimes doesn't depending on how symmetric your molecule is. The first thing you need to understand is that not all C-O stretches are created equal. A diaryl ether like diphenyl ether will show a strong absorption around 1240 cm¹ because the aromatic ring couples with the C-O vibration. An aliphatic ether like diethyl ether puts its main band closer to 1120 cm¹. If you treat every C-O peak as the same thing, you'll misidentify half your samples. I've seen people report ethyl acetate as an ether because they weren't paying attention to the carbonyl at 1740 cm¹ sitting right next door. Here's the practical part. When you run an ether sample, your first step should always be checking for the absence of an O-H stretch around 3200-3600 cm¹. That's how you rule out alcohols, which is the most common confusion. Then move to the fingerprint region. Look for that C-O-C asymmetric stretch. It should be medium to strong. If it's weak or absent, your ether might be symmetric — and I mean genuinely symmetric, like di-tert-butyl ether where both sides are identical. In those cases, the dipole change during vibration is minimal, and the peak can be nearly invisible. That's not a bad spectrum. That's just symmetry doing its thing.

I spent three days once trying to confirm whether a product was an ether or just contaminated starting material. The C-O stretch was there but faint, around 1090 cm¹, and the rest of the spectrum looked messy. What I missed initially was that the solvent residue from the reaction — dichloromethane — had its own absorptions near 1260 and 730 cm¹ that were cluttering the fingerprint region. Once I properly dried the sample under vacuum overnight and reran it, the C-O peak sharpened up and the diagnostic peaks became obvious. The workaround was boring but effective: longer drying time and a fresh KBr pellet instead of a Neat film. Neat films of low-volatility ethers can have uneven thickness that distorts peak intensities enough to make interpretation unreliable. One counter-intuitive thing about ether IR spectra that beginners consistently miss: the presence of a nearby aromatic ring or carbonyl group can shift the C-O stretch by 50-100 cm¹. A benzyl ether won't absorb at the same frequency as a simple alkyl ether. The electronic environment matters more than the functional group label. Similarly, cyclic ethers like tetrahydrofuran show their C-O stretch around 1070 cm¹, which overlaps heavily with aliphatic ethers. Ring strain shifts things, but not in a way that's easy to quantify without reference data. Another pitfall is assuming that a clean spectrum without OH or C=O peaks automatically means you have an ether. Alkanes also lack those peaks. You need that C-O stretch to be present and reasonably intense to make the call. If the fingerprint region is mostly empty except for C-H bending around 1460 and 1380 cm¹, you probably have a hydrocarbon, not an ether. The C-O stretch is your anchor. Without it, you're guessing.

Quantitatively speaking, a good quality FTIR instrument with a DTGS detector and 16 scans at 4 cm¹ resolution will give you a spectrum useful for ether identification in about 2-3 minutes. If you're using an older dispersive instrument or a cheap handheld unit, expect longer acquisition times and noisier baseline, especially below 1500 cm¹ where the C-O stretches live. Baseline drift in that region can make a real peak look like noise or vice versa. Always check your baseline correction settings before declaring a peak absent. There are scenarios where IR simply won't cut it for ether identification. If you're dealing with a mixture — say, an ether dissolved in an unknown solvent or a reaction crude — the overlapping peaks make assignment nearly impossible without separation first. Gas chromatography coupled with IR or mass spectrometry is the standard workaround. Also, ethers with very similar structures, like isomers of CHO (diethyl ether versus methyl propyl ether), can have nearly identical C-O stretch positions. In those cases, you'd need NMR to distinguish them conclusively. IR tells you an ether is present. It doesn't always tell you which ether. The takeaway is practical: learn to read the fingerprint region properly, know what symmetrical and asymmetrical C-O stretches look like, and don't trust a single peak in isolation. Cross-reference with the absence of competing functional groups. Run a proper blank if your sample prep might introduce artifacts. And when the spectrum is ambiguous, move to a complementary technique rather than forcing an interpretation that isn't there.
