The Practical Side of Adjacent Supplementary Angles and Structural Supports

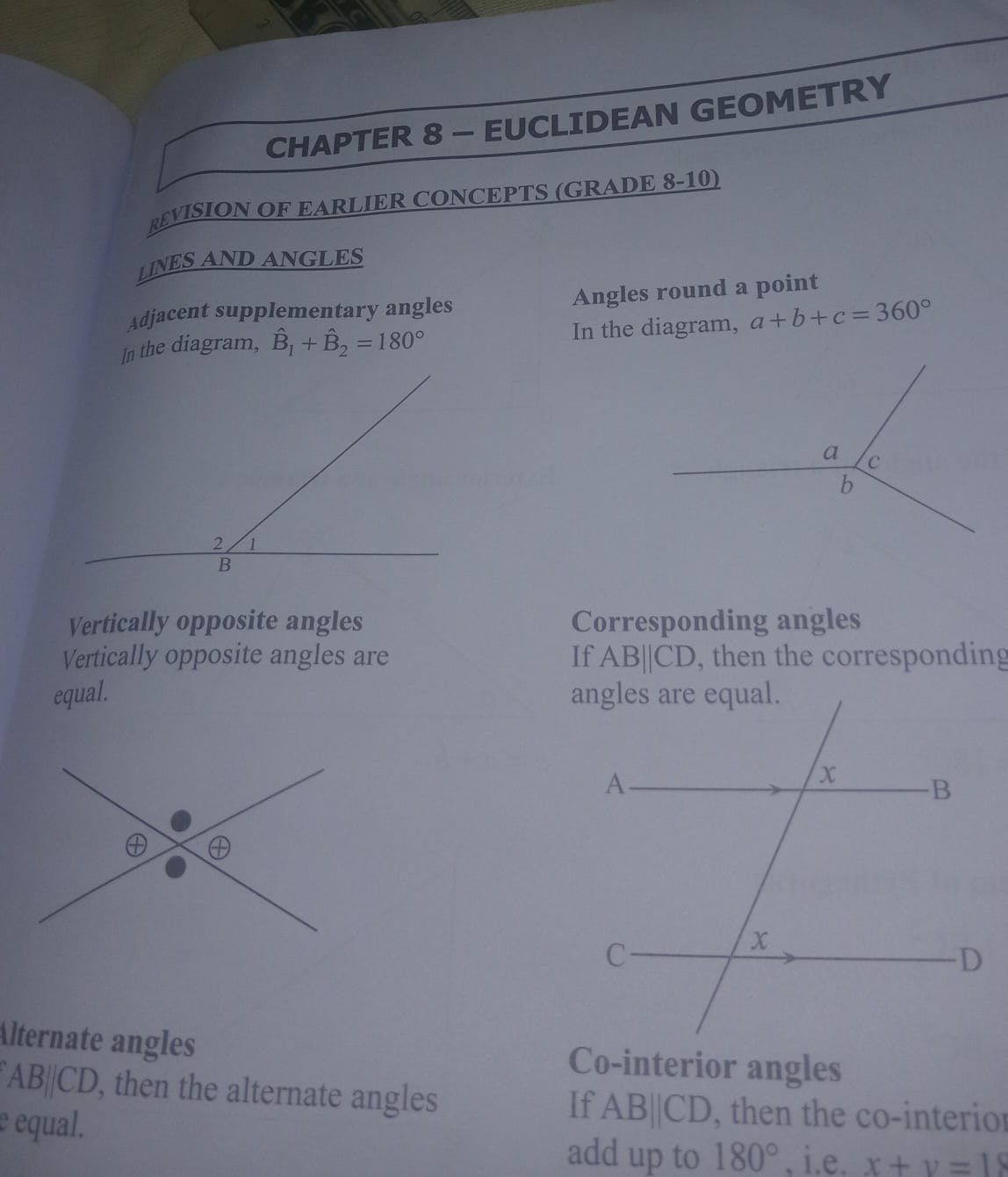

Two angles are adjacent supplementary when they share a vertex and a common side, and their measures add up to 180 degrees. The non-common sides form a straight line, which is what makes them a linear pair. This is geometry 101, but it's also where a lot of practical mistakes happen when you move from paper to actual construction or CAD work. I'm going to walk through how this relationship works in real applications, where it trips people up, and what I do when the textbook model doesn't match the job site. The calculation itself is trivial: if angle A and angle B are adjacent supplementary, then angle B equals 180 minus angle A. The useful part is knowing which angles in a real structure are actually forming that relationship. In framing, bracing, and mechanical design, adjacent supplementary angles show up everywhere you have a member meeting a straight edge or another member along a continuous plane. A rafter meeting a top plate, a gusset plate connecting two beams, a bracket bolted flush against a wall—these are all instances where the supplementary relationship determines whether the fit is correct. I ran into a situation last year where a fabricator sent me a set of angle iron supports for a conveyor frame. The drawing specified a 47-degree cut on one side of a bracket meant to sit against a vertical column. The adjacent angle on the inside of the bracket should have been 133 degrees. The fabricator cut it at 130 instead, probably rounding or using a bevel gauge set by eye rather than a protractor or CNC program. When I tried to fit the bracket, there was a visible gap along the column face. The support looked fine from the front but wasn't making full contact. A 3-degree error in an adjacent supplementary pair might sound small, but in a load-bearing connection that gap translates to uneven stress distribution and a joint that will loosen over time. I sent the brackets back and specified that all supplementary angles must be verified with a digital angle finder before assembly.
How to Identify the Right Angle Pairs in a Diagram or Structure
The first thing to check is whether the two angles actually share a side. A lot of people see two angles sitting next to each other in a diagram and assume they're adjacent. They might add to 180, but if they don't share a common ray, they're not adjacent supplementary—they're just supplementary. This distinction matters when you're solving for unknown angles in a complex truss or a multi-member joint. Non-adjacent supplementary angles don't guarantee a straight line between the outer rays, so you can't use the linear pair property to establish collinearity. When I'm working from a technical drawing, I look for the straight-line indicators first. A solid line with no bend means 180 degrees of continuous plane. Any angles on either side of a point along that line are your adjacent supplementary pairs. If the drawing uses a dashed centerline or a hidden edge, be careful—those lines don't necessarily represent physical planes where angles interact. I've seen blueprints where a supposed linear pair was drawn across a hidden extension line that didn't actually exist on the physical part. Measuring from that false line gave angles that looked correct on paper but assembled completely wrong.
Applications in Structural and Mechanical Design
Adjacent supplementary angles are the basis for calculating bearing surfaces on angle brackets, determining the effective reach of a gusset plate, and setting miter cuts in trim and ductwork. In each case, you're using the supplementary relationship to ensure that two members meet at the correct angle and that the contact surface is maximized. A bracket cut at the wrong supplementary angle won't sit flush, which reduces the effective weld or bolt shear area and creates a stress concentration at the corner. I design a lot of support structures for equipment mounts, and the supplementary angle relationship is how I verify that a diagonal brace meets its perpendicular support correctly. If the brace comes in at 38 degrees from horizontal, the supplementary angle at the junction is 142 degrees. That 142-degree angle determines the size of the gusset plate I need and how many fasteners go on each side of the joint. Getting this wrong means either an undersized plate that will fail under load or an oversized one that adds unnecessary weight and cost. The math is simple, but the consequences of a calculation error are measurable in material waste and structural risk. Another practical use is in sheet metal fabrication. When you're bending a flat piece around a corner, the bend angle and the supplementary angle on the inside of the bend determine how much material you need and whether the flanges will lay flat against each other. I had a sheet metal job where the supplier quoted a 90-degree bend, but the adjacent supplementary angle on the flange was 88 degrees due to springback. The two flanges didn't meet flush and left a 2-millimeter gap at the seam. We compensated by adjusting the bend angle to 92 degrees instead, which accounted for the springback and gave us a tight seal after the material relaxed. That kind of adjustment only comes from understanding how the supplementary relationship interacts with material behavior.
Get the Full Details
Limitations and When the Model Fails
The adjacent supplementary angle model assumes planar geometry and rigid bodies. In the real world, neither condition always holds. Wood moves with humidity. Steel expands and contracts with temperature. Composite materials have different coefficients of thermal expansion that can shift angles after assembly. If you're designing for a controlled indoor environment, these effects are negligible. If the structure will see outdoor temperature swings or fluctuating humidity, the angles you calculated on paper won't match the assembled joint. Another limitation is 3D geometry. Adjacent supplementary angles work cleanly in two dimensions, but in three dimensions you can have skew lines and non-coplanar surfaces where the concept breaks down. I've encountered this in pipe rack design where a brace intersects a beam at an angle that isn't in the same plane as the beam's top flange. The angle you measure on a 2D drawing doesn't translate directly to the 3D intersection, and trying to force the supplementary relationship into that situation gives you a fit that looks right on paper but doesn't assemble. In those cases, I use 3D modeling software to generate the true intersection angles rather than relying on 2D projections. There's also the issue of measurement error accumulation. When you're working with multiple adjacent supplementary pairs in a series—say, a row of support brackets along a beam—any error in one angle propagates to the next. A 1-degree error per bracket over ten brackets gives you a 10-degree cumulative deviation. I've seen this happen with pre-drilled hole patterns where the supplementary angles were calculated individually rather than checked as a chain. The last bracket was off by enough that the bolt wouldn't thread through without forcing it. The workaround was to measure the cumulative angle from the first bracket to the last and adjust the intermediate angles to compensate.
Verification Methods That Actually Work
A digital angle finder is the fastest way to verify supplementary angle pairs on a job site. You place one arm against each side of the angle, read the measurement, and confirm that the two angles add to 180. Some models have a complementary mode that does the addition for you and flags any deviation. I keep one in my toolbox and use it daily. It's faster and more accurate than trying to calculate from a tape measure and a protractor, especially on awkwardly positioned joints. For precision work where a digital angle finder isn't available, I use the 3-4-5 triangle method to establish a known right angle, then measure from there. If you need to verify that two angles are truly supplementary, you can lay out a straight reference edge with a taut string or a straightedge, mark the vertex point, and measure both angles from the same baseline. If they don't add to 180, you've found your error. This method takes longer than a digital finder but doesn't depend on battery power or calibration.
Resources and Further Reading
I keep a copy of the Machinery's Handbook on my desk for quick reference on standard bracket dimensions and allowable angle tolerances. For anyone working with structural steel connections, the AISC Steel Construction Manual has detailed tables for gusset plate design and bolted connection geometry that rely heavily on supplementary angle calculations. Online, the Engineering Toolbox has freely accessible calculators for beam angle connections and truss geometry that walk through the supplementary angle relationships step by step. Those resources are useful for verifying your work or catching errors before they become costly mistakes. If you're learning this material for the first time, start with simple linear pair problems on paper until the relationship feels automatic. Then move to real-world drawings and try to identify every adjacent supplementary pair before you calculate anything. The habit of checking for shared vertices and common sides first will save you from a lot of avoidable errors later.
