Getting Your Quidel Sofia 2 Running Again

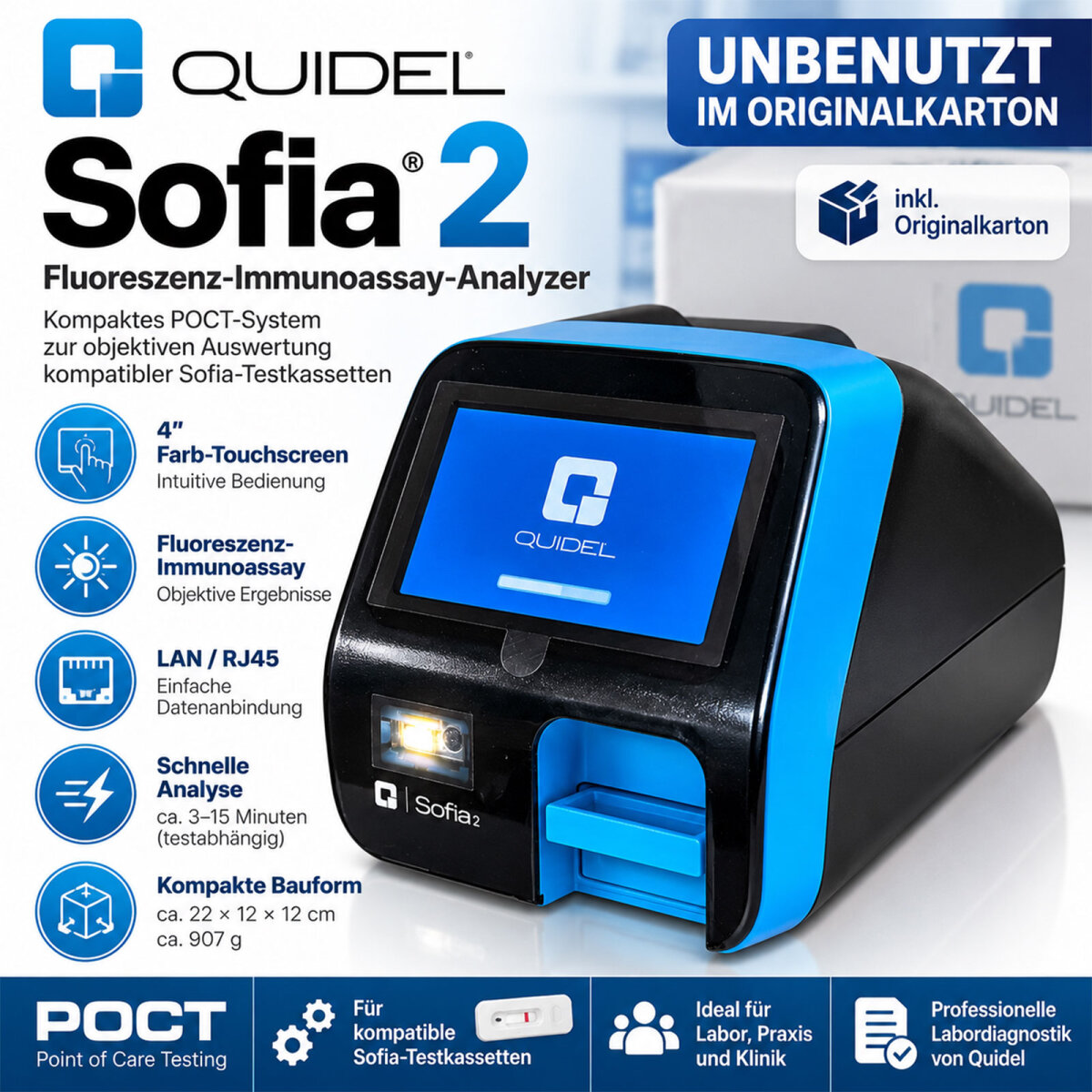

When this instrument goes down, it usually isn't a catastrophe-level failure. More often it's a consumable issue or a blocked capillary that you can clear without calling service. I've spent years working with these in clinical labs, and I'm going to walk you through what actually matters. The Quidel Sofia 2 is an immunofluorescence instrument used primarily for rapid diagnostic testing of respiratory pathogens and streptococcal antigens. It reads fluorescence signals from test cards and gives a positive/negative result based on threshold calculations. Think of it as a reader that replaces the naked-eye microscopy approach from the original Sofia unit. Key specifications: it runs Streptococcal A tests, influenza A/B, and RSV. Results typically come in 15 to 25 minutes depending on the protocol. The instrument stores results and can interface with LIS systems for result logging.
Unlock The Power Of Quidel Sofia 2 Your Ultimate Tech Support Guide
Here's what most people miss when their Sofia 2 acts up. Error Code 4 or "Card Read Failed" errors: This is almost always the incubator block. Open the instrument lid and check the incubator area for any debris or dried reagent. Wipe the block with a lint-free cloth dampened with distilled water. If the block looks scored or discolored beyond normal wear, you may need the replacement part from Quidel service. "Temperature Error" messages: Check the lab ambient temperature. The Sofia 2 operates within a specific range, and if your HVAC is cycling hard or the instrument is near a vent, you'll get spurious temperature alarms. I once had a lab get 3 false temperature errors in one week because someone placed a coffee maker directly behind the instrument, and the steam was enough to tip the sensor readings. Keep clearance space around the unit.
Inconsistent negative controls: If your control results are borderline or weak, the issue is usually the control reagent or the test card expiration. Check the lot numbers. I've seen labs throw out cards that were only a few days past their labeled date, but the real problem was the control solution being exposed to light for too long between uses. Fluorescent reagents degrade under ambient lab lighting. Keep the control bottle capped and stored properly when not in active use.
Get the Full Details
Calibration and Quality Control
Run control tests at the start of every shift and with every new lot of test cards. The instrument's calibration is generally stable, but reagent lot changes can shift the fluorescence thresholds enough to warrant a recalibration. The recalibration process involves running the calibration standards through the system and entering the calibration values. Document everything. Regulatory auditors care about this more than anyone will admit. If you're doing CLIA-waived testing, maintain your QC logs. Each control run should be recorded with date, time, lot numbers, and results. When a control fails, stop testing and troubleshoot before running patient specimens.
Reagent and Card Handling
Test cards should be stored at refrigerated temperatures as specified. Bringing cold cards directly into a warm lab can cause condensation, which affects the fluorescence reading. Let cards reach room temperature in their sealed package before opening. This is a small thing that causes bigger problems than people expect. The sample reagent and wash solutions have finite shelf lives once opened. Track opening dates. Using expired reagents won't just give you bad results — it can damage the instrument's fluidics over time.
When to Call for Service
Some problems you can't fix yourself. If the instrument displays a hardware error that doesn't clear with a power cycle, or if the fluorescence detector appears faulty (which you'd suspect if controls read consistently low regardless of reagent checks), call Quidel technical support. Having your instrument's serial number and firmware version ready will speed things up. The Sofia 2 has a self-diagnostic mode accessible through the service menu. If you have the credentials, run the diagnostics before calling for help. It will tell you which subsystem is reporting a fault and can save you a service call for something that was just a software glitch.
Maintenance Schedule
Perform daily cleaning of the card loading area and incubator block. Weekly, check the fluidics for any visible deposits. Monthly, run the full self-test and verify all error codes clear. Keep a logbook. This isn't optional if you want the instrument to last beyond its warranty period. I've seen Sofia 2 units run for years with minimal issues, and I've seen them die prematurely because someone skipped the basic cleaning steps. The difference is almost always maintenance discipline, not instrument quality.
