Getting Your Zebra Printer to Actually Print What It's Supposed To
Zebra printers are everywhere in warehouses, hospitals, and shipping departments. They're also notorious for refusing to cooperate when someone adds a new label size, switches computers, or just touches the print engine settings by accident. This guide covers the driver installation and common troubleshooting paths that actually work in production environments, not the ones that show up in three-year-old forum posts. Most problems start at the driver layer. People install whatever generic Zebra driver Windows throws at them during Add Printer, skip checking the port configuration, and then spend the next four hours debugging something that was a bad port assignment from the beginning. Here is the sequence I use when setting up a new Zebra in a deployment. Go to the Zebra support site and download the current driver package for your specific model. Do not rely on Windows Update to pull one. The Windows-supplied driver is often months behind and missing firmware-specific features like advanced media calibration routines or network stack optimizations.
During installation, choose the custom install path. The default options will typically assign the printer to a WSD port, which is Microsoft's Wireless Status Discovery protocol. WSD ports are unreliable for network printers. WSD ports break when a DHCP lease rotates, when the IT team reindexes the network, or sometimes just because Windows decided the port name looked wrong. Switch it to a Standard TCP/IP port using the printer's static IP address. Write that IP down on a label on the printer itself so nobody can pretend it changed later. I ran into this exact issue last fall when a warehouse rotated their DHCP scope and lost six ZT411 printers simultaneously. The logs showed nothing useful. We traced it back to WSD port instability across the entire fleet. Once we rebuilt the ports as standard TCP/IP with static assignments, the ghost disappearances stopped immediately. The whole episode cost us about eight hours of downtime because nobody on the floor remembered how WSD ports work.
Understanding ZPL vs DPL vs EPL Drivers

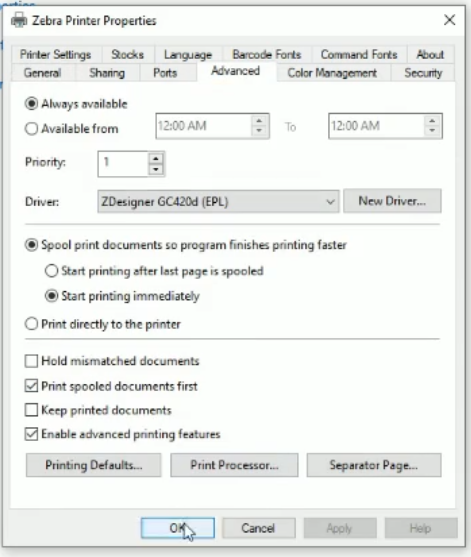

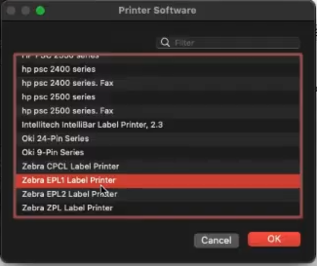

Zebra drivers talk to printers using different command languages, and getting this wrong causes very specific failure modes that are annoying to diagnose. ZPL, or Zebra Programming Language, is the native format. DPL is Data Language, a simpler subset aimed at older printers. EPL is Eltron Programming Language, which is what some legacy Zebra models speak. If you send ZPL commands to a printer expecting EPL, you get garbage characters or the printer goes into an error state and blinks its status light repeatedly. When you install the driver, you are not choosing the printer model alone. You are choosing the language the driver emulates and the protocol stack it uses for job submission. For modern deployments, stick with the ZPL II driver unless your existing software pipeline was built around EPL. There is no performance advantage to using EPL on a printer that supports ZPL natively. You are just adding a translation layer between your application and the print engine.
Get the Full Details
Network Configuration That Actually Holds Up
Assign the printer a static IP inside your DHCP exclusion range. Do not rely on reservation alone. DHCP reservations work until someone edits the wrong screen in the management console. Static IPs on the printer side eliminate that variable entirely. Enable the correct network protocols. Most Zebra printers ship with FTP, Telnet, and HTTP services enabled by default for convenience. Turn off anything you do not use. Telnet exposed to a warehouse VLAN is a real attack surface. It only takes one curious technician plugging a laptop into a spare wall jack to find a telnet prompt and accidentally change the print engine timeout settings. I learned that one the hard way when a forklift driver with a busted Android tablet walked up to an open Ethernet port, opened a terminal app, and reset the engine timeout to three seconds. The printer started cutting labels mid-print because the thermal head cooled down between cycles instead of holding steady heat. It took two hours to figure out what happened because the timeout values were nowhere near the control panel defaults.
Media Calibration and Sensor Tuning
Every time you change media type, label size, or ribbon configuration, the printer needs to recalibrate its gap sensors. This is not optional. If you skip calibration, the printer will either print half the label content or feed the labels past the correct position and waste an entire roll before anyone notices. Most Zebra drivers include a calibration routine in the printer properties under Device Settings. You can also trigger it from the control panel by holding the Feed button until the status LED flashes amber, then releasing it. There is a specific edge case with black mark media that most people miss. Black mark sensors on the ZT series use reflectance, not gap detection. If your black marks are glossy and your labels are matte, a single pass through the calibration routine may not distinguish them correctly. The workaround is to run the sensor calibration twice with a manual override: set the sensor type to black mark first, calibrate, then switch the media type to mark sensor and calibrate again. The second pass locks the reflectance threshold. Without this, you will get intermittent misfeeds that make no sense on paper.
Print Engine and Density Settings
Print density controls how much heat the thermal head applies during each print cycle. Most people leave this at factory default and never adjust it. Factory default is wrong for many label stocks, especially cheaper uncoated paper labels that absorb heat differently than polyester or polypropylene synthetic stocks. If your prints look faint in patches or the toner ribbons on direct thermal media are wearing unevenly, adjust the print density in quarter-point increments. Go too dark and you degrade the print head faster and introduce ribbon stretch issues. Go too light and barcode scanners will reject your labels on first scan. I had a shipping dock complain about barcode rejection rates climbing to about twelve percent one morning. The root cause was the density setting drifting during a firmware update that reset all engine parameters to factory defaults. One adjustment back to the previous setting fixed the rejection rate within ten minutes.
Common Driver Issues and How to Fix Them
Printer shows offline but pings fine. Check the port. Rebuild the TCP/IP port with the correct IP and subnet mask. Do not trust the automatically detected gateway value. Manually enter it. Labels print but the first few inches are blank. This is a media calibration issue or a wrong media type setting in the driver. Run calibration and verify the driver is set to the correct media type. Printing is slow and inconsistent. Check the interface speed and duplex setting. Some older USB-to-serial adapters and hub configurations cause handshake delays. Bypass the hub and connect directly to the PC or switch. If using Ethernet, verify the port negotiation is at 100 full duplex, not auto-negotiated half duplex.
The print queue backs up but the printer does nothing. Clear the print spooler, restart the service, and delete the corrupt job file. Zebra driver spool files can become corrupted if a job is interrupted mid-send, especially large graphics-heavy labels. Check the C:\Windows\System32\spool\PRINTERS folder for stuck files with zero length or strange extensions.
Firmware Updates and When to Avoid Them
Firmware updates fix real bugs, but they also change behavior in ways that break existing workflows. I once updated a fleet of ZM400 printers to a newer firmware version and immediately saw a spike in peel-off module failures on our label applicator line. The new firmware adjusted the motor torque curve for the peel mechanism, and the older applicator arms could not keep up with the revised timing. Rolling back the firmware fixed it, but documenting the change took two days of testing across three shifts. Before updating firmware, export your current printer configuration using the Zebra Configuration Utility or the web interface. Save the XML file. After the update, import the config and verify every parameter matches the baseline. If something is missing from the import, the firmware update may not support restoring that setting, and you will need to enter it manually.
What This Approach Does Not Fix
This guide covers driver-level and configuration-level issues. It does not help when the print head itself is physically damaged, when the ribbon supply mechanism is stripped, or when the main logic board has failed. Those require hardware service. No amount of driver tweaking will restore a cracked thermal element or a worn pinch roller. If your printer is more than seven years old and running firmware that no longer receives updates, consider whether continued driver support is worth the troubleshooting overhead. Zebra eventually drops driver compatibility for legacy platforms, and chasing a dead driver on a modern Windows build is a frustration that has no clean resolution.
