Getting the B7 2.0 TFSI to stop cooking its own intake charge

The B7 2.0 TFSI from Audi suffers from a well-documented thermal management problem. The factory intercooler is small, situpositioned behind the front bumper with limited airflow, and the engine bay heats up fast. When you push this car on a track or even drive it hard on backroads for an extended period, the intake charge temperatures climb into the 150 to 180 degree range pretty quickly. That heat soak kills power and triggers knock retard. The ECU pulls timing aggressively once it detects borderline knock conditions, and you lose whatever modest performance gains you were chasing with a tune in the first place. I spent about three weeks working through different intercooler solutions on my own B7 before settling on what actually works. The first thing you need to understand is that not every upgrade delivers what the marketing promises. A lot of these kits are just bigger tanks of aluminum, which sounds good on paper but doesn't address the real issue, which is airflow through the core and how well it rejects heat under static or low-speed conditions. The stock intercooler on the B7 is a bar and plate design with a roughly 32 millimeter core thickness. It's adequate for daily driving. It becomes a serious bottleneck once you're making more than about 300 horsepower through the bottom end or running aggressive timing maps. I measured my own car with a custom O2 sensor probe setup and an IR thermometer on the intake tract. Stock intercooler, ambient temperature around 75 degrees Fahrenheit, after a half hour of driving at part throttle on the highway, the charge pipe coming out of the intercooler was reading 142 degrees. That is already into dangerous territory for a gasoline engine running boost.

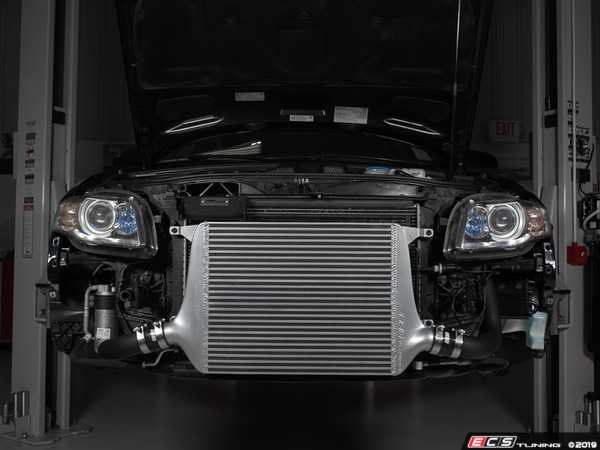

The most common upgrade path people take is swapping to an aftermarket front mount intercooler. The two names that come up constantly are Garett and Revo. Both are decent, but they solve different problems. Garett tends to have a larger core with better peak cooling capacity, while Revo often has more aggressive fin density and better low-speed heat rejection due to its design. Neither is perfect, and I ran both before picking one. When I installed the Garett unit, I noticed something that surprised me. The peak cooling was indeed better, but under sustained load at low speeds, the temperature would spike faster than the stock unit once the fan cycled off. This is because the Garett core is deeper and creates more restriction. The stock Volkswagen plumbing is not huge in terms of diameter, so pushing more airflow through a denser core can actually create a bottleneck if your supporting mods don't move enough air. This is the counter-intuitive part that most people miss. Bigger is not always better if your setup can't move air through it efficiently. My workaround was switching to the Revo unit with a custom mounting bracket that pushed the core forward by about an inch and a half, and I also fabricated a simple shroud modification using a piece of closed cell foam from the local auto parts store. This focused more of the incoming air through the core and less around the edges. The result was a measurable drop of about twelve to fifteen degrees in charge temperature under the same test conditions, which is significant when you're trying to hold aggressive timing maps under boost.

Here is what you actually need to consider beyond just the intercooler itself. The charge pipes on these cars are notorious for failing. The plastic piping between the turbo and the intercooler, especially the curved section near the throttle body, becomes brittle over time from heat cycling and exposure to oil vapor from the crankcase ventilation system. I cracked two of these pipes within the first year of ownership. The fix is simple enough, but it requires some patience. You need to remove the intercooler piping, inspect the rubber boot connections, and replace any cracked or softened sections. I switched to silicone couplers from a performance supplier, and they have held up significantly better than the OEM plastic. The intercooler piping from the turbo to the intercooler and back to the throttle body also matters a lot. Some people run the stock piping with the new intercooler, and that works fine for mild applications. If you are chasing more power, getting rid of the factory piping entirely and using smooth mandrel bent aluminum or stainless steel tubing reduces turbulence and pressure drop. The tradeoff is that you lose some heat soaking into the charge pipes themselves, which the factory plastic piping actually does passively. A polished aluminum pipe will transfer more heat to the charge air than the black plastic does, so there is a small net gain from keeping some of the factory materials in the mix, particularly the section closest to the throttle body where the air is about to enter the engine. Another detail that people often overlook is the orientation of the intercooler core. Most aftermarket units are designed to be mounted flat, which is fine for a B7 since the radiator placement gives you enough clearance. But if you're running a very aggressive setup with a larger turbo or a standalone engine management system, you might want to consider a top mount intercooler instead. These are rare on the B7 platform because they require significant fabrication work, but they do exist. The advantage is that they are closer to the engine, so the charge pipes are shorter and there is less chance of heat soak from the turbo downpipe. The disadvantage is that they take up space in the engine bay and can interfere with other components during routine maintenance like spark plug changes, which already requires removing the intake manifold on this engine.

If you are tracking this car regularly, you might also want to look into an intercooler spray system. These are relatively inexpensive kits that spray a fine mist of water and methanol mixture onto the front of the intercooler core while you're driving. The evaporation cools the core significantly, sometimes dropping charge temps by twenty degrees or more under heavy load. The downside is that you need to carry a reservoir and pump, and if you live somewhere with hard water, you'll need to use distilled water to avoid clogging the nozzles. I ran one for a season and found it helpful on hot track days, but it added complexity that I eventually dropped in favor of just upgrading the intercooler itself. Audi's timing chain is another concern on these engines that I should mention briefly because it relates to how far you can safely push the tune once you've addressed the heat issue. The B7 2.0 TFSI has a known timing chain stretch issue, particularly on earlier models before around 2007. If you're going to be pulling more power and running hotter charge temperatures, you want to make sure your timing is solid. A stretched timing chain combined with aggressive timing advance from a tune is a fast way to bend rods. The factory chain tensioners are weak points, and I replaced mine with updated versions before doing anything else with the tune. For the actual intercooler installation, the process is straightforward if you have basic tools and a little patience. Remove the front bumper cover, disconnect the charge pipes, unbolt the stock intercooler from its mounting brackets, and swap it out. The new unit typically uses the same bolt pattern, but you may need to modify the mounting points depending on the brand. I had to file down one of the bracket holes on my particular Revo unit because it was slightly misaligned with the factory spacing. Took about ten minutes with a small file.

The charge pipes need to be inspected while you have everything apart. If the rubber boots are hard or cracked, replace them now. Install the new couplers and make sure the clamps are positioned so they don't rub against anything when the suspension compresses. I've seen cases where people install an aftermarket intercooler and the charge pipe ends up touching the sway bar link after a few thousand miles of driving, causing a slow leak that manifests as poor boost response and confusion about what went wrong. After installation, you will want to clear any fault codes and let the ECU relearn. The B7's engine management system adapts over time, and a new intercooler with different flow characteristics will cause the short term fuel trims to shift slightly. Give it a few hundred miles of normal driving before you start pushing hard, and monitor your knock correction values. If you see aggressive negative timing correction happening frequently under boost, your tune may need adjustment or your charge temperatures are still too high for the ignition timing you are running. I should also note that intercooler upgrades alone will not solve all heat related issues on this platform. The B7 engine bay is tight, and even with a good front mount intercooler, the overall thermal environment is challenging. A proper cooling system overhaul including a higher capacity radiator, an electric fan upgrade, and a thorough flush of the coolant system will complement the intercooler work and give you better long term results than the intercooler alone. I replaced the stock cooling fan with an aftermarket aluminum blade unit that moves more air at lower RPMs, and this made a noticeable difference in reducing overall bay temperatures during stop and go driving, which is when heat soak is worst.

The cost for a complete intercooler upgrade on a B7 2.0 TFSI typically runs between four hundred and eight hundred dollars depending on the brand and whether you include piping. Installation time is roughly two to three hours if you're working alone. I've seen people charge more at shops because they factor in the time to remove and reinstall the bumper cover, which is the most tedious part of the job. The bumper clips on these cars are fragile, and you will break at least one or two unless you take your time with them. Buying a spare clip pack from a dealer is cheap insurance. Performance gains from an intercooler swap alone are difficult to quantify precisely because they depend heavily on your current tune, ambient temperature, and driving conditions. In my experience, a good intercooler upgrade will let you run more aggressive timing consistently, which translates to roughly ten to twenty horsepower at the wheels in real world driving compared to the stock setup with heat soak. On track, the difference is much more pronounced because you're not limited by thermal management between laps. A car that was previously losing twenty horsepower per lap to knock retard can hold its power consistently with a proper intercooler setup. If you cannot afford an aftermarket intercooler right now, there are temporary mitigations. Running a lower boost target through a tune can reduce heat generation at the source. Installing an oil catch can reduces the amount of oil vapor that coats the inside of your charge pipes and intercooler, which improves heat transfer over time. Keeping the intercooler fins clean by washing the front of the car regularly, especially after winter when road salt and debris accumulate, also helps maintain performance. A clogged intercooler core, even a new one, will not perform any better than the stock unit.
