Engine Swapping a Kia Stinger: What Actually Happens
The Kia Stinger is a platform built on a rear-wheel-drive architecture with a subframe that's actually decently designed for modifications. Most people look at the factory 2.0 turbo or the 3.3T V6 and think they want more power. What they don't realize upfront is that a straight bolt-in swap doesn't exist for this car unless you're staying within the Hyundai/Kia powertrain family. Every other option requires fabrication, wiring work, and a headache you won't appreciate until the car won't pass emissions. There are really three paths people take. The first is a like-for-like replacement. Your 3.3T blows up, you pull a low-mileage long block from a wreck and swap it in. This is the only swap that's remotely straightforward. Mounts line up. Engine control modules talk to each other if you swap ECU and tuning hardware. Wiring harnesses are identical. It takes a weekend with basic tools and maybe some help from a transmission jack. The second path is swapping in another Hyundai or Kia powertrain. The Lambda II engines share the same bellhousing pattern as the Genesis platforms. Some people have mated the 2.5T GDI from a/Genesis to a Stinger. The mounts require custom adapter brackets. The motor mounts on the Stinger subframe are positioned differently than the newer Genesis models, so you can't just drop it in. You also have to deal with the transmission tunnel clearance. The 8-speed ZF 8HP used in the Stinger is what you need to pair with these swaps. Other transmissions won't bolt to the engine without extensive fabrication.
The third path is whatever European engine someone thinks sounds cool. BMW B58 swaps have been attempted. Ford Coyote V8s have been attempted. Both require cutting the firewall, modifying the subframe, and running custom axles because the wheelbase and track width won't match anything factory. These projects routinely eat six figures of budget when you count the downtime and mistakes. I'll tell you about something nobody warns you about. When I was helping someone do a 3.3T to 3.3T swap using a salvage engine, we assumed the wiring harness would be interchangeable. It is not. The engine harness on a 2018 model year Stinger has different pin assignments than a 2020 model year. The connectors look identical. They're not. We spent three hours diagnosing a no-start condition before I pulled the wiring diagrams and realized the fuel pump control circuit was routed through a completely different pin. The workaround was splicing into the ECU harness at the main junction point and running a separate relay for fuel pump power. Took about forty-five minutes once we knew where to cut. Would have taken us two days without the diagram.
What You Actually Need Before You Start
You need the right tools, but more importantly you need information. OEM service manuals for the Stinger are not freely available online in a useful format. The Hyundai technical documentation site requires a dealer login. If you're doing anything beyond a direct swap, you need access to wiring diagrams, torque specs, and procedure guides. I use a combination of the Hyundai/Genesis service information system and forum-shared documentation from the Stinger community. The Stinger Forum and Reddit's r/kia_stinger both have detailed swap threads, but verify everything you read. People post solutions that worked for their specific VIN without noting what year or trim they had. The subframe bolts on a Stinger are torque-to-yield fasteners. You cannot reuse them. The front subframe bolts specifically need to be replaced every time the subframe is removed. You'll also need new exhaust gaskets, new oil filter housing gasket, and new coolant hose clamps. Skip this and you'll be dealing with leaks inside your engine bay within a month.
Get the Full Details
The Transplant Process

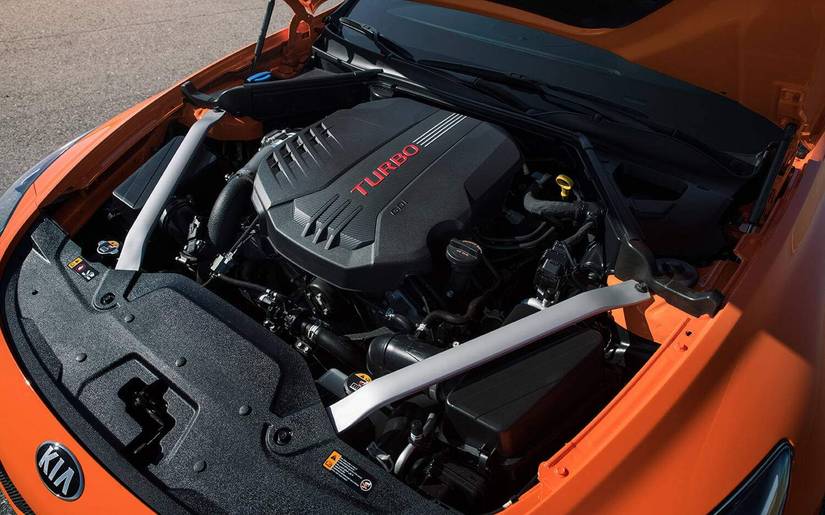

Remove the hood first. Not because it's mandatory, but because lifting the engine without it removes a variable and you won't bang the radiator support trying to angle it out. Drain the coolant and transmission fluid. Disconnect the battery. Remove the air intake assembly and throttle body wiring. Unplug every sensor on the engine. Label everything with painter's tape and a marker. I know you think you'll remember which connector goes where. You won't. Support the transmission before removing the converter bolts. The transmission is heavy and when you remove those bolts it wants to slide forward off the torque converter. Use a jack with a transmission support strap or have someone hold it. Support the engine from above with a hoist or engine support bar. Remove the subframe crossmember bolts, not the subframe bolts themselves if you're doing a direct swap. The subframe stays in the car. You're dropping the engine out the top. This is where things get tricky on the Stinger. The engine bay is tight. The turbo on the 3.3T sits high and forward. You'll likely need to remove the intercooler piping and possibly the charge pipe to get enough clearance. The radiator support brace crosses directly over the engine. Some people remove it entirely. Others cut it and weld a new one lower. Removing it is fine if you're building a track car. Keeping it is better if you want the car to be structurally sound for street use. The brace contributes to front-end rigidity.
When lowering the new or replacement engine in, do not force it. The oil pan on the Lambda II engine clears the subframe by about twelve millimeters. If your oil pan isn't the factory Stinger version, it might not fit. Some aftermarket pans are designed for different applications and will hit the subframe. Test fit before you commit. I learned this the hard way on a project where the replacement engine had an aftermarket dry-sump pan that was two millimeters too tall. We ended up grinding the leading edge of the subframe crossmember. Two millimeters of metal. But it took an angle grinder and forty minutes of cleanup.
ECU and Wiring Considerations
If you're swapping to an identical engine from the same model year range, you can swap the ECU from the donor car. Flash the donor ECU to your VIN using a Xilinx programmer or similar tool. This makes the car think nothing happened. Immobilizer compatibility is the real issue here. The Stinger uses a transponder-based immobilizer tied to the ECU and instrument cluster. If the donor ECU has a different key code, the car will crank but not start. You need to either match the immobilizer data or replace the entire immobilizer system with an aftermarket solution like an AEM or Haltech unit. That last option costs around four thousand dollars and requires a professional tuner to set up. For non-factory engine swaps, you're starting from zero on the electronics side. You need a standalone ECU, a complete wiring loom, and a dyno tune. Budget at least thirty hours of labor for the wiring alone if you've never done this before. The Stinger's CAN bus network means that sensors feeding into the factory ECU won't talk to a standalone without adapters or reprogramming. Wheel speed sensors, ABS modules, traction control inputs — all of this stays connected through the factory wiring. You can leave most of it alone if the standalone ECU handles only fuel and ignition. But then you lose traction control and stability management, which matters on a 365 horsepower rear-wheel-drive sedan.
Realistic Expectations
A direct engine replacement swap on a Stinger will cost you between two thousand and four thousand dollars if you source a used engine from a wreck and do the labor yourself. Parts alone — mounts, gaskets, fluids, bolts — run about six hundred dollars. A professional install runs eight to twelve thousand depending on the shop. A full custom swap with a different engine block will cost you between eight thousand and twenty thousand dollars when you factor in fabrication, wiring, tuning, and the inevitable problems that arise. The time commitment is three to six months for a first-time builder working part-time. Four to eight weeks for someone who has done this before. The biggest limitation people overlook is the cooling system. The Stinger's factory cooling setup is adequate for stock power levels. Anything above forty percent over stock output requires an upgraded radiator, possibly an upgraded transmission cooler, and revised coolant routing. The factory radiator is aluminum and relatively small. I've seen builds with boosted Lambda II engines where the factory radiator couldn't keep the engine below two hundred and twenty degrees Fahrenheit in summer traffic. The fix was a 3-row aluminum radiator from a specialized supplier and a dual electric fan setup. That added about eight hundred dollars and required modifying the shroud.
Another thing nobody talks about is drivetrain longevity. The Stinger's rear differential and driveshaft are rated for roughly four hundred fifty foot-pounds of torque. The 3.3T makes about three76 pound-feet at the crank. Boosted engines in the four hundred to five hundred range are fine. Push past five fifty and you're stressing the diff. The factory limited-slip differential is a clutch-type unit that wears under high torque. Upgrading to a welded or electronic locker is common in the Stinger community for anyone running more than five hundred wheel horsepower. The cost is about nine hundred dollars for a quality unit including installation. There's also the question of whether this is worth it. A well-maintained 3.3T Stinger makes three65 horsepower and five37 pound-feet from the factory. It does zero to sixty in about four point five seconds. For most people, a proper ECU tune on the existing engine — Stage 2 with an intercooler upgrade — gains forty to sixty horsepower at no mechanical risk. That's often a better use of money than a full engine swap unless you have a specific reason for a different configuration or the current engine is destroyed. If you're determined to proceed, start with the parts list and verify fitment before you buy anything. Join the Stinger forums and read the completed swap threads. Don't skip the wiring diagrams. And for the love of it, replace those subframe bolts. They're cheap and they save you from a catastrophic failure later.
