Finding Wave Frequency Is Not That Hard If You Actually Measure It Right
I spend a lot of time dealing with signals that don't behave the way textbooks say they should. There is a big gap between "the frequency is 440 Hz" and looking at a noisy mess on an oscilloscope and figuring out what is actually going on. Most people learn the formula f = v / once and then forget about it. That formula works for clean sine waves on a calm day. Real measurements are messier. Let me walk through how to Uncover The Secrets Of Waves A Stepbystep Guide To Finding The Frequency Of Waves, starting from the actual setup rather than the theory section of your textbook.

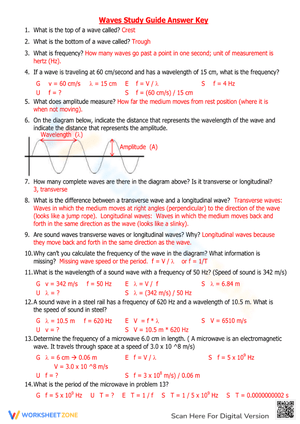

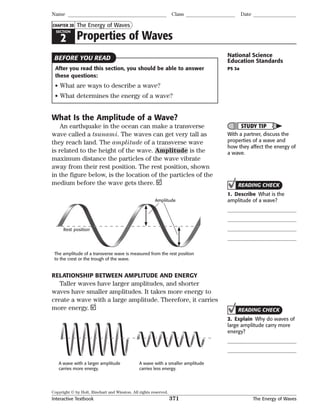

The Basic Relationship and What It Actually Means
Frequency is the number of complete cycles a wave repeats per second. The unit is hertz. One hertz equals one cycle per second. That is it. Nothing mystical. The period T is the time for one cycle, and the relationship is simply f = 1/T. When you move into wavelength, you get f = v / where v is the wave speed and is the wavelength. These are not three different things. They are the same relationship written in different ways depending on what you can measure directly. Here is the part beginners always get wrong. If you measure wavelength in a medium that has dispersion, the wave speed changes with frequency. That means you cannot assume a single speed value across the whole band. I ran into this with ultrasound in a polymer sample where the velocity shifted by about eight percent across the operating range. Using a constant speed assumption gave me frequency errors that looked random until I stopped and checked the dispersion curve.
Measuring Period Directly on an Oscilloscope
The simplest hands-on method is to capture the waveform and measure the period. Connect your probe to the signal. Make sure your grounding is solid because bad grounding adds noise that makes period measurements swing around. Set the time base so you see roughly two to five cycles on screen. Use the cursor function if your scope has it. Place one cursor on a rising zero crossing and the other on the next identical rising zero crossing. Do not use falling crossings or random points. The time difference between them is the period. Once you have the period, take the reciprocal. If the period is 0.002 seconds, the frequency is 500 Hz. That is all. This method works well when the signal is clean and stable. If the trace is jittery, average multiple cycles. Measure across ten periods and divide by ten before taking the reciprocal. It reduces the impact of trigger jitter and gives you a more stable number. I learned this the hard way on a project involving a PWM driver running at around twenty kilohertz. The fundamental was buried under switching noise and harmonic content. Measuring one cycle gave wildly different results depending on where I placed the cursors. Switching to a ten-cycle average dropped the variance from about plus or minus three percent down to plus or minus 0.2 percent. That is the kind of difference that separates a working design from one that fails at integration.
Get the Full Details
Using Zero Crossings and Automated Measurement
Most modern scopes will measure frequency automatically now. They count zero crossings or use internal timers to calculate the value. This is convenient. It is also sometimes wrong in subtle ways. Automatic measurements can latch onto noise peaks and treat them as zero crossings. Always verify the scope result against a manual cursor measurement when the signal looks unusual. Check that the measurement is tracking the fundamental and not a harmonic or a glitch. If your signal has a slow amplitude modulation or frequency modulation, the automatic frequency reading will drift. In those cases, measure the period over a longer window or switch to a frequency counter mode that gates the counting over a fixed time base. A gate time of one second gives you one hertz resolution. A gate time of ten seconds gives you better resolution but smooths out fast changes. Pick the gate time based on how much the frequency actually varies.
Frequency from Wavelength in a Known Medium
When you cannot access the electrical signal directly, you can sometimes find the frequency from the wavelength. This is common with acoustic waves, water waves, or electromagnetic waves in a transmission line. You need to know the wave speed in the medium. For sound in air at room temperature, the speed is roughly three hundred forty-three meters per second. That value changes with temperature. Every degree Celsius changes it by about zero point six meters per second. If you are working outdoors or in an unconditioned space, measure the temperature and adjust your speed value. To measure wavelength, you can use a standing wave pattern. Create a reflection and move a sensor along the path. The distance between adjacent nodes or antinodes is half the wavelength. Double that distance to get the full wavelength. Then apply f = v / . This is a standard lab technique for acoustics and microwave work. It is slow compared to using a spectrum analyzer, but it teaches you what the wave is actually doing in space. I used this method once to characterize a resonant cavity at around two gigahertz. The waveguide dimensions were tight and a probe had to be moved in small increments. One misread caused the entire calculation to be off by nearly five percent. I caught it by measuring both the node-to-node and antinode-to-antinode distances separately and confirming they matched. That cross check saved me from building the rest of the system around a bad number.
Spectrum Analyzers and FFT Methods
For electrical signals with complex content, a spectrum analyzer or an FFT on a digital scope is usually the right tool. You capture a time domain record and transform it. The peak in the frequency domain is your dominant frequency component. This handles noise, harmonics, and modulated signals much better than manual period measurement. Resolution is the key concern. The frequency resolution of an FFT is the sampling rate divided by the number of points. A longer record gives finer resolution but requires a stable signal during the capture. If the frequency drifts while you are recording, the peak spreads and your reading becomes inaccurate. Use a coherent sample count when possible, or increase the record length until the drift is negligible relative to the bin width. Window functions matter here. A rectangular window assumes the signal is periodic within the capture window. If it is not, you get leakage. Hanning or Hamming windows reduce leakage at the cost of some resolution. Pick the window based on whether your priority is accurate amplitude or accurate frequency location. For frequency measurement, a Hanning window is usually a safe default.
Common Pitfalls That Waste Time
Probe compensation is an undersold step. An uncompensated probe adds phase shift and amplitude error that can distort the waveform enough to throw off period measurements. Calibrate your probe on the scope's calibration output before you trust any measurement. It takes thirty seconds and prevents hours of confusion later. Another frequent problem is aliasing. If your sampling rate is too low relative to the signal frequency, you will see a false lower frequency. The Nyquist rule says you need at least twice the highest frequency component. In practice, aim for five to ten times the bandwidth you care about. I wasted an afternoon once troubleshooting what I thought was a real subharmonic oscillation. It turned out the scope's sampling rate was too low and the signal was aliasing into the display. Checking the sampling rate and rising it fixed the issue immediately. Ground loops and pickup are a third issue. A floating ground or a long ground lead acts as an antenna. Your measured frequency might be correct, but the noise floor can make the zero crossings ambiguous. Use the shortest ground connection possible and consider a differential probe if the signal is referenced to a non-earth potential.
When Standard Methods Fail
No method is universal. If the signal is extremely low amplitude, buried in noise, or intermittent, period measurement and basic FFT will struggle. In those cases, a frequency counter with a high gain preamplifier or a phase-locked loop-based instrument gives better results. For optical or RF signals where direct electrical access is impossible, heterodyne methods or beat frequency techniques are the standard approach. You mix the unknown signal with a known reference and measure the difference frequency, which is easier to resolve accurately. There is also the case of chirp signals where the frequency changes continuously. A single frequency number is not meaningful. You need a spectrogram or a time-frequency plot to see how the frequency evolves. The concept of "the frequency" breaks down entirely for non-stationary signals, and no amount of averaging will fix that.
A Practical Workflow That Actually Works
Start by inspecting the raw waveform. Check amplitude, shape, and noise level. Verify probe compensation. Set the time base to show several cycles and do a manual cursor measurement of the period. Compare that to the scope's automatic frequency reading. If they match, you can trust the auto measurement for routine checks. If they disagree, investigate why. Check for aliasing, insufficient sample rate, or noise interference. Then decide which method gives the most reliable result for your specific signal. Document the settings you use. Sampling rate, record length, window function, gate time, probe attenuation. These details matter when you revisit a measurement months later and cannot remember why a number looked wrong. I keep a simple log sheet for every bench test. It sounds tedious. It has saved me more times than I can count. Frequency measurement is a skill built on repetition and skepticism. The formulas are simple. The practice is not. Learn to question every reading, verify with a second method whenever practical, and pay attention to the conditions around the measurement. That is how you stop chasing ghosts in your data and start getting numbers you can actually use.
