Searching Tantalum and Titanium Foils for Catalytic Applications
I spent about three years in a university lab dealing with transition metal foils for electrocatalysis work. What I am going to explain here is not a formal protocol from any paper. It is just what actually worked when I was trying to get clean data out of Tantalum and Titanium foil samples for various catalytic tests. The search process itself is boring but important, and most people skip straight to the experiment without getting the fundamentals right. Before you do anything else, you need to understand what you are actually looking for. When we talk about Tn foil in materials discovery, we are usually referring to Tantalum or Titanium thin metal foils used as substrates, catalyst supports, or as active components in electrochemical cells. The difference matters because the surface chemistry of each is completely different. I learned this the hard way after wasting two months of grant money on samples that were contaminated from the start.
Tn Foil Search How A New Method Is Revolutionizing Material Discovery And Catalysis Research

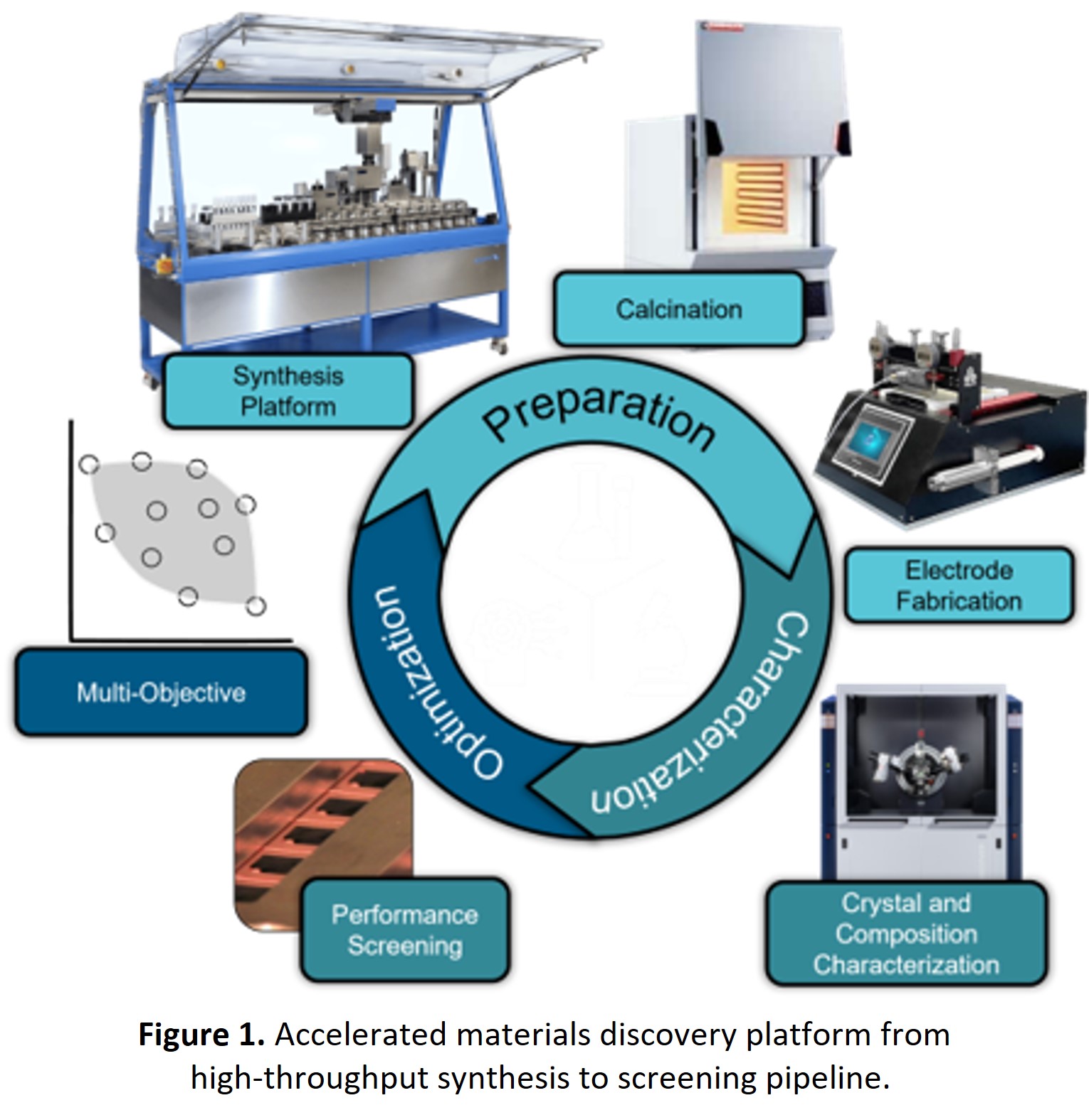

The new methods people are writing about now involve computational high-throughput screening combined with better surface characterization. The old way was to just buy foil, drop it in acid, hope for the best, and run your cyclic voltammetry. That approach still works for quick checks, but if you are actually doing materials discovery work where reproducibility matters, you need a more systematic search procedure. Here is how I set up my foil search workflow, and I am going to be direct about what tends to go wrong. First, you select your foil supplier and specification. Do not buy the cheapest option. I once got a batch of Tantalum foil that looked fine until I ran XPS and found it was heavily oxidized from poor packaging. The spec sheet said 99.95% purity and 0.1mm thickness, which was accurate, but nobody mentioned the surface oxide layer was already several nanometers thick from factory exposure. You need to request a certificate that includes surface analysis, not just bulk composition. Some suppliers will give you this if you ask. Most will not unless you specifically push for it.
Second, the cleaning procedure. This is where most people mess up. For Tantalum foil, I use a sequence of acetone, ethanol, and deionized water ultrasonic baths, each for fifteen minutes. Then I do a gentle argon ion sputtering for about five minutes in my vacuum chamber before any measurement. For Titanium, the sequence is similar but you have to be more careful because Ti forms a stubborn native oxide that does not come off easily. I found that a brief dip in a 5% HF solution for thirty seconds followed by immediate rinsing in IPA works better than extended sputtering for getting a clean Ti surface. I spent a week trying different sputtering parameters before someone reminded me that HF was the obvious answer. The oxide layer on Titanium is essentially tile and will not respond to gentle ion bombardment. Third, characterization before you run catalysis. You should always confirm your surface state with XPS or at minimum contact angle goniometry. If the contact angle is above sixty degrees on a clean metal surface in air, you have contamination or oxidation issues. In my experience, Tantalum surfaces tend to be more hydrophilic than expected after proper cleaning, while Titanium stays somewhat hydrophobic due to that persistent oxide. This difference affects how catalyst inks spread on the surface, so it matters for drop-casting procedures. The new computational methods for material discovery are useful but they have limitations that researchers sometimes overlook. High-throughput DFT screening can predict which surface terminations are stable under given conditions, but it assumes perfect surfaces. Real foils have grain boundaries, dislocations, and residual stress from rolling and annealing. I had a case where my computational model predicted excellent ORR activity on a particular Ta surface facet, but the actual foil showed mediocre performance. The issue turned out to be that the commercial foil I ordered had a strong rolling texture that exposed the wrong crystal planes at the surface. I solved this by specifying a foil with a known annealing treatment and then verifying the surface orientation with EBSD before proceeding. That added about a week to my timeline but saved me from months of confusing results.
Get the Full Details
Another pitfall I encountered involves the difference between foil and powder forms. Many papers report catalytic data on powdered catalysts, but when you switch to foil substrates, the mass transport and active site accessibility change significantly. A material that performs well as a powder might show lower current densities on foil simply because the electrochemically active surface area is smaller. This is not a failure of the material. It is just a geometric reality that people do not always discuss clearly. When searching for new catalytic materials on these foils, I recommend starting with a matrix of simple surface treatments rather than jumping into complex synthesis. Test the bare foil, test an oxidized version, test a reduced version, and then compare. The differences will tell you more about what is happening at the surface than any single experiment. I found this approach particularly useful when working with niobium-tantalum alloy foils, where the surface composition can shift during thermal treatment and change the catalytic behavior unpredictably. The actual search methodology now involves combining these practical surface preparation steps with computational predictions. You run DFT calculations to narrow down which surface modifications to test, then you prepare your foils systematically and evaluate them. The cycle is iterative. Your experimental results inform the next round of calculations. This is not revolutionary in the sense that it is brand new. People have been doing it for years. What is different now is that the computational tools have become fast enough and accessible enough that a single researcher or small group can run meaningful screening studies without needing a national laboratory computing allocation.
I also want to mention one specific edge case that is easy to miss. When you are working with Tantalum foil in acidic electrolytes for catalysis, there is a risk of gradual dissolution at higher potentials. I noticed my baseline currents were drifting over time during long chronoamperometry experiments. At first I thought it was catalyst degradation. It was not. The Tantalum substrate itself was slowly corroding. I confirmed this by checking the electrolyte with ICP-OES after the experiment and finding dissolved Ta. The workaround was to keep the operating potential below the oxidation threshold for Tantalum in that particular acid, which meant restricting the voltage window for my catalytic tests. This limitation is not well documented in many of the papers I read, so it caught me off guard. For those interested in actually performing these searches, the key resources are the standard materials databases like the Materials Project or OQMD for computational screening, combined with standard surface science techniques. There is no single download link for a Tn foil search method because it is not a software package. It is a combination of experimental protocols and computational workflows. You build it yourself based on your specific research question. The bottom line is that working with transition metal foils for catalysis research requires attention to surface preparation, proper characterization, and an understanding of the limitations of both the experimental and computational tools. The new methods are making the process more efficient, but they are not removing the need for careful hands-on work. I still spend more time on sample preparation and validation than on the actual catalysis experiments, and that has not changed despite all the computational advances.
