Breaking Down the Xbox One 1TB Refresh
The Xbox One 1TB model was part of Microsoft's midgeneration hardware pivot, and honestly, it's one of those changes that made more sense on paper than in practice for a lot of buyers. The original Xbox One launched with 500GB and 1TB drives. When they released the revised hardware, they kept the 1TB option but made a bunch of other changes that matter more than storage capacity. The first thing most people don't realize is that the 1TB refresh isn't just a bigger hard drive bolted onto the original board. It's a completely different motherboard design. The PCB got significantly smaller, the power supply moved from an external brick to internal, and the whole form factor shrank. That matters when you're looking at repairability or modding potential.
The Xbox One 1tb Makeover Inside Microsofts Midgeneration Hardware Pivot

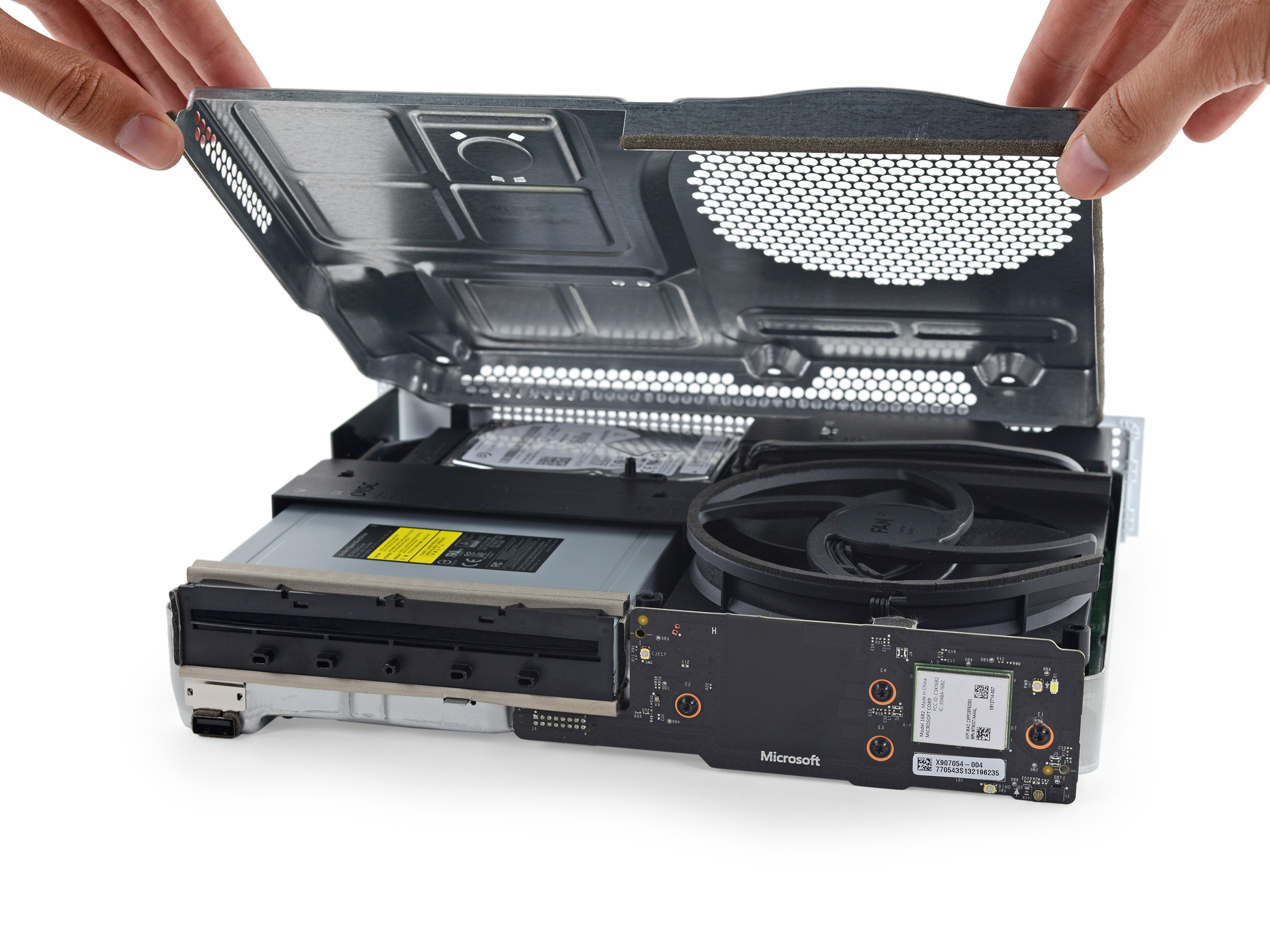

Here's what actually changed across the board. The original Xbox One had that bulky external power brick, a dedicated Kinect port on the back, and a standard Blu-ray drive. The 1TB S model dropped the Kinect port entirely, shrunk the drive bay, added HDMI pass-through, and included HDR support for displaying content. The 1TB drive itself is still a standard 2.5-inch SATA laptop drive, which is actually good news for upgrades. The drive in the 1TB model is a Toshiba MQ01ABF100 or something similar — 2.5-inch, SATA interface, 7mm thick. You can swap it for any compatible drive without issue. I've replaced a few of these drives with 1TB SSDs in these units and the process is straightforward. Remove the four torx screws on the bottom, lift the shell, disconnect the hard drive bracket, and you're in. One thing worth noting that catches people off guard: the revised motherboard has a different layout than the original. If you're working with an older drive cable or connector from a different model variant, it won't always line up. The ribbon cable routing changed too. When I was swapping a drive out of a particular unit I picked up secondhand, the SATA power connector was a different angle than what I expected. I had to use a right-angle adapter I had lying around from an old PC build. Nothing catastrophic, but it's the kind of detail that isn't in any manual.
There's also the question of storage bloat that nobody talks about enough. A factory-fresh Xbox One 1TB with no games installed actually uses about 60 to 80GB just for system files, updates, and cached data. After a year or two of regular use, that number climbs to maybe 150GB. So if you're buying a used 1TB model, check how much free space is actually showing. Some sellers list these as 1TB with zero usage, which is suspicious. Another counter-intuitive thing about these consoles: the 1TB S model actually runs slightly quieter than the original Xbox One in most scenarios. That's because the revised thermal design distributes heat across a larger surface area of the chassis itself. The original had a more concentrated hot spot near the power brick. That doesn't mean the S doesn't throttle under load — it absolutely does during lengthy GPU-intensive sessions — but the acoustic profile is genuinely better. Hard drive failures in these units are a real problem though. The drives that come pre-installed tend to develop bad sectors around the 3 to 4-year mark, especially on units that were used heavily or placed in poorly ventilated areas. I've seen this pattern repeatedly. The error manifests as games failing to load, slow dashboard navigation, and sometimes a complete failure to boot past the Xbox logo. If your 1TB model is showing these symptoms, it's probably not a software issue. Running the built-in storage diagnostic from the settings menu will confirm it, but honestly, if you know the drive age, just replace it preemptively.
Get the Full Details
For anyone considering an SSD upgrade, a Samsung 870 EVO or Crucial MX500 in 1TB works fine. Don't bother with anything smaller than 1TB because the system partition alone eats up roughly 100GB. A 500GB SSD would be worse than the original drive. The performance difference between the stock HDD and a SATA SSD is significant for load times — I'd estimate a 40 to 60 percent reduction in game load times on most titles, with some open-world games showing even bigger gains. It's not as dramatic as the jump to NVMe, but it's still very noticeable in day-to-day use. The midgeneration pivot also introduced the Xbox One S All-Digital Edition, which is a separate thing entirely with no disc drive at all. If you're shopping around, make sure you're actually getting the 1TB model with a drive and not accidentally picking up the digital-only version, which has half the storage and different motherboard components. People mix these up all the time when buying used. One more practical detail: if you're opening the console for any reason, the warranty is void once you remove those torx screws. That's obvious, but worth mentioning because some people still try to claim warranty service on opened units. Microsoft's support staff aren't stupid. They can tell from serial numbers and physical inspection whether the screws have been disturbed.
