Getting Your Theben Analog Timer Actually Working

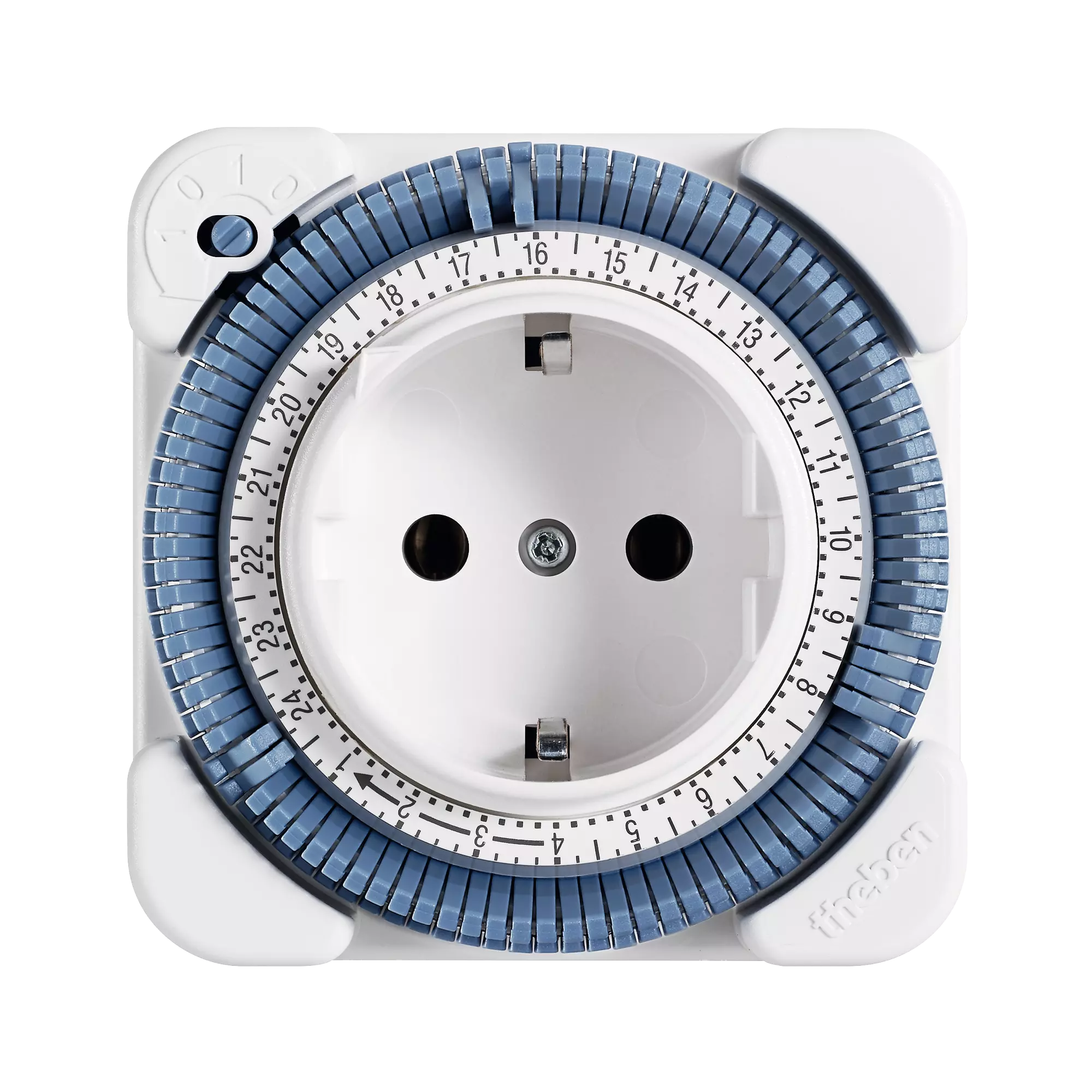

I spent last month troubleshooting a Theben Varitron 110 timer for a client who needed daylight-simulating lighting for a greenhouse. The manual was... sparse. After about three hours of fiddling with the little notched dial and trying different pin configurations, I finally got it into a rhythm. Now I want to share what I learned so you don't waste your evening. Before we get into the weeds, let me be clear about what you're actually looking at. A Theben analog timer — models like the TimeControl series or the older Varitron line — is a mechanical-clockwork device with a programmable dial. You push pins or toggle little notches around the circumference to tell it when to turn something on and off. It runs on a mainspring, similar to a wind-up kitchen timer, but with way more scheduling flexibility. The dial typically has 96 positions representing 15-minute increments across a 24-hour cycle. Once you understand that layout, everything else falls into place. Here's what nobody tells you: the 96-position dial doesn't start at midnight. The zero point on most Theben models aligns with wherever you physically rotate the outer ring when you first install the unit. This means if you mount the timer behind a switch plate where the dial is hard to read from the "top," you've essentially randomized your time reference. I worked around this by marking the actual midnight position with a tiny dot of nail polish on the timer housing. Five seconds, saved me an hour of mental math every time I checked the schedule.
Physical Setup and Initial Configuration
Your first step is mounting the timer correctly. Theben units are designed for standard European back boxes (503 series) or surface-mounted junction boxes depending on the model. Wire L to line voltage in, N to neutral, and the switched output goes to your load — usually labeled as the terminal with the arrow or "switched live." If you're dealing with a resistive load like incandescent bulbs, the rated current is typically 10A. For inductive loads like fluorescent ballasts or transformer-driven LEDs, derate to 2A or you'll void the warranty by tripping internal protections. Once the wiring is done, you need to set the current time. Find the small knob or button labeled "adjust" or "set time" — usually on the side or bottom edge of the dial housing. Rotate it until the indicator aligns with the actual hour. Do this before you program any schedule, because the timer uses the current-time reference as the baseline for all pin placements. I learned this the hard way when a client complained their garden lights were turning on at 3 PM instead of 7 PM. The pins were perfectly placed; the time base was wrong by four hours. After setting the time, wind the mechanism. Most Theben analog timers need about 30 to 40 full turns of the winding key or knob to achieve full 24-hour runtime. Turn it clockwise until you feel resistance — don't force past that point or you'll strip the mainspring. A fully wound Theben timer will maintain accuracy within plus-or-minus 15 minutes per week under normal temperature conditions. That's decent but not precision-clockmaker territory. If you need GPS-level accuracy, buy a digital smart relay instead.
Programming the Schedule

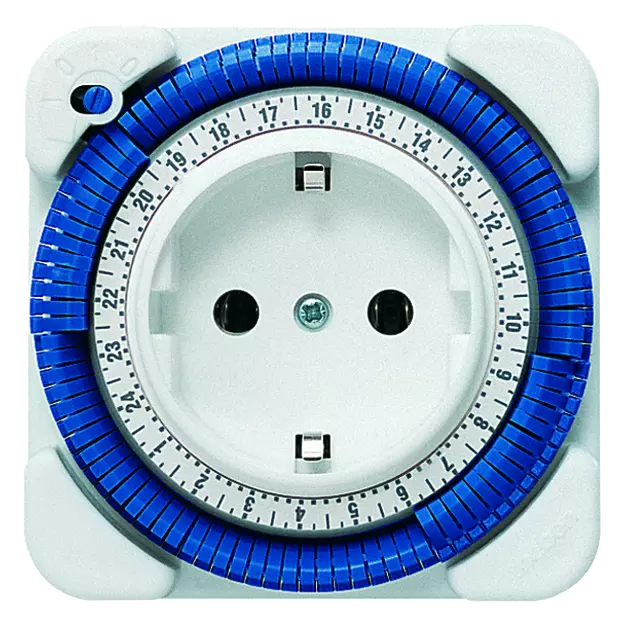

This is where the actual work happens. The dial face has 96 small notches, each representing 15 minutes. Around these notches are either raised pins you can push in or small toggle levers you flip. The convention varies by model — some Theben units use push-in pins where each pin controls a 15-minute block, while others use a series of toggles where each position represents either on or off. For the pin-based systems, here's the practical approach I use. Start by identifying your desired on and off windows. Say you want lights from 6 AM to 9 PM — that's 15 consecutive blocks of pins pushed in, starting at position 24 (6 AM) and ending at position 72 (9 PM). Push each pin firmly until it sits flush with the dial surface. If a pin pops back out, the mechanism is worn or the spring tension is too high — clean the pin channel with compressed air and try again. The toggle-based systems work differently. Each position has an on/off state, and you simply flip the switches to match your schedule. These are actually easier to modify on the fly but less intuitive for complex multi-period schedules. If you need lights on from 6 to 9 AM, then again from 5 to 9 PM, with the middle hours off, the toggle system handles that cleanly. Just remember to flip the switches in sequence rather than skipping around — I once had a client leave position 48 (noon) in an indeterminate half-flipped state, which caused the timer to behave erratically for two days before I spotted it.
Get the Full Details
A Real Problem I Faced
Last year I installed a Theben TimeControl TC-96 in a holiday cottage where the owner wanted the heating to maintain 12°C overnight but drop to 8°C during the day to save energy. The program I set looked correct on paper — twelve-hour on periods and twelve-hour off periods with temperature setpoints wired through a separate thermostat. But after the first week, the heating was cycling on for only five minutes at a time instead of running for the full scheduled duration. The issue wasn't the timer programming. It was the thermal inertia of the old cast-iron radiators. The thermostat in the hallway was sensing the immediate temperature change from the timer switching the boiler, but the actual room air temperature was lagging by 45 minutes. By the time the thermostat registered the target temperature, the timer had already cycled the next on period, creating a perpetual short-cycling pattern that wore out the boiler relay and frustrated everyone. My workaround was dead simple but required understanding the interaction between mechanical timer resolution and thermal mass. I changed the schedule to use 30-minute on/off blocks instead of 15-minute ones. The Theben timer could still approximate the same average temperature curve, but the longer cycles gave the radiator system time to reach thermal equilibrium before the next switch. The boiler ran fewer cycles per day, the temperature stayed more stable, and the homeowner stopped calling me at 11 PM wondering why the house was freezing. Lesson: mechanical timers have inherent switching frequency limits, and ignoring thermal dynamics will beat you every time.
Common Pitfalls and How to Avoid Them
One thing that catches people out is the difference between absolute timers and relative timers. Some Theben models maintain a continuous 24-hour loop regardless of when you first power them on — these are absolute timers. Others require you to "zero" the schedule relative to the current time — these are relative timers. Mixing up the two will make your carefully programmed schedule run backwards or offset by several hours. Check your model number and consult the specific datasheet before assuming how the timer behaves on first power-up. Another gotcha is the battery backup feature found on later-generation Theben analog timers. Models like the Varitron E+ include a small lithium cell that preserves the schedule during power outages. The battery typically lasts three to five years, but once it dies, the timer forgets its program and defaults to continuous-on mode. I always test the battery retention by disconnecting mains power for a few minutes after programming — if the schedule survives, you're good. If it resets, replace the battery immediately and reprogram. Dust and debris under the dial pins is a silent killer of analog timers. In environments with sawdust, pet hair, or general grime, the pins can stick partially depressed and fail to return to their original position. This causes the timer to extend on-periods or skip off-periods unpredictably. I keep a small can of compressed air near my workbench and give every installed Theben timer a quick blast before closing up the switch plate. Takes ten seconds and prevents at least one service call per season.
When Analog Doesn't Cut It
Despite my fondness for the mechanical simplicity of Theben analog timers, there are honest scenarios where they're the wrong tool. If you need seasonal daylight-adjustment scheduling — say, shifting your light schedule by 30 minutes later each week as winter approaches — an analog timer cannot do this. You'd need to manually adjust the pins every seven to ten days, which defeats the purpose for most people. Similarly, analog timers lack holiday override capability. If you're going away for two weeks and want all schedules paused, you can't just flip a switch. You'd need to physically reposition every pin or disable the timer entirely. Digital smart relays handle this trivially through an app. Power consumption is another factor. Theben analog timers draw roughly 2 to 3 watts continuously from the mains just to run the clock mechanism. Over a year, that's about 17 to 26 kilowatt-hours — roughly the cost of leaving a dim bulb on constantly. For most household applications this is negligible, but if you're tracking energy usage closely or installing dozens of these units across a building, the cumulative draw matters.
If you need astronomical timekeeping based on sunrise and sunset coordinates, zone-based scheduling across multiple circuits, or remote override capability, a Theben analog timer is simply not the right choice. The brand does make digital and programmable logic controller alternatives that handle these cases elegantly. I'd recommend the Theben DigiTime series for anything requiring more than basic on/off scheduling.
Maintenance and Longevity
A well-maintained Theben analog timer will run for 10 to 15 years before the mainspring loses tension or the gear train develops excessive play. The actual switching contacts inside tend to fail before the timing mechanism itself. If your timer is keeping accurate time but not actuating the load, the contactor may need cleaning or replacement. Some Theben models allow contactor swap without replacing the entire unit, which saves money over buying a new timer. Annual inspection is worth the fifteen minutes it takes. Remove the cover, check that all pins are seated properly, verify the winding tension feels firm, and confirm the dial rotates smoothly without binding. Clean any accumulated dust from the gear housing with a soft brush and compressed air. Reapply a tiny amount of light machine oil to the pivot points if movement feels stiff — but avoid getting oil on the contact surfaces or the dial friction mechanism. If you're using the timer to control high-inrush loads like large LED drivers or motor-starting circuits, consider adding a soft-start circuit or a solid-state relay in series. The mechanical contacts in Theben timers are rated for standard loads, but repeated high-current inrush events can pit and weld the contacts over time, leading to either failure to open or failure to close. A €15 SSR upgrade can extend your contactor life by a factor of three.
There's something satisfying about a properly set analog timer. No firmware updates, no Wi-Fi drops, no subscription services. It just ticks along, executing its schedule with the reliability of a wind-up watch. When it works right, you forget it's even there. And honestly, that's exactly what you want from something managing your daily life.
