What You're Actually Dealing With

The oil change on a BMW X5 isn't a simple drain-and-fill like it is on a 2004 Camry. You're working with an oil filter housing assembly that sits on top of the engine, connected by plastic lines, and the oil filter canister underneath. The car's computer also tracks service intervals electronically, which means just topping off the oil isn't enough. You have to reset the service reminder through the dashboard menu, or the next time you start the engine, it's still going to flash that wrench light at you whether you actually changed the oil or not. I've done probably two dozen of these across my own X5s and a few friends'. The process takes me about 45 minutes from start to finish if everything goes smoothly. That includes warming the engine first, draining, swapping the filter, refilling, and resetting the interval. A shop will charge you around $120 to $180 for this exact job. Doing it yourself drops that to roughly $45 in parts and oil.

The Ultimate Guide To BMW X5 Change Oil Everything You Need To Know

What You'll Need

You need a few specific tools beyond the standard socket set. The oil filter housing bolts are 27mm. Not 26. Not 28. Twenty-seven. A proper deep socket makes this go without stripping anything. You also need a large clamp or a oil filter strap wrench for the canister itself, which is located under the engine in the wheel well. If you don't have access to an inspection hole from underneath, you can try to reach it from above once you pop the plastic engine cover, but it's tight. A catch pan that holds at least six quarts is necessary because the X5 takes more oil than you might expect. For the oil itself, the factory recommendation is 5W-40 full synthetic that meets BMW's LL-01 specification. Castrol LL-01 5W-40 is what BMW actually fills these with at the plant. The X5's engine bay is crowded, and you need the right viscosity. Thinner oil might flow better in cold starts, but the N47 and N55 engines that most X5s carry run hot and under high load. Sticking to spec keeps the timing chain tensioners happy. The oil filter element itself is a paper cartridge housed inside a metal canister. Part numbers vary by model year. For an X5 xDrive35i with the N55 engine around 2014 to 2018, the filter is Mahle OH16020 or the BMW OEM version 11 42 7 512 384. The engine oil gaskets for the drain plug are aluminum crush washers. Replace them every time. They cost about three dollars a piece and skipping one will result in a slow leak that finds its way onto your driveway within a day.

The Actual Procedure

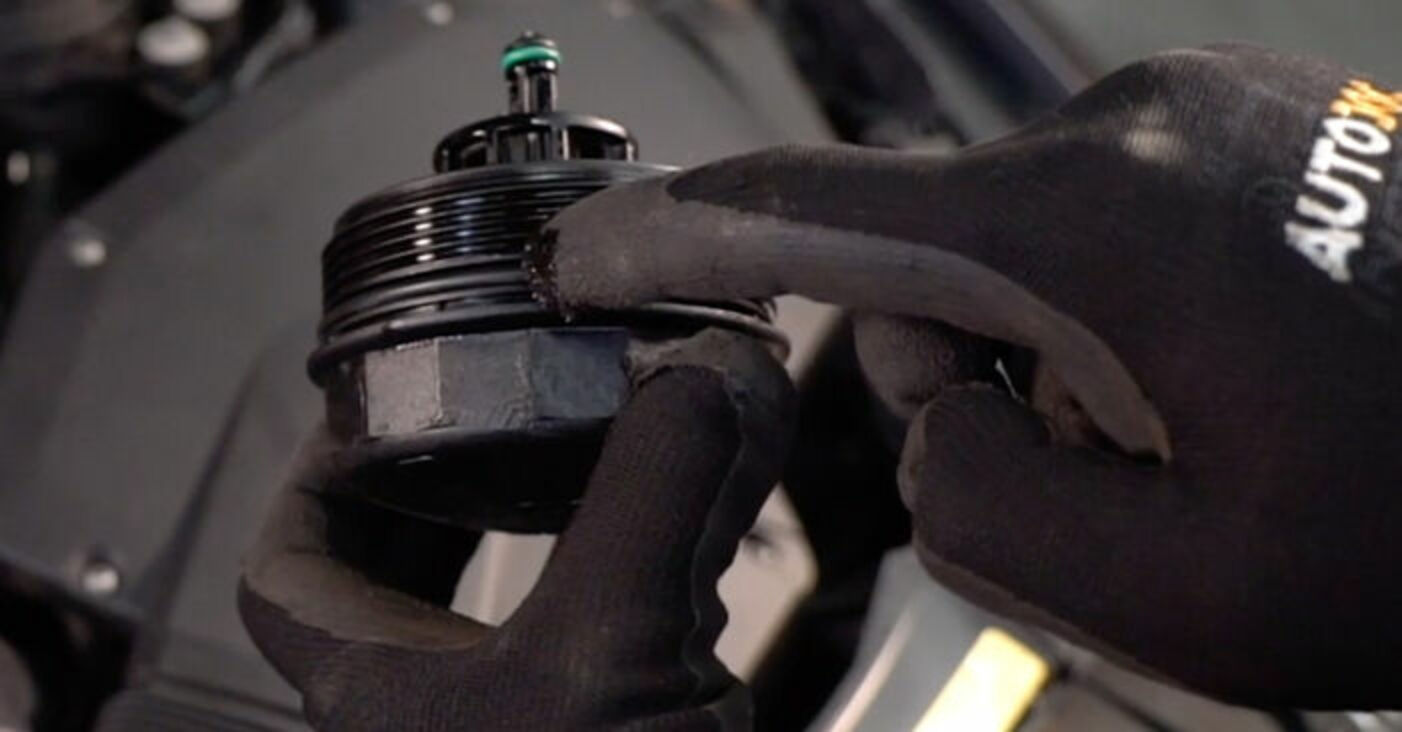

Start by driving the car for at least ten minutes so the oil is warm. Warm oil drains faster and carries more suspended contaminants out with it. Park on level ground, engage the parking brake, and open the hood. The oil fill cap is on top of the engine. Remove it before you start draining anything. This breaks the vacuum and lets the oil flow out cleanly instead of glugging for twelve minutes. Locate the oil filter housing on top of the engine. It's a black plastic assembly with two lines running to it. Loosen the two 27mm bolts securing the housing cover. Do this slowly. There's residual pressure in the system, and hot oil will squirt out once those bolts break free. Place your catch pan underneath, then fully remove the bolts and lift the cover off. The old oil drains from here. Meanwhile, get underneath the vehicle and locate the oil pan drain plug. It's on the bottom of the aluminum pan. Use the appropriate socket and loosen it. Again, expect a rush of hot oil. Move the drain plug out of the way quickly and let it drain completely. This takes maybe eight to ten minutes for a full drain. While that's draining, remove the old oil filter element from the canister. It's just a pull straight out. Inspect the O-ring on the canister neck. If it's cracked or flattened, replace it. The new filter kit usually comes with a spare. Install the new filter element, make sure the O-ring is seated properly, and reinstall the canister. Torque it down hand-tight plus a quarter turn. Don't overtighten. These are aluminum components and the threads are soft. Now clean the oil filter housing surface on top of the engine. There's usually a layer of sludge buildup around the gasket mating surface. Wipe it clean with a rag. Place the new gasket on the housing, set the cover back on, and thread the two 27mm bolts by hand. Tighten them in a cross pattern to about 10 Newton-meters. That's roughly 7 foot-pounds. A ratchet with a torque setting works fine. Over-tightening cracks the plastic housing. Refill the engine with 8.5 quarts of 5W-40 synthetic. Start with 7.5 quarts, then check the dipstick after running the engine for a minute. The X5 uses an electronic oil level sensor rather than a traditional dipstick. Turn the ignition on without starting the engine, navigate to the oil level menu using the iDrive controller, and select "Measure oil level." The system pumps the oil through the sensor and gives you a reading. Add oil in half-quart increments until it lands between the minimum and maximum marks. The sweet spot is usually right at or just below the max line. Do not overfill. An overfilled engine creates aerated oil, which loses its lubricating properties and can damage the VANOS system on the N55. Start the engine and let it idle for about 30 seconds. Check for leaks around the filter housing and the drain plug. Wipe everything down. Then cycle through the service reset procedure: ignition on, hold the trip reset button, select "Reset service," confirm. The system acknowledges the reset and you're done.

Things That Go Wrong

The first time I did this, I didn't warm the engine. The oil was cold and viscous, and about a quart stayed trapped in the passages and the filter housing. Draining took nearly twenty minutes and the pan was still half-full of dark, thick oil. Warm it up. It makes a real difference. Another issue is the oil filter canister O-ring. If it's not seated correctly when you reinstall the canister, oil will weep from the seam between the canister and the engine block. I found this one morning when I parked in the garage and came back to a small puddle. The fix was dropping the canister, replacing the O-ring, and reseating it. Always inspect that ring. It costs four dollars. A third problem specific to the N47 diesel X5s is the oil filter housing gasket. The plastic housing on these engines tends to warp slightly over time, especially if the car has been subjected to repeated thermal cycles from track use or towing. Even with a new gasket, you can get a slow seep. The workaround is to sand the mating surface flat on a piece of 400-grit sandpaper laid on a flat glass surface. Two or three passes is usually enough to bring it back into spec. If the housing is badly warped, replacement is necessary, and the aftermarket options are cheaper than OEM.

Interval and Longevity

BMW's condition-based servicing system calculates intervals based on driving style, temperature, and distance. In mixed driving, that often comes out to 10,000 to 15,000 miles. I change mine every 7,500 miles regardless of what the dashboard says. The difference in oil condition at 7,500 versus 15,000 is stark. At the longer interval, the oil is thin, the filter element is saturated, and the metal particles suspended in the oil are visible to the naked eye. Shorter intervals are cheaper than rebuilding a timing chain tensioner that failed because of sludge buildup. The transmission fluid, differential fluid, and spark plug gaps are separate maintenance items that don't get addressed during an oil change. Don't let a shop tell you they did. They didn't.
