2016 Ford Escape Battery Guide

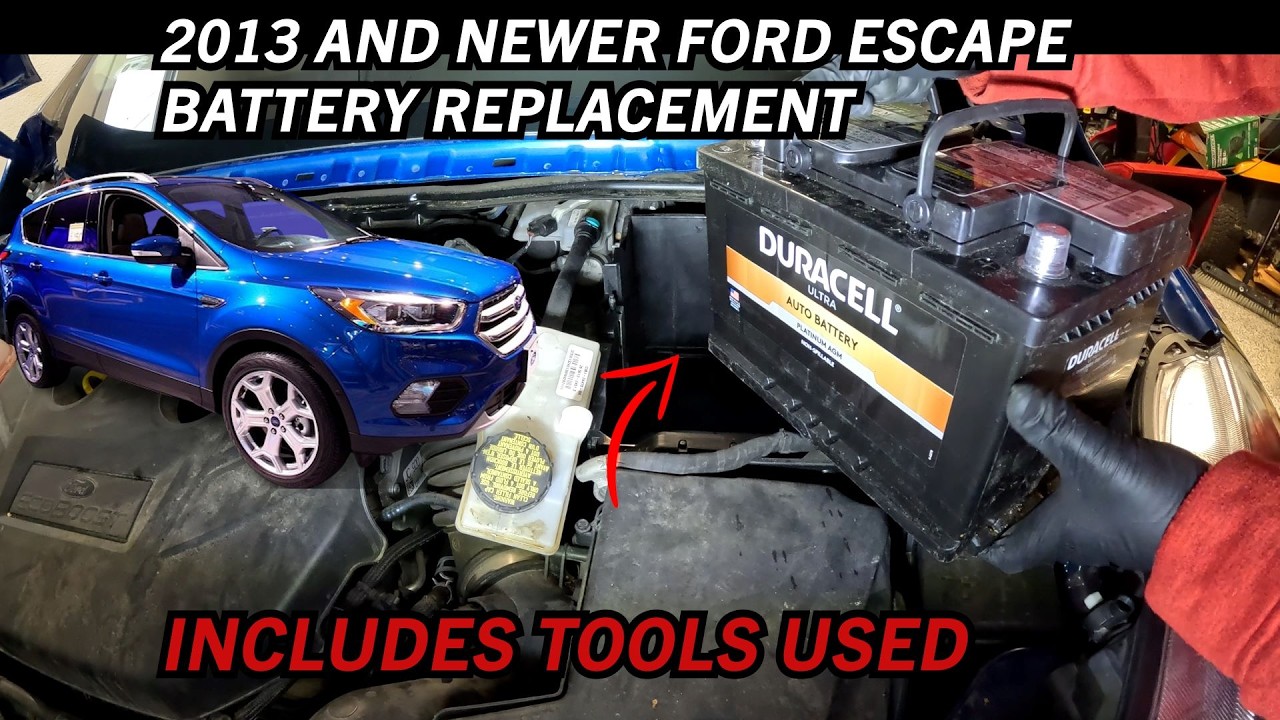

The 2016 Ford Escape uses a Group 48 battery as stock equipment across all trim levels. That is the H6 model, generally rated at around 650 cold cranking amps and 75 amp-hours. If you open the hood and look at the positive terminal cover, there is usually a label that confirms this. A lot of parts store lookup tools will default to a 550 CCA battery because they try to keep costs down, but that is not what the vehicle was designed for. Running a lower-capacity battery in this car tends to cause premature failure, especially in cold climates or with the Stop/Start system active. Here is how the replacement actually works. The negative terminal is mounted to a bracket on the battery tray, and the positive terminal connects through a plastic cover to a stud on the hold-down clamp. You remove the hold-down bolt first, then the negative cable, then the positive cable. Slide the battery out. Install the new one in reverse order. That is the basic procedure. The part runs between one hundred twenty and two hundred eighty dollars depending on brand and warranty tier. AGM batteries are more expensive but handle the electrical load better. I ran into a specific issue a few months ago with a 2016 Escape that kept dying after sitting for two days. The battery tested fine at the parts store. The alternator output was good at fourteen point two volts under load. The problem turned out to be the battery kill switch under the rear cargo panel, which is part of the Stop/Start system's energy management strategy. When that relay sticks partially closed, it draws about forty milliamps of parasitic drain. Standard diagnostic procedures miss this because most technicians pull fuses one at a time and stop once the draw drops below fifty milliamps. Forty milliamps will still kill a battery over forty-eight hours. The workaround was unplugging the relay connector on the under-hood fuse box and confirming the drain disappeared, then replacing the relay. It cost twelve dollars and fixed the problem permanently.
Ford added intelligent battery sensing to this generation. The IBSS module monitors battery temperature and state of charge, and it adjusts the alternator charging voltage accordingly. This means you cannot just install any compatible battery and expect the vehicle to behave normally. After replacement, you need to register the new battery through a scan tool. Ford's onboard diagnostics do not have a built-in battery registration routine like some European brands, so you will need an OBD2 scanner that supports Ford-specific protocols. Launch, Autel, or Forscan on a laptop will all work. If you skip registration, the car will continue using the charging parameters stored for the old battery, which typically results in undercharging and shortened battery life. The charging system on the 2016 Escape has a known weakness at the alternator voltage regulator. It tends to fail around sixty to eighty thousand miles, and when it does, the alternator either stops charging entirely or charges at a constant high voltage regardless of battery state. The symptom is inconsistent: sometimes the battery light comes on, sometimes it does not. The dash will show erratic voltage readings if you monitor them live. Replacing the voltage regulator is cheaper than replacing the whole alternator, but the job requires removing the alternator from the vehicle first. The alternator bolts are accessible from underneath the engine bay, which means you need jack stands and good clearance. The whole process takes about an hour for someone who has done it before, maybe three hours if it is your first time. Battery terminal corrosion is another common problem on these vehicles. The positive terminal is more exposed and develops sulfate buildup faster, especially in areas where road salt is used in winter. Corrosion increases resistance at the connection point, which reduces cranking power and can cause voltage drop under load. Cleaning the terminals with a wire brush and applying dielectric grease prevents this from recurring quickly. I replaced the terminal posts themselves on one vehicle where the sulfate had eaten through the lead casting. The posts were soft and pitted. Aftermarket replacement posts exist, but they are flimsy. Swapping in a new battery is cleaner.
If you are doing this yourself, here is what you need: a ten millimeter socket for the terminal bolts, an eight millimeter socket for the hold-down clamp, and possibly a twelve millimeter wrench for the negative cable nut on the chassis ground strap. The ground strap runs from the battery tray to the firewall, and it corrodes at both connection points. Cleaning or replacing that strap is something most people overlook until they realize the battery is getting power but the vehicle still cranks slowly. A clean ground connection can add fifteen to twenty percent to effective cranking amperage delivery. AGM versus flooded lead-acid is worth discussing. The 2016 Escape's Stop/Start system benefits from AGM, but it is not strictly required unless your trim includes the hybrid variant, which uses a completely different battery pack. For the standard gasoline models, a quality flooded battery from a reputable brand like Odyssey or Exide will work fine for the price difference. AGM handles deeper discharge cycles better and resists sulfation longer. The trade-off is cost and weight. AGM batteries are heavier and about forty percent more expensive. If you live somewhere that stays above freezing most of the year, the flooded option is sufficient. If you deal with regular sub-zero temperatures or plan to keep the vehicle past seven years, AGM makes sense. The biggest mistake people make is buying a battery based solely on CCA rating without checking the Reserve Capacity and cycle life specifications. Ford's original equipment battery has a reserve capacity of approximately one hundred minutes, meaning it can power essential accessories for that long if the alternator fails. A cheaper replacement might only offer sixty minutes. In a real failure scenario, that difference determines whether you get home or sit on the side of the road waiting for a tow. Always compare RC, not just CCA.
Get the Full Details
Battery lifespan in this vehicle typically runs between four and six years under normal conditions. Factors that shorten life include frequent short trips under ten miles, extreme heat exposure with the hood insulated poorly, and leaving accessories on while the engine is off. The 2016 Escape's battery is located under the hood in a fairly confined space, so engine heat soaks into it regularly. Parking in a garage or using a reflective windshield sunshade on hot days can extend battery life by a year or more. It is a small thing that most people do not think about until the battery is already failing.
