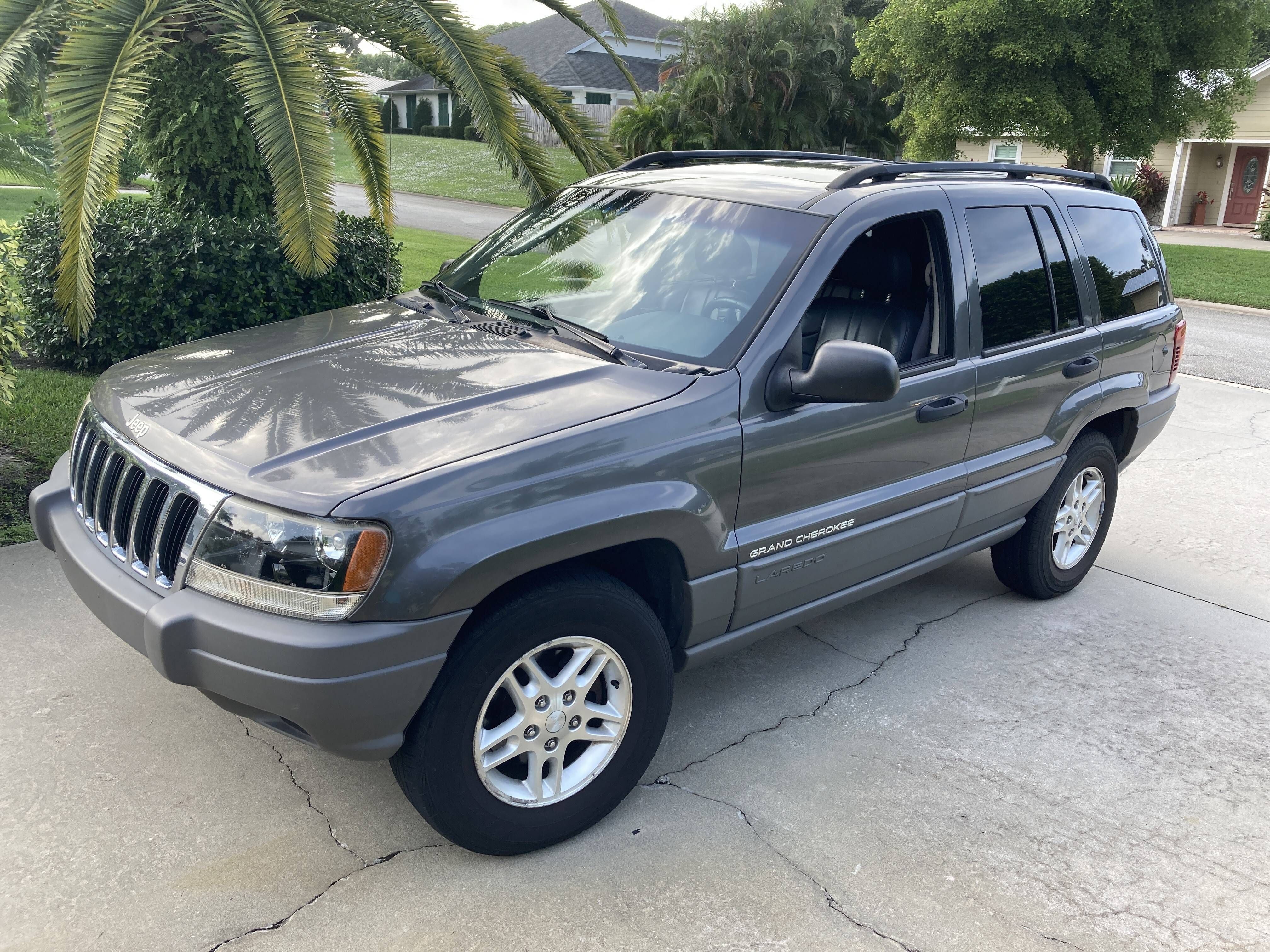

What Actually Happens When You Own a 2002 Grand Cherokee Laredo
The 4.0L six will outlive most things. That’s the one honest thing to say upfront. The engine is basically the same AMC design from the 1980s, oversquare, cast-iron, and utterly unexciting. It doesn’t have VVT, it doesn’t have variable timing, it just runs. I’ve seen ones at 220k with original internals and only a valve job and some seals. The real story isn’t the engine. It’s everything bolted to it and the wiring harness that connects it. Reliability is a spectrum, and this Jeep lives squarely in the “maintain it or suffer” zone. I picked up a ’02 Laredo with 98k on it because the previous owner had kept the maintenance ledger. Turned out the ledger was mostly lie. Water pump was cracked, differential fluid was metal soup, and the transfer case had been leaking since 2014. Still ran. Barely. That’s the baseline. These things tolerate neglect longer than you’d expect until they don’t. The top-end is fine. Heads don’t crack, cam bearings last, lifters are simple hydraulicUnits that don’t need adjustment. The things that kill these engines are secondary. The rubber timing cover seal is the big one. It’s not a gasket, it’s a molded rubber o-ring that sits in a groove on the front timing cover. When it hardens — and it will, usually between 90k and 120k — oil leaks down the front of the block and pools in the oil pan. You’ll see it as a wet seam between the block and pan, or sometimes just a slow drip onto the crossmember. The fix is replacing the seal, but you have to drop the oil pan and clean the mating surfaces. Some people use RTV over it. That works until it doesn’t, then you’re hunting for leaks a year later.
The water pump is another point of failure. The impeller is aluminum and the housing is thin. Coolant gets hot, the aluminum fatigues, and you get weeping at the weep hole. I replaced one at 110k and found the thermostat housing cracked too. These pumps cost $40 at the parts store and take about two hours with a basic socket set. If you ignore it, you’ll be towing it by 125k. The exhaust manifold gasket is cheap and easy, but people miss it until the noise drives them nuts. You’ll hear a ticking that gets louder under acceleration. Replacing it takes an hour and a can of penetrating oil. Don’t skip it. A cracked manifold will melt your heat shield and set off a check engine light that means nothing.
The 42RLE Transmission — The Weak Link
This is where the 2002 Grand Cherokee earns its reputation. The 42RLE is a 4-speed automatic that was designed for lighter vehicles. When you put it in a 4,500-pound SUV with a 4.0L that makes torque low and wide, it gets worked. Shifts become firm, then harsh, then fail entirely. The common failure points are the solenoid pack and the valve body wear. You’ll notice it as delayed engagement into drive, or a clunk when shifting from park to drive after sitting overnight. I had a ’02 that developed a hard 2-3 shift at around 130k. The trans fluid was dark and smelled burnt. Flushing it didn’t help. Rebuilding the valve body and replacing the solenoid pack got it back to normal for another 40k miles. The solenoid pack alone is about $120 and takes 90 minutes to swap. If your shift quality is getting rough, do this before the transmission goes. A rebuild runs $1,800 to $2,500 depending on who you hire. The transmission cooler lines are another issue. They run along the frame and get hit with road debris. I found a pinhole leak on one line at 105k. Transmission fluid was dripping onto the driveshaft. The fix is replacing both lines — they’re cheap, maybe $60 for a pair, and they bolt on with flare nut wrenches. Don’t try to patch them. These lines pressurize to 150 psi and will fail again.
Get the Full Details
Electrical Gremlins — The Real Killer
Jeep didn’t do much to improve wiring quality between 1999 and 2004. The grounds are the problem. There’s a main ground strap from the battery negative to the body, and it runs through the firewall. Over time it corrodes. You’ll get intermittent no-start conditions, dashboard lights flickering, and phantom battery drains. The worst case is the “parasitic draw” that kills your battery while parked. I spent three days troubleshooting one of these on a friend’s Jeep. Turned out the glove box light had a short, but the real issue was a corroded ground strap under the driver’s side dash that was making intermittent contact. Clean the grounds, replace the strap, and you’ll save yourself weeks of headaches. The ignition switch is another failure point. It’s mounted on the steering column and gets hot. The internal contacts wear and you’ll get stalling at red lights or failure to restart after hot soaks. The fix is an aftermarket ignition switch from Pertronic or similar. They cost $80 and bolt in directly. Make sure you buy the one with the anti-theft connector if your Jeep has the security system. The instrument cluster has a known issue with the solder joints on the PCB. The needles will stick or bounce, and the backlight fuses blow intermittently. I’ve seen clusters go at 110k with no warning. The repair is reflowing the solder on the back of the board, which takes about 30 minutes if you have a temperature-controlled iron. Don’t skip this if you plan to keep the Jeep past 120k.
Four-Wheel Drive System — Simple But Not Indestructible
The part-time 4WD system on the WJ is straightforward: a NV242 transfer case, front and rear differentials, and a generic front axle. The transfer case itself is robust. I’ve seen them go 200k without service. The fluid should be changed every 30k miles. Use ATF+4, not synthetic. The synchronizers in the 4WD mode are designed for automatic transmission fluid, and synthetic breaks them down over time. The front axle is the weak point. The CV joints wear, the wheel bearings go, and the axle seals leak. I replaced both front axles at 115k because the inner CV joints were shot. The symptoms are vibration under acceleration in 4WD and clicking when turning. Replacement axles run $150 each for remanufactured units. Don’t buy the cheap ones. They’ll fail in 20k miles. The front differential is generally fine. The pinion seal leaks, but that’s routine maintenance. The differential itself has no known weaknesses. Change the gear oil every 30k miles and use 75W-90 GL-5. The stock gear ratio is 3.54 or 3.92 depending on the options. If you’ve got the 3.92, you’ll notice the transmission working harder. That’s normal.
Suspension and Steering — Wear Items, Not Failures
The suspension on the WJ is independent front with coil springs and a live rear axle. It’s not sophisticated, but it’s proven. The upper control arm bushings wear first. You’ll notice it as vague steering and clunks over bumps. Replacement upper control arms with new bushings run $60 each. Do both at the same time. The lower control arm bushings last longer, but when they go, they go hard. Replacement is $80 per side and takes about an hour with a bushing removal tool. Don’t try to press them out with a bolt and wrench. You’ll damage the knuckle. The sway bar links are cheap and easy. $25 each and they take 15 minutes to replace. If you hear a clunk when going over bumps, check these first. They’re the most common suspension noise source on these Jeeps.
The power steering rack leaks internally. You’ll notice it as hard steering at low speeds and fluid pooling under the passenger side. The fix is a rebuild kit or a replacement rack. Replacement racks run $400 to $600 remanufactured. The rebuild kit is $80 and takes two hours. If you’re handy, rebuild it. If not, buy the reman and be done with it.
Rust — The Silent Destroyer
The WJ rusts in specific places. The front suspension towers are the first to go. Look underneath the fenders where the strut mounts bolt to the body. If the metal is flaky or has bubbles under the paint, walk away. The rust spreads internally and structural integrity is gone before you see it externally. The rear leaf spring mounting points also rust. Check where the brackets bolt to the frame. If the bolts are seized or the brackets are cracked, the frame is compromised. Frame rust is rare but possible. Inspect the underside of the frame rails for flaking paint and soft metal. The wheel wells and rockers rust from road salt and trapped moisture. This is cosmetic unless it gets bad enough to eat through the floor pans. Treat it early with fluid film or undercoating. Don’t use spray-on bed liner over rust. It traps moisture and makes the problem worse.
Maintenance Schedule That Actually Works
Change the engine oil every 5,000 miles. Not 7,500. The 4.0L runs hot and the oil breaks down faster than the manual says. Use 10W-30 full synthetic. The factory fill is 5W-30 conventional, but synthetic lasts longer and protects better at high temperatures. Change the transmission fluid and filter every 40k miles. Yes, every 40k. The 42RLE runs hot and the fluid degrades. If you tow or drive off-road frequently, do it every 30k. The filter is $15 and the fluid is $12 for a quart. You’ll need four quarts for a drop-and-fill, six for a flush. Change the transfer case and differential fluids every 30k miles. This is cheap insurance. A quart of ATF and a quart of 75W-90 cost about $25 total. The labor is ten minutes per unit if you have a jack and sockets.
Replace the spark plugs every 30k miles. The 4.0L uses platinum plugs that last longer than copper, but they still wear. Use NGK or Denso. The factory Champion plugs are garbage and fail at 20k sometimes. I learned that the hard way. Replace the air filter every 15k miles. The 4.0L breathes well when the filter isn’t clogged. A dirty filter reduces power and increases fuel consumption by about 10 percent. The filter costs $12 and takes five minutes to change.
What to Look For When Buying One
Start it cold. Listen for ticking from the lifters. Some tick when warm — that’s normal. Loud ticking when cold means worn lifters or low oil pressure. Check the oil pressure gauge if the Jeep has one. If it’s not above 20 psi at operating temperature, the bearings are worn. Test the 4WD system. Engage 4WD high and low at a stop, then drive in a circle on dry pavement. If the binding is severe, the front axle is fighting the rear. That’s a transfer case issue or a wrong tire size mismatch. Make sure the 4WD engages and disengages smoothly. It should click into place without grinding. Check the transmission shifts. Drive it hard for a few minutes, then shift into drive. It should engage promptly without a delay. If there’s a hesitation, the solenoid pack is failing. Ask for $500 off the price for that alone.
Lift the hood and check for oil leaks around the timing cover and valve covers. Minor seepage is normal. Active dripping is not. Check the coolant for oil contamination. A milky substance on the dipstick means a bad head gasket or a cracked head. These are rare on the 4.0L, but they happen. Inspect the undercarriage for rust, especially the suspension towers and frame rails. Take a flashlight and look at the rear differential mounting brackets. If they’re rusted through, the axle will drop out. Test all the electronics. Windows, locks, lights, HVAC, 4WD indicator lights. If anything doesn’t work, assume the wiring is compromised somewhere. Rectifying electrical issues on these Jeeps is a part-time job.
The Bottom Line
A 2002 Grand Cherokee Laredo with the 4.0L is a solid vehicle if you find one that’s been maintained and address the known issues proactively. Budget $2,000 to $3,000 in immediate repairs if the history is unclear. If the previous owner kept records and changed fluids regularly, you’re looking at a truck that’ll run another 100k miles with routine maintenance. Avoid the ones with hard shifts, electrical gremlins, and rust. Those problems compound. Fix one and two more appear. The reliable ones are the ones where someone cared enough to change the fluids and clean the grounds. Those are rare, but they exist. I found mine at a estate sale for $3,200 with 87k miles and a complete service record. It needed a water pump and some suspension bushings. Five thousand dollars later it was better than new. Three years and 40k miles later it still runs like that.
