Surface Area Calculations You Actually Need

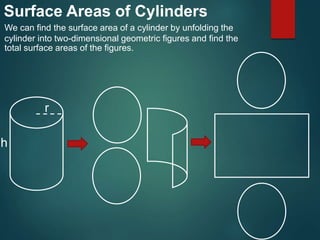

Most people learn the cylinder surface area formula in high school and never use it again until something leaks. The formula itself is straightforward: two circles plus a rectangle. Total surface area equals 2r² plus 2rh. That's it. But the real work happens when you're actually applying it to something that isn't a textbook problem. I spent three weeks last year dealing with a custom pipe insulation job where the standard formula kept giving us wrong material estimates. The pipe had a diameter of 14 inches and a length of 96 feet. We were ordering corrugated fiberglass wrap and the supplier quoted us based on nominal pipe size, not actual outside diameter. The difference between 14-inch nominal and the actual 14.086-inch OD meant we were short about 3.2 square feet of coverage per linear foot. Over 96 feet, that added up to roughly 307 extra square feet of material. I stopped using catalog dimensions entirely after that and started pulling actual OD measurements from the manufacturer spec sheets every single time. The lateral surface area alone — that's the 2rh part — tells you how much wrapping, cladding, or insulation a cylindrical object needs. The two end caps, the 2r² component, matter when you're sealing something or calculating total paint coverage. In practice, you rarely need both unless you're working with a closed vessel. Open-ended pipes, structural columns, dowels, rollers — you drop the end caps and just do lateral area. Knowing which version to use is where most mistakes happen, not in the arithmetic.
Here's a practical walkthrough. Say you need to powder-coat steel dowels that are 2 inches in diameter and 18 inches long, open-ended, so no caps. Radius is 1 inch. Lateral area is 2 times times 1 times 18, which gives you about 113.1 square inches per dowel. If you're coating 50 of them, you're looking at roughly 5,655 square inches total, or about 39.3 square feet. Powder coating typically consumes between 5 and 10 grams per square foot depending on thickness and part geometry. At the high end, you're ordering around 390 grams of powder. At the low end, maybe 200 grams. Order 500 grams to cover losses and touch-ups. The counter-intuitive part that trips people up regularly is that radius changes matter more than you'd expect because it's squared in the cap formula. Going from a 3-inch pipe to a 4-inch pipe doesn't add a third of the area — it adds about 78 percent more lateral surface area for the same length. The end caps jump from 28.3 square inches total to 50.3. People approximate linearly and then wonder why their material order is always off. Another thing nobody warns you about: when you're dealing with threaded fittings, gaskets, or anything with irregular surfaces on a cylinder, the calculated smooth-surface area will underestimate what you actually need by 10 to 25 percent depending on how aggressive the threading or texture is. I started adding a 15 percent waste factor to every custom job involving flanges or couplings. It's a small adjustment but it stops the 2 PM phone calls asking for an emergency reorder.
If you're working with very long cylinders where heat retention matters — like hot water pipes in a commercial building — the surface area calculation becomes the foundation for your heat loss estimate. You multiply the lateral area by the temperature differential and a thermal conductivity factor. A bare 2-inch steel pipe at 180°F in a 70°F room loses roughly 250 BTU per hour per foot of length. Insulating it drops that to around 30 to 40 BTU per hour per foot. The surface area number is what drives both calculations, so getting it right matters for energy modeling too. The main limitation of this approach is that it assumes a perfect geometric cylinder. Real-world objects have seams, welds, flanges, bolts, and surface imperfections that change everything. If you're doing this for structural engineering or pressure vessel design, you need finite element analysis, not a calculator app. The surface area formula is a starting point, not a finish line. For rough estimates on field work, it's fast and usually accurate enough. For anything where failure has consequences, you go beyond it. I keep a spreadsheet with a simple input section for radius, height, and whether the ends are open or closed. It spits out lateral area, cap area, and total area in both square inches and square feet. Takes about 30 seconds to fill in and gives me the numbers I need before I even open the quote form. I'd recommend building one if you do this more than twice a year, instead of reaching for a calculator every time.
