Replacing the Alternator on a J35A Engine Is Straightforward If You Know Where the Pain Points Are

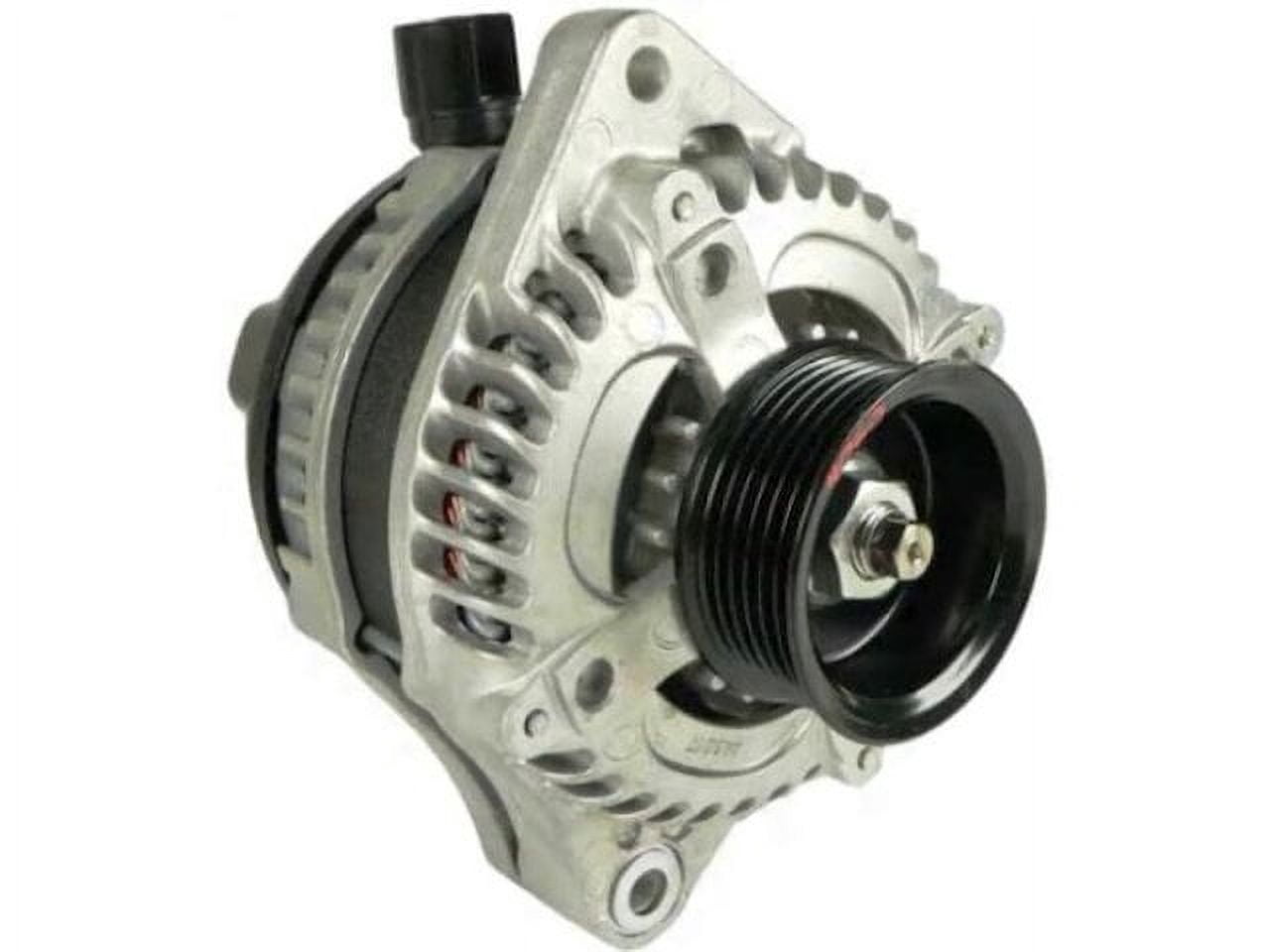

The 2008 Acura MDX uses a Denso 150-amp alternator mounted on the driver's side of the 3.7L V6. It sits low and forward, tucked behind the accessory drive belts and sandwiched between the engine block and the subframe. Most people who open the hood assume this is going to be a nightmare because of how cramped the bay is. It isn't, provided you don't try to beat it into submission with force. The real trick is patience and knowing the correct sequence. I've pulled and installed probably twenty of these over the years. The Denso unit that came from the factory is solid. The housing casts clean, the brushes don't wear out prematurely like some of the cheaper aftermarket replacements, and the voltage regulator tends to last well beyond 100,000 miles if the cooling air path isn't blocked. That said, they do have a few predictable failure modes that show up around the same mileage window, and it's worth understanding which ones are fixable with basic tools and which ones require a trip to the parts counter for a new assembly. Here's the thing that catches people off guard. The alternator on this engine doesn't just fail because the internal electronics die. A lot of the time, the problem starts at the wiring harness connector. The plastic retainer cracks from heat cycling, the pins loosen, and you get intermittent charging warnings that come and go with vibration. I had a client bring a 2008 MDX in with a dash light that only appeared when going over bumps near the highway exit ramp. We traced it to a corroded pin on the alt connector rather than the alternator itself. Cleaned the terminals, replaced the connector cap, and it ran fine for another eighty thousand miles. So before you throw money at a new alternator, check the harness side first. It takes about four minutes with a multimeter and saves you three hundred bucks.
If the alternator itself is the issue, here's how the replacement actually goes. Start by disconnecting the negative battery terminal. Wait about ten minutes for the backup power capacitors on the voltage regulator to discharge. Remove the underbody splash shield bolts, there are six along the front edge, and drop the shield. You'll need room to work up below the engine, so this step matters more than most guides acknowledge. Next, remove the serpentine belt tensioner. Use a 14mm socket on the tensioner bolt and rotate the tool clockwise to relieve pressure on the belt. Don't use an impact gun here, the tensioner arm is stamped steel and the pin will bow if you hammer it. Slide the belt off the alternator pulley and set it aside. The belt routing diagram is printed on a sticker near the radiator support, but if that's faded like most of them are by this age, you can sketch it out quickly before you start disassembly. Now you're dealing with the alternator mounting bolts. There are three of them. The upper bolt threads into the top bracket and is accessible from above once you remove the belt. The lower bolt and the pivot bolt are both from underneath, but the lower one is the problematic one because the subframe crossmember blocks direct access. I use a 3/8-inch drive extensions with a universal joint and a 12mm socket, but sometimes even that combination won't clear the frame rail. What actually works for me is removing the passenger-side engine mount breather hose first, then angling my wrist through the gap between the oil pan and the subframe. It's tight. Your knuckles will get scraped. Don't rush it. If the lower bolt is seized, which happens more often than you'd think on these Honda/Acura applications due to road salt and thermal expansion, apply penetrating oil and let it sit for fifteen minutes before trying again. A little heat from a propane torch on the bracket helps too, but be careful not to melt nearby rubber components.
Once all three bolts are out, the alternator drops free, but the main power cable and the small connector are still attached. The main cable nut is 12mm. If it's corroded, spray it with a contact cleaner and use a flare-nut wrench if you have one, otherwise a well-fitting socket is fine. The electrical connector is a press-fit type with a locking tab. Squeeze the tab and pull straight back, don't wiggle it or you'll damage the pins. Label the cables if you're paranoid about reassembly, though there's really only one way they go back on correctly. Before you install the new or rebuilt unit, clean the mounting surfaces on the engine block. Any corrosion or debris there creates a poor ground path and can cause the exact same voltage fluctuation symptoms that a bad regulator would produce. A wire brush and some brake cleaner does this in about two minutes. Coat the bolt threads with a thin layer of anti-seize compound, not threadlocker, because you'll need to remove these again eventually. Reassembly is the reverse of removal, but pay attention to belt routing and tension. After you route the belt and release the tensioner, verify tension by pressing the longest run of the belt midway between two pulleys. It should deflect about half an inch. Too loose and you'll get whining and undercharging. Too tight and you'll wear out the alternator bearings prematurely within a year or two.
Get the Full Details
Connect the battery and check voltage at idle with the headlights and A/C on. You should see 13.8 to 14.4 volts. Anything outside that range means either the regulator is set wrong or there's a connection issue. I always run the test for five minutes while idling and then again at 2,000 RPM to make sure the regulator is tracking properly across load conditions. There's a couple of things to keep in mind that most tutorials skip. First, the Denso alternator on the J35A has an internal diode trio for excitation current, and these tend to fail in cold weather before they fail in warm weather. If your charging issue is seasonal and only shows up below forty degrees Fahrenheit, test the diode trio with a multimeter before replacing the whole unit. It's a thirty-dollar part versus a one hundred fifty-dollar alternator. Second, aftermarket rebuilts from big box stores often use cheaper regulators that don't match the OEM current curve. The engine's ECU expects a specific voltage profile from the alternator for proper idle control and battery management. A mismatched regulator can cause rough idling and check engine lights related to the charge system. Stick with Denso OEM or a reputable namebrand rebuild if you can find one. The downside of this procedure isn't the difficulty, it's the time investment if you're unprepared. Most people who haven't done this before will walk away with it taking three to four hours on the first attempt. With the right tools and some familiarity, it's about forty-five minutes to an hour. The main bottleneck is always that lower mounting bolt. If you can't reach it after twenty minutes of reasonable effort, don't keep fighting it. Remove the alternator with the lower bolt partially threaded in, then drop the bolt out once the unit is free. It's a workaround I use when the angle is completely unusable.
Also worth noting: the 2008 MDX has a known issue where the alternator pulley bearing gets noisy before the alternator itself fails. A failing pulley bearing produces a high-pitched whine that increases with engine speed and is often mistaken for a serpentine belt issue. The pulley is replaceable separately for about forty dollars instead of needing a full alternator replacement. Listen carefully before you pull anything. Spin the alternator pulley by hand with the belt off. It should spin freely and silently with slight rotational resistance. Any grinding, roughness, or wobble means the pulley is going, and you should address that regardless of whether the alternator is producing proper voltage. If you need the service manual, the Honda/Acura official documentation covers this procedure in detail. The 2008 MDX service manual section twenty-four covers the charging system and includes torque specs, clearance measurements, and diagnostic flowcharts. You can find it through official Honda dealer portals or aftermarket automotive reference services. The torque specs for the alternator mounting bolts are twenty-two foot-pounds for the upper and lower bolts and eighteen foot-pounds for the pivot bolt. Don't overtighten these, the aluminum brackets strip easily and then you're looking at a much more expensive repair. One more thing that isn't obvious. The wiring harness on these alternators develops internal wire breakage near the connector body over time, especially on the field excitation circuit. When you pull the connector, flex the wires gently and inspect for cracks in the insulation. A broken wire inside the insulation looks fine from the outside but creates an open circuit that manifests as no-charging conditions. I've replaced perfectly good alternators only to have the dash light come back on because the harness was the actual problem. Test continuity through the harness before you install a new unit. A five-minute continuity check with a multimeter can save you a return trip to the auto parts store.
