What People Actually Get Wrong About Plate Heat Exchangers

PHE stands for Plate Heat Exchanger. It is a stack of thin, corrugated metal plates bolted together with gaskets sealing the gaps between them. Hot fluid flows through one set of channels, cold fluid through the adjacent set, and heat transfers through the metal without the two fluids ever mixing. That is the entire concept. It is not particularly mysterious. But the way PHEs behave in real cooling systems is where things get complicated, and most guides online skip straight past the part that actually matters. I spent six years on HVAC projects before I stopped pretending I could eyeball a selection and started using proper calculations every time.

The Mysterious World Of Phe In Cooling Systems Uncovering The Truth

Here is the truth nobody puts on a spec sheet: PHEs are sensitive to everything. Fouling factor, flow distribution, pressure drop, temperature approach, fluid chemistry. Miss any of those and the unit will either underperform catastrophically or destroy itself within a few months. I have opened up exchangers that were rated for 500 kilowatts and found they were moving barely 120 because someone used tap water on the secondary side without any filtration. The basic sizing equation is straightforward. Q equals mCpDeltaT on either side, and the overall heat transfer coefficient U comes from the individual film coefficients on each fluid side plus the plate conductivity. The plates are usually 0.4 to 0.6 millimeters of stainless steel, so the conductive resistance is negligible. What actually controls performance is the film coefficient, which depends entirely on the plate pattern and the Reynolds number of the flow. Most people pick a PHE by looking at the catalog curve and hoping for the best. That approach works fine if your system matches the catalog conditions exactly, which it never does. The actual operating point shifts depending on pump characteristics, piping layout, and how much dirt ends up in the channels over time. I once replaced a PHE that was "undersized" according to the spec sheet, only to find the problem was a strainer clogged with welding scale on the suction side of the secondary pump. The exchanger was performing within 3 percent of its rated capacity. The strainer was at 40 percent open.

How To Actually Size A PHE For A Cooling System

Start with your duty. What is the heat rejection or absorption required, and what are your inlet and outlet temperatures for both the primary and secondary circuits. Write them down. Then check the minimum approach temperature. A PHE needs at least a 1 Kelvin approach to be practical. If you are asking for a 0.3 degree approach, you are going to need an absurdly large plate area, and the pressure drops will be punishing. Next, estimate the flow rates. Mass flow equals Q divided by Cp divided by DeltaT. Don't skip units. I see people plug BTU per hour into a formula and divide by Celsius without converting, then wonder why their flow rate is off by a factor of 1.8. After that, pick a candidate unit from a manufacturer's catalog. Look at the delta T correction factors. Most catalogs give you performance data at standard conditions: 5 and 5 degrees Celsius on the water sides, or 40 and 30. Your actual fluid might be a glycol mixture, or your temperature differentials might be very different from the test conditions. The correction tables exist for exactly this reason, and ignoring them is the single most common mistake I see in PHE failures.

Get the Full Details

Uncovering truth and error: eight books | WORLD
Uncovering truth and error: eight books | WORLD

Glycol changes everything. A 30 percent propylene glycol mix reduces the heat transfer coefficient by roughly 15 to 20 percent and increases viscosity enough to raise pressure drop by 30 to 40 percent. You need to derate the unit accordingly. Water treats a PHE generously. Glycol does not. Check the pressure drop. Each pass through the plates creates resistance, and the number of passes directly affects both heat transfer and pumping power. More passes means higher velocity, better film coefficients, but also exponentially higher pressure drop. There is a sweet spot, and finding it requires iterating between the thermal and hydraulic calculations. I use a simple spreadsheet that runs through five plate counts and selects the configuration that meets the duty while staying within the available pump head. One thing that catches people out: the flow arrangement matters. Counterflow gives you the best LMTD, which is why PHEs are inherently efficient. But some plate designs allow for mixed flow patterns depending on how the ports are connected. Make sure the gasket layout and port configuration match the intended flow arrangement. I once saw a technician install a unit with the gaskets flipped on two plates, creating a short circuit where half the channels bypassed the heat transfer surface entirely. The system had a 6 degree approach instead of the designed 2 degrees, and the tech blamed the "poor quality exchanger."

Installation And Commissioning That Actually Work

Clean the pipes before you connect anything. Flushing a system is not optional. I once commissioned a PHE on a chilled water system where the contractor had left the isolation valves closed during construction and the pipes inside were covered in mill scale and flux residue. We flushed for eight hours with chemical treatment and still found black sludge in the first plate channel after opening the exchanger three weeks later. Install a strainer upstream, and make it something meaningful. 500 microns is the practical limit for PHE channels. Anything larger and you are inviting trouble. The channels between plates are typically 2 to 5 millimeters wide. A piece of pipe scale larger than 3 millimeters can lodge in a corner and start a blockage that grows from there. Balance the flow. Both sides need to be at their design flow rate before you declare the system stable. Use variable frequency drives or balancing valves to get there. If one side is running at 60 percent of design flow while the other is at 100 percent, your approach temperature will drift and your heat transfer will be unpredictable. The catalog curves assume balanced flow.

Watch for thermal shock. Bringing a cold PHE online with hot primary fluid too quickly can damage gaskets. Ramp the temperature over 15 to 20 minutes. I learned this the hard way on a geothermal heat recovery project where we opened the primary valve too fast and cracked a gasket on a corner port. The repair required removing the entire plate pack, replacing twelve gaskets, and re-tightening to specification. Three days of downtime for a mistake that took ten seconds to make. Maintenance intervals depend entirely on your water quality. With treated closed-loop water, you might go two to three years between cleanings. With open cooling towers feeding the primary side, plan on annual inspection and chemical cleaning. I have seen units pulled from tower-connected systems that were essentially solid blocks of calcium carbonate. The channels looked like honeycomb structures built into the plates.

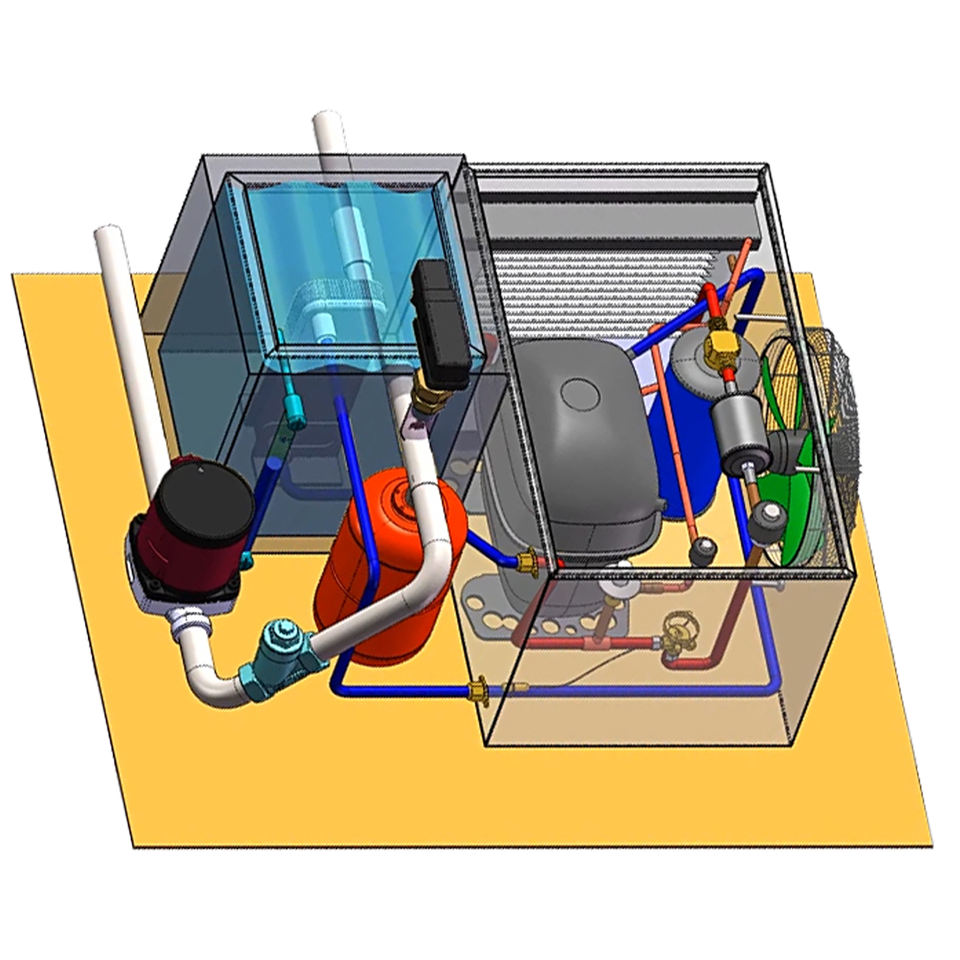

2.5KW PHE Evaporator for Glycol Cooling System Efficiency

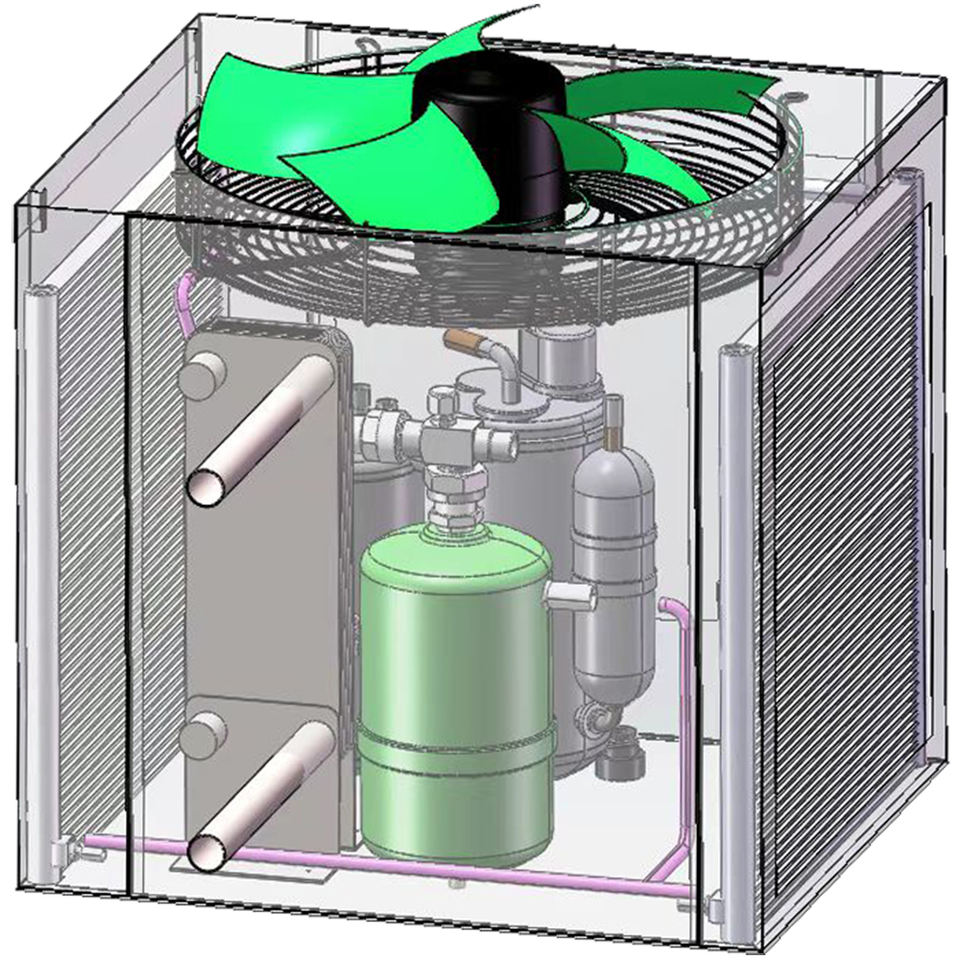

2.5KW PHE Evaporator for Glycol Cooling System Efficiency

When A PHE Is The Wrong Choice

Not every cooling application deserves a plate heat exchanger. If your fluid is dirty, has fibers, or contains large particulates, a shell and tube is more forgiving. PHEs punish you for poor water quality. If you need to handle phase change on one side, verify the manufacturer's guidance. Some PHEs are rated for evaporation or condensation, but the internal flow distribution becomes critical and the pressure drops are significantly higher. If your operating temperature exceeds the gasket material limits, you need special high-temperature gaskets or brazed construction instead of gasketed. Brazed PHEs solve the gasket limitation but introduce a new problem: you cannot open them for cleaning. Once a brazed unit fouls, you are cleaning it chemically in place or replacing it. Gasketed units let you pull the plates and physically inspect or brush them. That flexibility matters in harsh environments. There is also the issue of freeze damage. If water freezes inside the channels, the expansion can warp plates or crack gaskets. I once toured a facility where a PHE had been damaged by a frozen secondary loop during a winter power outage. The plates were visibly deformed, and the unit would no longer hold pressure even after thawing. Brazed units tend to split at the braze joints rather than warp, which is slightly less catastrophic but still a total loss.

The selection process takes longer than people expect. Budget two to three hours for a proper sizing calculation on a first-time project, including iterations on plate count, pass arrangement, and pressure drop checks. Rushing it saves minutes now and costs days later when the system does not meet its thermal design point. I once cut that process down to about 45 minutes once I stopped doing manual iterations and built a spreadsheet that solved the equations automatically, but that only works if you have done the manual calculations at least once so you know when the software is giving you garbage. PHEs are efficient, compact, and cost-effective when selected and maintained correctly. They are also fragile in ways that shell and tube exchangers are not, and that fragility shows up fastest in the field, not on paper. Treat them with the respect their sensitivity demands and they will outlast your expectations.
