How IMAX Projection Actually Works and Why One Format Beats the Other

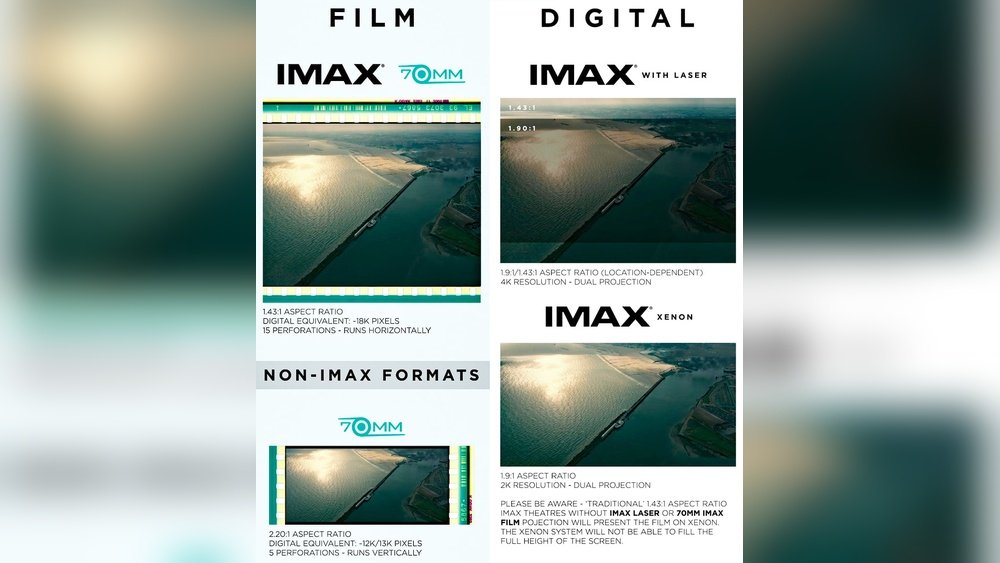

IMAX has two main projection technologies in theaters today: dual-laser and digital. The difference matters more than most people realize when you are trying to pick which screening to attend. I spent years calibrating projectors and diagnosing image problems across multiple venues, so here is what actually separates the two systems in practice. Dual-laser IMAX projectors use two 4K laser sources — one for the left eye and one for the right in stereoscopic 3D, or a single combined beam for 2D. The system projects at 12K resolution on the special IMAX 15-perforation 70mm film path, or 4K digital laser for the digital-only screens. Digital IMAX, sometimes called IMAX with Laser but actually referring to the older xenon-based digital projectors, uses dual 2K xenon lamps projecting through DLP chips. The laser version is the newer generation and it is measurably better in several ways. The brightness difference is the first thing you notice. A properly calibrated dual-laser IMAX projector outputs around 26 ftcandles, while the digital xenon systems top out around 14 ftcandles. That is not a small gap. It means laser screens can handle high dynamic range content without crushing the highlights or rolling off the blacks. On digital, bright white scenes often look muddy because the lamp output degrades over time and the contrast ratio drops significantly after a few thousand hours of operation.
Color gamut is where the laser system pulls ahead noticeably. The dual-laser projectors cover roughly 98% of the Rec. 2020 color space, while the digital xenon units struggle to hit more than 60% of Rec. 709. For content mastered in HDR like Dolby Vision or the IMAX Digital HDR grade, this gap is the difference between a green plant looking like actual foliage and looking like someone painted it light green. I once had a show where the digital projector had aged past the point of acceptable color accuracy and the green tint on a nature documentary scene was so far off that the distribution company asked us to pull the print until we could recalibrate. It took three days to get the xenon lamps matched and the color wheels aligned. Sharpness is another area where laser wins, but with a catch. The 4K laser source projected through the IMAX custom lens stack delivers a perceived sharpness that the dual 2K digital projectors simply cannot match. The digital chips are limited by their pixel pitch and the projection lens resolution. When you are sitting in the front rows of a digital IMAX auditorium, you can see the individual pixels if the content is not fully utilizing the resolution. The laser system masks this limitation because the higher native resolution feeds the entire lens stack more detail. Still, if you sit close enough on any IMAX screen, both formats will show some softness at the edges due to the curved screen geometry and the projection angle. Sound is the same across both systems. IMAX uses their proprietary 12-channel audio format with overhead speakers and a dedicated low-frequency channel. The experience is controlled by the auditorium acoustic treatment and speaker placement, not the projector. You will not get better sound from a laser projector than from a digital one in the same room. The difference is purely visual.
Here is something most people do not know: the aspect ratio expansion that IMAX markets is not actually tied to the laser system. Both digital and laser IMAX screens can display up to 1.90:1 aspect ratio for compatible content. The expanded image only appears when the film or digital master has been formatted for IMAX. Most mainstream Hollywood blockbusters do not get the full IMAX treatment — they get a upscaled version with slightly wider framing, but not the full 1.90:1. Only films shot with IMAX cameras, like certain Christopher Nolan productions or Dune parts, actually fill the entire screen with new picture area. Everything else is just a slightly larger window on the same content. I encountered a specific issue with a dual-laser IMAX installation where the left and right laser engines had drifted out of convergence. The symptom was subtle: text on screen would show a faint color fringe, usually red on one side and cyan on the other. It was not obvious in dark scenes but became very apparent during title sequences and any shot with high-contrast text. The workaround involved running the full convergence alignment procedure through the projector service menu, which took about 45 minutes. You have to align the raster position of each laser engine separately while displaying a grayscale test pattern, then verify with a live camera feed of the screen. Most theater staff never perform this calibration because it requires specialized equipment and training. The result was a noticeable improvement in perceived sharpness and color accuracy across the entire screen. The maintenance costs favor digital IMAX in the short term. Xenon lamps cost around $800 to $1,200 each and need replacement every 2,000 to 3,000 hours of operation. A dual-laser projector has no lamps to replace, but the laser engines themselves have an expected lifespan of around 20,000 hours before output degrades to 70% of original brightness. When they do need servicing, the cost is significantly higher — usually in the range of $15,000 to $25,000 per engine. Over five years of daily screenings, the laser system ends up being cheaper to operate because you are not constantly buying lamps and dealing with the downtime required for replacements.
Get the Full Details
There are scenarios where digital IMAX is still the better choice. Older auditoriums that were not designed with the laser system in mind may have cooling or power infrastructure issues. The dual-laser projectors require more electrical capacity and produce different heat profiles than the xenon units. Some theaters converted to laser but had to upgrade their HVAC and electrical panels, which added significant cost and sometimes caused operational headaches during the transition period. If a theater skipped those upgrades, the laser projectors can thermal throttle and reduce brightness automatically, which defeats the main advantage. Another factor to consider is content formatting. Not every studio sends masters optimized for the IMAX laser system. Some digital distributors still ship content at 2K resolution even for laser venues, which means you are getting a downsampled image on a 4K projector. This is more common with older titles and streaming-derived content. The laser projector will still look better than the digital one, but the gap narrows when the source material itself is limited. For the best experience, check which projector type your local IMAX theater uses before buying tickets. Some venues still operate exclusively digital IMAX and have not upgraded. The laser systems are becoming more common but are not yet universal. You can usually find this information on the theater website or by calling the box office. The difference in picture quality is real and consistent across well-maintained installations, but only if the equipment is actually in good condition. A poorly maintained laser projector can look worse than a freshly serviced digital unit.
The bottom line is that dual-laser IMAX delivers measurably better brightness, contrast, color accuracy, and sharpness when both systems are properly calibrated and maintained. The digital xenon format is adequate for casual viewing but shows its limitations with HDR content and in well-lit environments. If you are deciding between the two for a specific film, the laser version is worth the extra cost unless you are watching something where the picture quality is secondary to the social experience of being in a large crowd.
