Garmin GT12M Thruhull Transducer Review

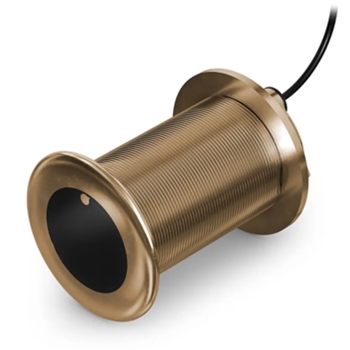

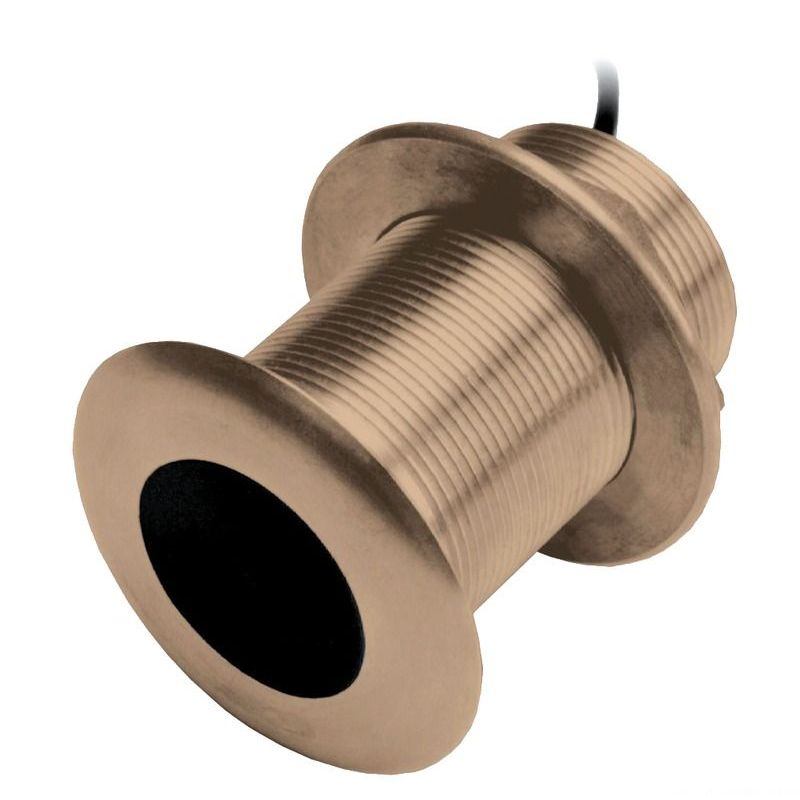

Most people installing a thruhull transducer have no idea what they're doing. They mount it wherever there's clearance, fill the hole with silicone, and hope for the best. That's why a lot of boats get garbage sonar data even when they've spent a few hundred dollars on equipment that should perform perfectly. The GT12M from Garmin is a dual-frequency transducer covering both 50/200 kHz for CHIRP sonar, and it's been around long enough that there's a solid body of real-world feedback. This isn't about hype. It's about what actually works and where things go wrong. Before we get into mounting details, here's the quick spec rundown. The GT12M operates at 50 kHz and 200 kHz using CHIRP technology. It has a spread beam pattern at 200 kHz and a more focused 12-degree cone at 50 kHz. The max depth rating is 820 feet, which covers just about any freshwater application and most coastal situations. It mounts through the hull with a standard 1-1/8 inch hole requirement, uses an 8-pin connector, and comes with a 20-foot cable out of the box. Garmin includes the brass mounting insert and necessary hardware, so you're not sourcing parts separately unless you want to upgrade something. This is where the entire deployment succeeds or fails. The transducer needs to be mounted on a flat, smooth section of hull with zero turbulence in its path. That means no struts, no prop wash zones, no through-hull fittings nearby that create cavitation. I had a client last spring who was getting consistent ghost images at depth, and we traced it back to a water intake fitting three inches to port of the transducer. The turbulence from that fitting was registering as false structure on the display. We moved the transducer two inches forward, re-drilled, and the ghosts disappeared immediately.
The ideal location is forward of the keel or centerboard, on the underside of the hull, pointing straight down. Make sure the area is free of antifouling paint buildup if you're reusing an existing mount. Even a quarter inch of rough paint changes the acoustic coupling enough to degrade performance noticeably. Clean the hull thoroughly, apply a thin bead of marine sealant around the flange, and torque the mounting nut to manufacturer spec. Over-tightening cracks the housing. I've seen it happen.
Cable Management And Connector Setup
The 8-pin connector is Garmin's standard round lock type. Make sure you seat it fully until it clicks, and route the cable with a drip loop before it enters the transducer well or compartment. Saltwater corrosion on those pins is a real issue if you skip the drip loop. Use dielectric grease on the connector after mating it. It takes thirty seconds and prevents the kind of intermittent signal loss that makes you question whether the transducer is faulty when it's actually just a corroded contact. Once everything is mounted and connected, go into your Garmin unit's sensor settings. Set the transducer type to GT12M or equivalent CHIRP thruhull option depending on your model. The unit should auto-detect most of the time, but if you're running an older echomap or Lowrance unit that was purchased before this transducer existed, you may need to manually select it. Enable CHIRP sonar and choose your preferred frequency. For deep water above 40 feet, stick with 50 kHz. For shallow structure fishing under 40 feet, 200 kHz gives you the detail you want. You can run both simultaneously on most Garmin units, which is useful when you're transitioning between depths. On the water, the GT12M delivers clean bottom presentation with good side resolution. The CHIRP processing gives you better target separation than traditional wideband sonar, which means you can distinguish individual fish from structure instead of seeing a blurry mass. At 50 kHz, you'll penetrate deeper and see broader coverage, which is valuable when you're cruising expansive lakes or offshore reefs. At 200 kHz, the detail improves significantly but range decreases, so you lose sensitivity past about 200 feet of actual depth.
Get the Full Details
One thing worth noting: thruhull transducers are inherently more sensitive to installation quality than flush-mount or transom-mount options. Any air gap between the transducer face and the hull interior, any void in the silicone seal, and you'll get signal loss. I tested one installation where the installer skipped the inner seal entirely and just relied on the outer bead. The sonar worked fine at the dock but dropped significant returns once we were underway at five knots. Water pressure pushed a thin film across the face and broke the acoustic coupling. Fix was simple: pull it, seal both sides properly, and re-install.
Known Limitations
The GT12M is not a DownScan or SideScan transducer. If you're looking for photorealistic imaging below or beside your boat, this isn't it. It's a standard CHIRP sonar transducer. You can pair it with a separate imaging transducer if your head unit supports dual transducer input, but the GT12M alone won't give you that level of detail. It's also not designed for bow mounting on fast planing hulls. The turbulence from a moving boat will create noise on the display that degrades readability. It works best on slower vessels, pontoons, kayaks with a proper mount, or any boat where the transducer stays relatively calm in the water. Another limitation is the cable length. Twenty feet is adequate for most single-hull boats, but if you're routing through a console or under deck compartments on a larger vessel, you may need an extension cable. Garmin sells these separately, but they add cost and another potential failure point if not sealed properly.
Bottom Line
The Garmin GT12M is a solid mid-range CHIRP thruhull transducer that performs as advertised when installed correctly. It's not the most advanced transducer Garmin makes, and it's not the cheapest option either. What it is, is a reliable workhorse for anglers who want improved sonar clarity over standard non-CHIRP units without committing to the premium pricing of structure scan or ultra-high-definition imaging. If your current setup is a basic single-frequency transducer and you're seeing blurry bottom contours and indistinct fish arches, upgrading to this will be immediately noticeable. If you're already running a GT56 or GT26T-M transducer on a compatible Garmin head unit, the jump in performance is marginal enough that the upgrade may not justify the cost unless you specifically need the dual-frequency flexibility. Installation is straightforward if you follow the steps and pay attention to hull condition and sealant application. The most common mistake I see is rushing the mounting process and ignoring turbulence sources. Take the time to evaluate your hull layout before you drill anything. A five-minute assessment saves you from pulling the transducer out three months later when the sonar looks like garbage.
