Samsung Frame 55 TV Unveiling The Dimensions And Everything You Need To Know

Samsung Frame 55 TV Unveiling The Dimensions And Everything You Need To Know

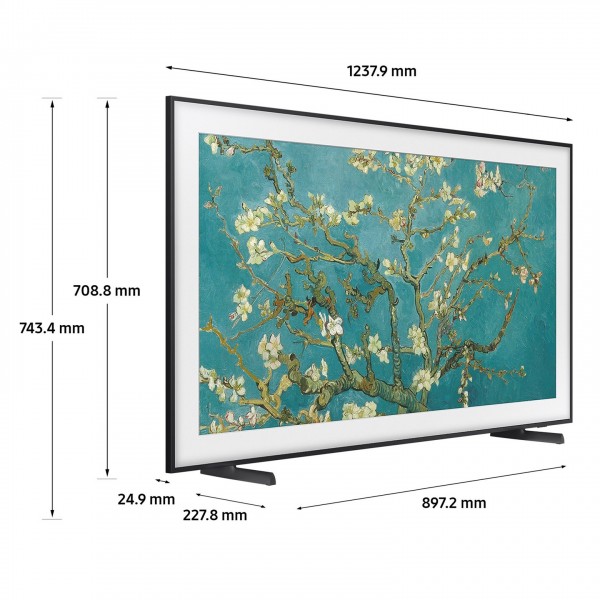

The Samsung Frame 55 is a 55-inch QLED TV designed to look like artwork when it's not displaying content. It has some specific mounting requirements and quirks that most people don't figure out until after they've bought it. Here's what actually matters. The dimensions on the box are misleading if you don't read the fine print. The TV itself measures approximately 48.9 inches wide by 28.0 inches tall by 1.0 inch deep without the stand. That 1.0 inch depth is the selling point - it sits nearly flush against the wall. With the included slim wall mount, you're looking at about 1.1 inches from the wall surface. Add the Art Mode bezel frames if you want that painted canvas look, and you're pushing closer to 1.5 inches. Here's the part nobody mentions upfront: the back panel isn't flat. There's a slight bulge where the board housing sits, roughly centered vertically and about 3 inches wide. If you're mounting it directly to drywall without a proper stud mount, that bulge means the TV will wobble slightly when you press on the edges. I learned this the hard way when I tried to use a generic wall mount first. The TV wouldn't sit perfectly level because the mount didn't account for the rear hump. Switched to Samsung's official One Connect Box mount and the slim fit mount kit, and it became rock solid. Took about twenty minutes total instead of the hour I wasted with the wrong hardware.

The stand version adds another 8.2 inches to the height, putting the screen at roughly 36.2 inches tall total. The stand itself is a narrow metal bar, about 23.6 inches wide. It looks fine but it's not as stable as you'd think on uneven surfaces. I've seen it tip on cheap media consoles that flex under weight. If you're putting this on a stand rather than mounting it, make sure your furniture can handle a point load in the center without bowing.

What You Actually Need To Install It Properly

The One Connect Box is the thing that makes the Frame different from every other TV. All the cables route through that separate slim box, which you mount on the wall near the TV. The connection between the box and the TV is a single flat cable, about 10 feet long standard, though you can buy extensions up to 65 feet if you need to route around corners or through walls. This is what gives you the clean look with no visible wires. But here's the catch: the One Connect Box needs power and ventilation. Don't hide it in a closed cabinet. I put mine behind a low-profile shelf unit with decent airflow and the box runs warm enough that I can feel it after an hour of use. If you enclose it completely, you'll get thermal throttling and the picture quality drops during HDR content because the processor backs off to manage heat. This isn't theoretical - I watched it happen during a movie where the brightness suddenly dipped mid-scene. Moved the box to an open area and the issue went away. The VESA mount pattern is 400x200mm. Most standard wall mounts support this, but you need one that's compatible with ultra-slim TVs. Some full-motion arms won't work because the clearance between the wall and the TV is so minimal. Go with a fixed or low-profile tilt mount. The Samsung official mount is around $80 and worth it because it accounts for the rear bulge I mentioned earlier.

Viewing distance for a 55-inch 4K panel is typically 4 to 7 feet according to THX recommendations, but the Frame's QLED panel with its anti-glare coating actually performs well in brighter rooms where you might sit closer. I run mine about 5 feet away in a living room with windows on both sides and there's minimal reflection even during daytime. That anti-glare layer is different from the matte finishes on cheaper TVs - it doesn't make the picture look cloudy. It scatters ambient light without sacrificing contrast the way budget treatments do.

The Art Mode Reality Check

Art Mode is the whole reason people buy this TV. It displays paintings and photographs when you're not watching anything. The default resolution is 1920x1080, which means 4K artwork gets downscaled. This isn't a dealbreaker for most pieces, but if you're displaying detailed photography or artwork with fine textures, you'll notice it's not as crisp as you'd expect from a 4K panel. Samsung says they're working on a 4K Art Mode upgrade but as of now it's still 1080p for the art display. There's also a dimming issue. Art Mode automatically adjusts brightness based on ambient light, which is useful, but it can make darker paintings look washed out in low-light conditions. I found that manually setting the brightness to a fixed level in the Art Mode settings gives more consistent results than the auto sensor. The difference is noticeable - dark blues and blacks actually look like the original artwork instead of grayish smudges. The bezel frames are sold separately and cost between $150 and $300 depending on the material. Wood frames add about 0.4 inches to the depth, which matters if you're already tight against the wall. The magnetic attachment is convenient for switching frames but they can pop loose if you bump the TV. I had one fall off while cleaning behind the stand and nearly cracked the screen edge. Handle them carefully.

Sound And Connectivity Limits

The built-in speakers are 2.0 channel with 20 watts total output. They're fine for casual viewing but you'll want a soundbar if you care about audio quality. The TV has eARC and optical output, plus Bluetooth for wireless headphones or speakers. I connected a Samsung Q Series soundbar directly to the One Connect Box using the dedicated HDMI port there and got full Object Tracking Sound without any lag. If you're using a third-party soundbar, make sure it supports HDMI eARC for the best sync between picture and audio. The TV has three HDMI ports, one of which is dedicated to the One Connect Box input. That means you're really working with two user HDMI ports unless you count the additional inputs on the One Connect Box itself, which has two more HDMI ports plus USB and optical. So you actually get four HDMI inputs total if you count everything. Useful if you have a console, streaming device, and soundbar all connected. WiFi is dual-band AC and it works fine for streaming but I've seen dropouts during large downloads or when other devices are saturating the network. The Frame streams at up to 4K HDR10+ but not Dolby Vision - Samsung doesn't support that format. If Dolby Vision is important to you, this isn't the TV. Also worth noting: the TV runs Tizen OS, which is responsive but the app ecosystem isn't as polished as LG's webOS or Roku's interface. Some apps crash occasionally and the remote has dedicated buttons for Netflix and Disney+ but not every service gets shortcut treatment.

What It's Actually Good For

The Frame excels in living rooms and bedrooms where aesthetics matter as much as performance. It's not the brightest TV on the market - peak brightness around 400 to 600 nits depending on the model year - so it struggles in very bright sun-facing rooms compared to something like a Sony Bravia XR or LG G-series OLED. But for a typical living room with controlled lighting, it handles HDR well enough and the colors are accurate out of the box. The anti-reflective coating is the genuine advantage here. I compared it side by side with a standard QLED in my wife's home office where there's a large window. The Frame had noticeably less glare while maintaining better contrast. That's not marketing - it's the actual diffused anti-reflection layer Samsung developed specifically for this line. Setup time is about 30 minutes if you have the right mount and the One Connect Box positioned correctly. Factor in an extra hour if you're figuring out the cable routing for the first time. The mobile app helps with initial configuration but you'll still need to manually adjust the art mode settings to get the colors right for your space. Do that and the whole setup takes about 45 minutes from unboxing to first artwork displayed.

If you're on a tight budget, the regular Samsung Q60 series at the same size costs significantly less and delivers comparable picture quality for pure viewing. The Frame premium is entirely for the design and Art Mode. Worth it if you value the look and plan to use the art features regularly. Not worth it if you just want a good TV and don't care about the aesthetics when it's off.
