Getting LED strips to dance with your music without buying a $500 controller

I spent about six months messing with different approaches to audio-reactive lighting before I settled on something that actually works reliably. The core idea is straightforward enough, but the edge cases will eat your weekend if you aren't careful. Let me walk through what I learned the hard way. Rhythm And Light The Ultimate DIY Music Experience With Led Music Sync isn't really a product name or a specific brand at this point. It's more of a descriptor for the whole category of hobbyist projects where you take an audio signal and use it to drive addressable LEDs in time with the music. The reason people get drawn into this is that the results look impressive fast, but getting them to actually behave consistently across different song types is where most people quit.

The basics of how the signal chain works

Here is what you are actually dealing with under the hood. Your audio source plays through a device running some kind of analysis software. That software takes the incoming waveform, breaks it into frequency bands using an FFT (Fast Fourier Transform) algorithm, and then maps those bands to different zones or segments of your LED strip. The LEDs themselves are almost always WS2812B addressable LEDs, which means each individual diode has its own controller built in. You feed it a single data line and tell it how many LEDs you have, and the microcontroller or computer sends pixel data out one after another. The critical part most beginners miss is that FFT resolution matters more than you would think. A standard 1024-bin FFT gives you roughly 4.6 Hz per bin at a 44.1 kHz sample rate. If you are mapping those bins directly to LEDs, you need enough bins to cover the frequency range your lights are supposed to respond to. Otherwise you get this clumpy, uneven lighting where entire sections of your strip just sit there doing nothing while one small band explodes with color. I learned this the hard way when I first hooked up a 144-LED strip to a basic python script that was using only 64 frequency bands. The result looked like someone had spilled paint on half the strip and left the rest dry.

What software to run and why it matters

You have a few real options here. MadMapper is the professional choice and it costs money, but it handles the FFT-to-LED mapping cleanly and has driver support for most USB audio interfaces. Resolume does something similar if you already use it for visual performance work. On the free side, Light-O-Rama is overkill for most home setups but extremely powerful if you are running thousands of LEDs across multiple zones. For people who just want to tinker and don't mind writing a few lines of code, a python script using pygame for audio capture and rpi_ws281x or NeoPixel for LED control will get you running in under an hour. I went the python route first because it gave me the most visibility into what was actually happening frame by frame. The tradeoff is that you are responsible for everything yourself, including the things that go wrong at 2 AM when no one is around to help you figure out why the lights jumped to full white on every bass hit.

Get the Full Details

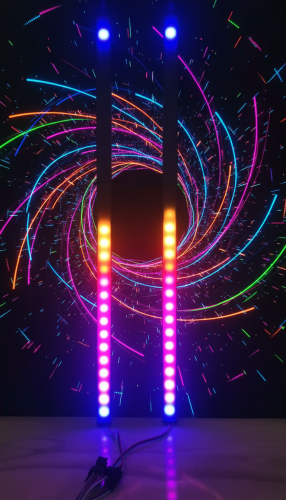

USB 5V Music Sync LED Light & Sound-Activated Rhythm Lights Music Light ...
USB 5V Music Sync LED Light & Sound-Activated Rhythm Lights Music Light ...

My specific problem with phase cancellation in small rooms

Here is the issue that nearly made me give up entirely. I was running my setup in a bedroom with a desk speaker positioned about three feet from the LED strip mounted above my monitor. When I played certain songs with heavy bass, the LEDs would react aggressively to the bass frequencies, but then the sound would bounce off the wall behind the strip and come back to the microphone input with a slight delay. This caused what amounts to a phase interference pattern in the low-end analysis, which made the LED response to bass become completely erratic and sometimes even inverted. One moment the strip would pulse with the kick drum, the next it would do the opposite. The workaround was ugly but effective. I put a small foam windscreen over the microphone input on my USB audio interface and physically moved it to a position where the direct sound from the speaker hit it before any reflected sound could. I also added a high-pass filter at 80 Hz to the analysis software so the sub-bass frequencies, which are the ones causing the worst reflection problems in a small room, simply didn't feed into the LED mapping at all. This cut the weird behavior down by about 90 percent. The remaining 10 percent only shows up on tracks with heavily produced sub-bass, which is rare enough that I just accept it.

Power supply sizing and the mistake everyone makes

This is where people lose money and sometimes set things on fire. A WS2812B LED at full white uses approximately 60 mA per diode. That means a 144-LED strip at full brightness draws about 8.6 amps, and a 300-LED strip draws around 18 amps. Most people grab a 5V power supply that is rated for maybe 10 amps and wonder why their LEDs flicker or dim when the bass hits and all the red channels spike simultaneously. You need headroom. Size your power supply for at least 150 percent of your calculated maximum draw. A 300-LED strip should be running off a 30-amp supply minimum, not a 20-amp supply. Another thing nobody warns you about is voltage drop. If you run a 300-LED strip from a single power injection point at one end, the LEDs at the far end will be noticeably dimmer and the colors will shift toward blue because the 5V rail sags under load. You need to inject power at both ends of any strip longer than about 60 LEDs, or better yet run separate power feeds to both ends from the same 5V supply. I lost two meters of LED strip this way before I figured it out, not because they broke, but because the unreliable voltage caused the data signals to corrupt and the controllers to enter recovery loops that fried the first few diodes in the chain.

Latency and why your lights feel behind the beat

There is always some delay between the audio playing and the LEDs reacting, and in a well-tuned system you want that delay under 30 milliseconds for it to feel instantaneous. Most of the latency comes from three sources: the audio buffer size in your software, the FFT window size, and the data transmission speed to the LEDs. If you are using a USB audio interface, your buffer size setting in your DAW or analysis software is the biggest factor. A buffer of 128 samples at 44.1 kHz gives you about 2.9 milliseconds of latency, which is fine. A buffer of 1024 samples pushes that to 23 milliseconds, and at 2048 samples you are looking at nearly 46 milliseconds of delay, which is enough that you will visibly notice the lights lagging behind the music. The catch is that smaller buffers increase CPU load. If your computer can't keep up, you get audio glitches and dropouts that make the LED response completely unpredictable. Start with a 256-sample buffer and work upward only if you are experiencing audio artifacts. The FFT window size is a related concern. Larger windows give you better frequency resolution but worse time resolution. This means your LEDs will respond more accurately to pitch but less responsively to transients like snare hits. A window size of 512 to 1024 is usually the sweet spot for music-synced lighting. Anything smaller and your frequency bands become too wide to be useful. Anything larger and the lights feel sluggish and unresponsive.

Music rhythm LED light | Sound Control Light | DIY circuit - YouTube
Music rhythm LED light | Sound Control Light | DIY circuit - YouTube

What this approach does not do well

I want to be clear about the limitations here because the YouTube videos make it look easier than it is. FFT-based analysis, which is what almost every DIY LED music sync project relies on, cannot distinguish between different instruments in the same frequency range. If your kick drum and your bass guitar are occupying the same 60 to 200 Hz range, the LEDs assigned to that band will respond to both of them simultaneously. There is no way around this with basic FFT analysis. You would need a more advanced approach like spectral flux analysis or even a trained machine learning model to separate those sources, and that adds significant computational overhead that most hobbyist setups cannot handle in real time. Another limitation is that ambient light in the room affects the microphone input. If you have a bright white LED ceiling light on while your setup is trying to analyze audio, that light can cause your camera or sensor-based setups to behave strangely if you are using any optical feedback at all. Even purely microphone-based systems can pick up the hum from fluorescent ballasts or the high-pitched whine from switching power supplies, which then gets mapped to LED behavior and creates visual artifacts that have nothing to do with the music. I ended up turning off all non-essential lights in the room and plugging my audio interface and LED controller into a different circuit than my desk lamps to eliminate this issue entirely. For people who want something more polished and are willing to spend money rather than time, commercial products like the Govee DreamView series or Philips Hue Play Gradient with their respective apps handle all of these problems for you. They are not as customizable as a DIY setup, but they also do not require you to debug buffer sizes or wire power injection points at midnight. If your goal is just to have lights that look good while you listen to music, the commercial route is probably the right call. If you want to understand how the system works and be able to modify it when something breaks, the DIY path is worth the frustration.
