The Electron Sea Doesn't Work Like You Think It Does

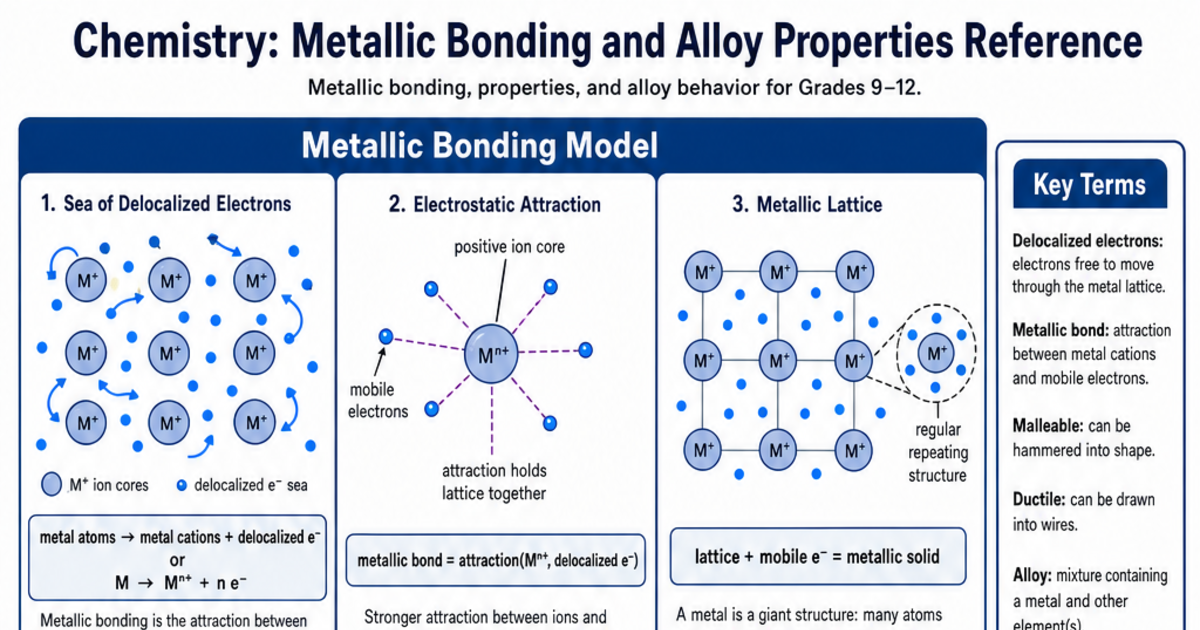

Most people learn about metallic bonding in high school chemistry and then never touch it again. The model is straightforward enough: valence electrons detach from individual atoms and pool into a shared sea. The metal cations sit in a lattice and float in that electron soup. Done. That's where the confusion starts. If the bonding is just non-directional and loose, you'd expect metals to be weak. They aren't. Steel is hard. Titanium is strong. Copper holds up under stress. So why are metals structurally competent if the bonding is supposedly just a casual electron sharing arrangement? The answer involves things that don't make it into introductory courses. I spent years troubleshooting why certain aluminum alloys would crack during cold working and others wouldn't. The difference came down to how dislocation movement interacted with the electron density in the lattice. Simple metallic bonding theory doesn't predict that. The electron sea model does, but only if you actually understand what the model is doing and where it falls apart.
Relate Metallic Bonding To The Properties Of Metals The Quantum Glue Behind Conductivity Malleability And Strength
Conductivity is the easiest property to connect to the bonding model. Free electrons move through the lattice under an electric field. That's nearly direct. But the actual mechanism is subtler than "electrons flow freely." In pure copper at room temperature, electron mean free path is about 39 nanometers before a scattering event. Grain boundaries, impurities, and phonon vibrations all disrupt flow. That's why annealed copper conducts better than work-hardened copper even though the bonding hasn't changed. The lattice imperfections are what slow electrons down, not the bonding itself. Malleability is where things get interesting. The non-directional nature of metallic bonding means atoms can slide past each other without breaking bonds. Dislocations move through the lattice on specific slip planes. In face-centered cubic metals like aluminum and copper, there are twelve slip systems available. That's why FCC metals are generally more ductile than body-centered cubic metals. The bonding allows deformation because the electron sea redistributes around moving atoms rather than snapping like a covalent bond would. I ran into a real issue once with a magnesium alloy component. Magnesium is hexagonal close-packed, which gives it far fewer slip systems at room temperature. The part was supposed to be formed, and it cracked on the third bend. The textbook explanation would say magnesium is brittle because of its crystal structure, but the deeper reason is that HCP metals simply can't accommodate plastic deformation the way FCC metals can. The electron sea doesn't care about your geometry. It just responds to whatever the lattice is doing. My workaround was heating the forming process to around 300 degrees Celsius, which activates additional slip systems in the HCP structure. The material went from cracking to flowing. The bonding didn't change. The lattice kinematics did.
Strength is the property most people get wrong when relating it to metallic bonding. The electron sea model explains cohesion, not resistance to deformation. Those are different things. Cohesion is what keeps the metal from falling apart. Resistance to dislocation motion is what makes it strong. Adding alloying elements creates lattice strain fields that pin dislocations. Precipitation hardening creates second-phase particles that block dislocation movement. Grain boundary strengthening (Hall-Petch relation) reduces grain size so dislocations pile up at boundaries. None of these mechanisms change the fundamental metallic bond. They all interfere with how dislocations move through a lattice held together by that bond. There's a common misconception that stronger metallic bonds always mean harder metals. That's not true. Tungsten has very strong metallic bonding and is extremely hard. But lead has relatively weak metallic bonding and is soft. The correlation exists but it's not the whole story. Crystal structure, defect density, and grain size often matter more than bond strength alone. I've seen engineers assume a titanium alloy would be harder than steel because titanium's bonding characteristics seem stronger on paper. They were surprised to learn the steel was three times harder. The titanium had a different microstructure. The bonding model alone couldn't predict that. Another thing people miss is that the simple electron sea model breaks down for transition metals. The d-electrons don't behave like the s and p valence electrons in alkali metals. They're more localized. This affects both bonding strength and magnetic properties. Iron, cobalt, and nickel have unpaired d-electrons that create magnetic ordering. Aluminum's d-orbitals are essentially empty in the valence band. The bonding in iron isn't just a uniform electron sea. It has directional character from the d-electrons that contributes to its higher melting point and different mechanical behavior compared to aluminum.
Get the Full Details
The quantum mechanical treatment gets you closer to reality. Bloch waves describe electron behavior in a periodic potential. The nearly-free electron model and tight-binding approximation give you different pictures depending on the metal. For simple metals like sodium, the nearly-free electron model works well. For transition metals, you need something that accounts for the d-band contribution. Band structure calculations show that the density of states at the Fermi level correlates with properties like thermal conductivity and superconductivity. This isn't decorative theory. It's practical. When I was selecting materials for cryogenic applications, the electronic heat capacity mattered more than the lattice contribution at low temperatures. That comes directly from the density of states at the Fermi level, which comes from the bonding. Here's a practical limitation you need to know: metallic bonding theory doesn't help you predict corrosion behavior. The electron sea model explains why metals conduct and deform. It doesn't explain why iron rusts or why gold doesn't. Corrosion is electrochemistry. The bonding creates the conditions, but the actual degradation mechanism involves oxidation-reduction reactions, passivation layers, and environmental factors. I once saw a project fail because someone assumed that because a metal had strong bonding, it would resist environmental attack. A stainless steel and an aluminum alloy sat side by side in a salt spray chamber. The aluminum corroded faster despite having comparable bond strengths. The difference was the oxide layer. Aluminum forms a passive alumina layer that protects it, but the layer cracked under thermal cycling. The bonding didn't save it. If you're trying to use bonding theory to predict real material performance, you need to combine it with microstructural analysis. X-ray diffraction tells you crystal structure. Electron backscatter diffraction maps grain orientation. Scanning electron microscopy reveals precipitate distribution. The bonding model is the foundation. But the foundation doesn't determine the building.
The electron sea concept is useful. It's just not sufficient on its own. Metallurgy students sometimes treat it as the complete explanation because it's the first model they encounter. It explains cohesion and delocalization. It fails to explain why two metals with similar bonding characteristics can have wildly different strengths, different melting points that don't scale with bond energy the way you'd expect, and different responses to heat treatment. The bonding sets the stage. The crystal structure, defects, and composition write the rest of the story.
