Getting Started With PSoC Design When Nothing Works The Way The Docs Say It Should
I spent three days last November debugging a PSoC 6 power sequence issue that turned out to be completely unrelated to what every forum post suggested. The problem was a single line of code nobody mentions in the official guides. This happens more often than you'd think with these parts. PSoC is Infineon's family of mixed-signal microcontrollers, and if you're coming from ARM vanilla or ESP32, the first thing that hits you is how different the toolchain feels. PSoC Creator is the IDE most people use for the older families, while PSoC 6 uses ModusToolbox now. Both work. Neither is particularly fast to start up. I've run both on machines that cost more than my first car and they still felt sluggish during compilation.
Psoc 2022 Your Guide To Embedded Design Mastering The Blueprint For Modern Devices

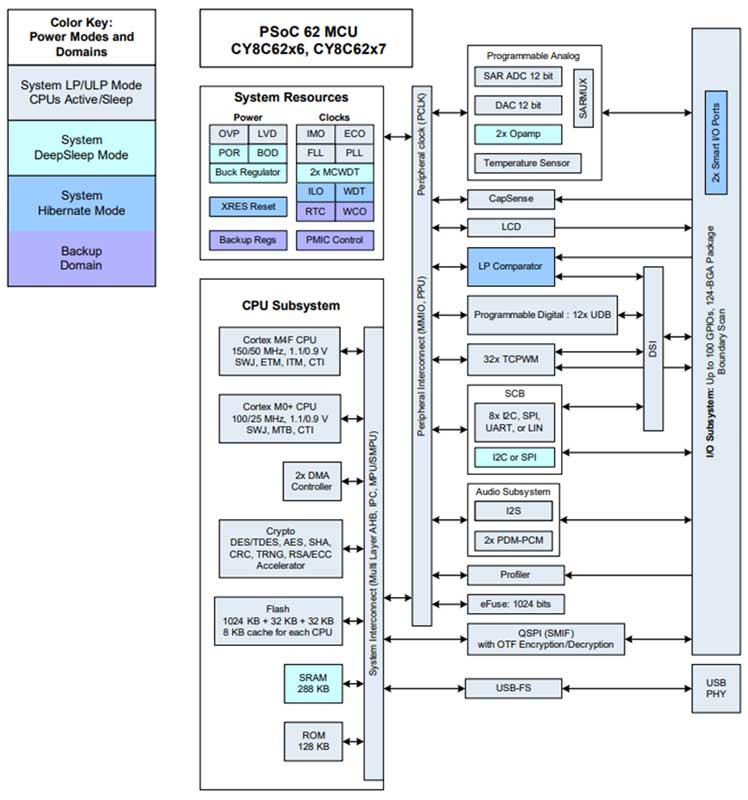

There isn't one single definitive guide called exactly that floating around the web. What exists are various community compilations, Infineon application notes, and third-party tutorials that people have been piecing together since 2020. If you found a specific PDF with that exact title, it's likely a community-curated resource or a training handout from a conference. The core content across all of them covers the same ground though: the architectural layout of the PSoC range, how to configure analog blocks alongside digital logic on the same silicon, and getting the build chain talking to your hardware. Let me explain how the analog-digital coexistence actually works because this is where beginners trip up repeatedly. The PSoC architecture uses what Infineon calls "analog building blocks" — ADCs, DACs, op-amps, comparators, filter circuits — that sit physically inside the chip alongside standard digital peripherals. You configure them through the schematic-based component editor in PSoC Creator or through register-level manipulation in ModusToolbox. The key insight most people miss is that these analog blocks share routing resources with the digital fabric. A poorly placed digital clock signal can inject noise into an adjacent ADC channel. I've seen entire projects fail because someone routed a 50 MHz UART clock directly under a sensitive differential amplifier trace on the PCB without realizing the silicon-level coupling path existed. The practical workflow goes like this. You open the tool, drag an analog component onto your schematic, route the pins, connect digital peripherals the same way, assign physical pins in the Pin Editor, and then generate the generated code. The generator spits out initialization routines for every block you placed. You write your application logic on top. It sounds simpler than it is in practice because the pin assignment step silently conflicts with itself more often than the tool warns you about it.
I ran into a specific edge case with a PSoC 64 project last year that I still think about. I needed a precise 12-bit ADC reading for a pressure sensor, and the datasheet promised sub-millivolt accuracy. The numbers coming back were garbage. I swapped channels, recalibrated, checked the reference voltage, rewrote the sampling code three different ways. Nothing helped. The actual problem was that the digital core was running at 200 MHz and the analog supply rail was sharing a LDO with the Wi-Fi radio, which drew burst currents during transmission. The ADC was seeing the power rail dip every time the radio fired. The fix was routing the analog supply through a separate LC filter network on the PCB and adding a small ceramic bypass cap within two millimeters of the pin. The readings dropped to spec immediately after. Nobody in the documentation connected those two things. Here's something the beginner guides don't emphasize enough. The PSoC 4 family and the PSoC 6 family share the same conceptual toolchain but are fundamentally different chips in ways that matter for production design. PSoC 4 is Cortex-M0 based with a very mature analog block set. PSoC 6 is dual-core Cortex-M4/M0+ with a completely different architecture for how the analog blocks interact with the system. If you're migrating a design from one to the other, do not assume pin compatibility or register-level code reuse. I wasted about two weeks on this mistake when a client asked me to port a PSoC 4 sensor reading project to PSoC 6. The analog blocks worked differently, the clock distribution was different, and the boot sequence required handling the secondary core explicitly. The workaround was starting fresh on the PSoC 6 side with only the conceptual block diagrams carried over, not the code. Another counter-intuitive thing about these chips is how much you can push the analog performance by doing things the datasheet doesn't highlight. The SAR ADC on PSoC 6, for instance, supports multiple sampling phases and you can overlap conversions with computation on the M0+ core while the M4 handles the application logic. This effectively gives you more throughput than the nominal spec sheet suggests, but only if you structure your code to keep both cores busy in staggered phases. Most people write code for a single core and never touch the second one. You're leaving performance on the table without knowing it.
Get the Full Details
The toolchain has real limitations that you need to factor into any timeline. PSoC Creator, which handles PSoC 4, PSoC 5LP, and some older families, hasn't seen a major update in years. It runs on Windows only. If you're on a Mac or Linux, you're using a VM or a dual-boot setup, and that introduces its own set of compilation timing issues. ModusToolbox works on all three desktop OSes but the initial setup is heavy — the package manager downloads several gigabytes, and the Yotta build system it relies on is known to be fragile on fresh installations. I've seen clean installs fail at the package resolution stage three times before succeeding on the fourth attempt. Factor in extra time for toolchain setup if this is your first project. Memory management on PSoC 6 is another area where things get tricky quickly. The dual-core architecture means you have to decide which core owns which memory regions and peripheral blocks. The default linker scripts split things in a reasonable way, but if you're using heavy Bluetooth LE stacks alongside analog sampling, you can easily starve one core of RAM if you don't manually partition the memory map. I learned this the hard way when a BLE gatt server and a high-speed ADC DMA chain collided over the same SRAM bank, causing random data corruption that took me four days to trace back to a memory allocation conflict rather than a software bug. For actual resources and downloads, Infineon's own developer portal at inficon.com/psoc hosts the latest ModusToolbox installer, the PSoC Creator legacy installer, and the component libraries. The technical references and datasheets are freely available there too. Community forums at community.infineon.com have active threads for both PSoC 4 and PSoC 6, though the response time varies widely — sometimes you get a reply from an Infineon engineer within hours, sometimes you wait days for a fellow designer who might suggest the wrong fix entirely. Third-party tutorial sites like Hackster.io and various university lab pages also have project walkthroughs that cover specific use cases, though their quality varies enormously. Look for projects that include full schematic exports and BOMs rather than just the final code.
If your project involves high-frequency analog signals — anything above roughly 100 kHz sampling on the ADC — consider whether a PSoC is actually the right choice or whether you'd be better served by a dedicated data acquisition chip paired with a simpler microcontroller. The PSoC excels at mixed-signal integration at moderate speeds, but the analog performance hits diminishing returns when you push into areas where dedicated instrumentation amplifiers or external SAR ADCs would give you cleaner results with less board-level debugging. I've seen engineers insist on using the onboard analog blocks for high-performance audio work and end up spending more time fighting noise than building the actual product. The bottom line is that PSoC chips are powerful when you understand how the analog and digital worlds interact on the silicon, and frustrating when you don't. The documentation covers the happy path very well. The unhappy path — power rail coupling, memory conflicts between cores, toolchain quirks — tends to be scattered across forum posts, application note footnotes, and things you figure out through failure. Plan for that.
